ASSEMBLY
» Remove batteiy from tractor to fill with acid and charge.
» Fill battery with acid. Fill each cell until it reaches the
bottom of the vent wells. Do not overfill,
» Allow battery to stand and settle for at least thirty
minutes. After standing, check the battery cell acid
level. If below the vent wells, add more acid until the
correct level is reached.
While battery is standing {after adding acid) and later, while
battery is being char ged, continue with assembly of tr actor.
IMPORTANT: TO MAXIMIZE THE LIFE OF YOUR
BATTERY. IT IS NECESSARY THAT THE BATTERY BE
CHARGED BEFORE USE FAILURE TO CHARGE
BATTERY CAN RESULT IN A SHORTENED BATTERY
LIFE,
» Charge battery at a rate of 6 amperes for 1 hour. Use
a 12 volt battery charger. Observe ail safety precau­
tions required for battery charging.
» Check the acid level after the battery is charged, if the
acid has fallen below the correct level, add distilled or
iron free water.
<■ Install the vent caps to cover the vent wells. Wash the
top of the battery with water to remove any acid, then
wipe dry.
•> Check battery case for leakage to make sure that no
damage has occurred in handling.
® Dispose of excess battery acid. Neutralize acid for
disposal by adding it to two gallons of water in a five
gallon plastic container. Stir with a wooden or plastic
paddle while adding baking soda until the addition of
more soda causes no more foaming.
» Follow instructions on how to install battery.

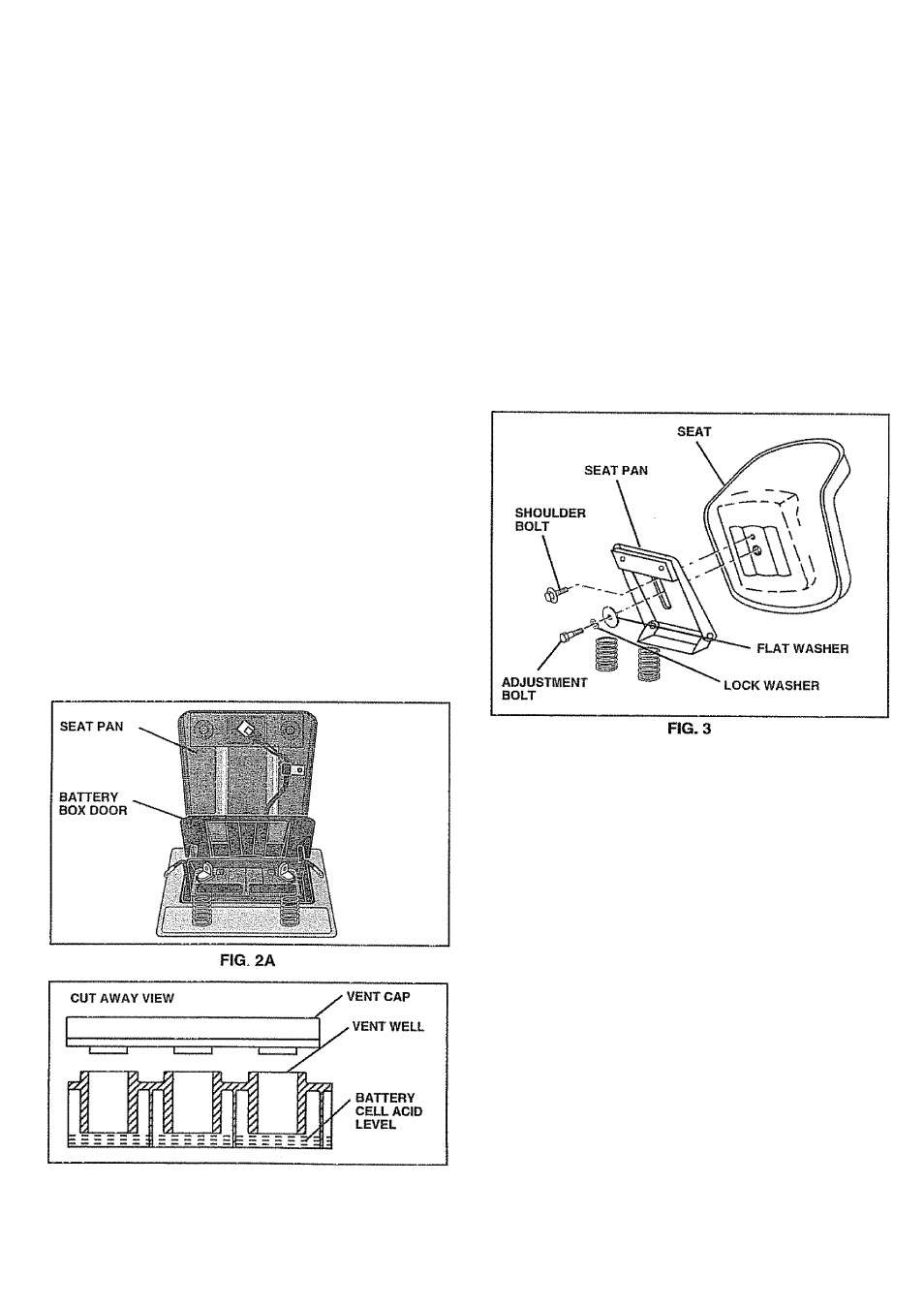

INSmLL SE^ (SeeJFig. 3)^,, , ,, ,.
Adjust seat before tightening adjustment bolt.
» Remove cardboard packing on seat pan.
® Place seat on seat pan and assemble shoulder bolt.
® Assemble adjustment bolt, lock washer and flat washer
loosely. Do not tighten,
® Tighten shoulder bolt securely
» Lower seat into operating position and sit on seat,
® Slide seat until a comfortable position is reached which
allows you to press clutch/brake pedal all the way
down.
° Get off seat without moving its adjusted position.
° Raise seat and tighten adjustment bolt securely ,
FIG. 2B
CHECK TIRE PRESSURE
The tires on your tr actor were overinflated at the factory for
shipping purposes. Correct tire pressure is important for
best cutting performance.
“ Reduce tire pressure to PSI shown in "PRODUCT
SPECiFICATIONS" on page 3 of this manual
CHECK DECK LEVELHESS
For best cutting results, mower housing should be properly
leveled. See ‘TO LEVEL MOWER HOUSING” in the
Service and Adjustments section of this manual.
CHECK FOR PROPER POSITiOH OF ALL
BELTS
See the figures that are shown for replacing motion and
mower blade drive belts in the Service and Adjustments
section of this manual Verify that the belts are routed
correctly.
CHECK BRAKE SYSTEM
After you learn how to operate your tractor, check to see
that the brake is properly adjusted. See ‘TO ADJUST
BRAKE” in the Service and Adjustments section of this
manual.
