CUSTOMER RESPOMSIBiLITIES
TRACTOR, . , ...............
Always observe safety rules when performing any mainte­
nance.
BRAKE OPERATION
If tractor requires more than six (6) feet stopping distance
at high speed in highest gear, then brake must be adjusted.
{See TO ADJUST BRAKE” in the Service and Adjust­
ments section of this manual).
TIRES
» Maintain proper air pressure in ail tires (See “PROD­
UCT SPECIFICATIONS" on page 3 of this manual).
0 Keep tires free of gasoline, oil, or insect control chemi­
cals which can harm rubber .
» Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage,
BLADE CARE
For best results mower blades must be kept sharp. Re­
place bent or damaged blades.

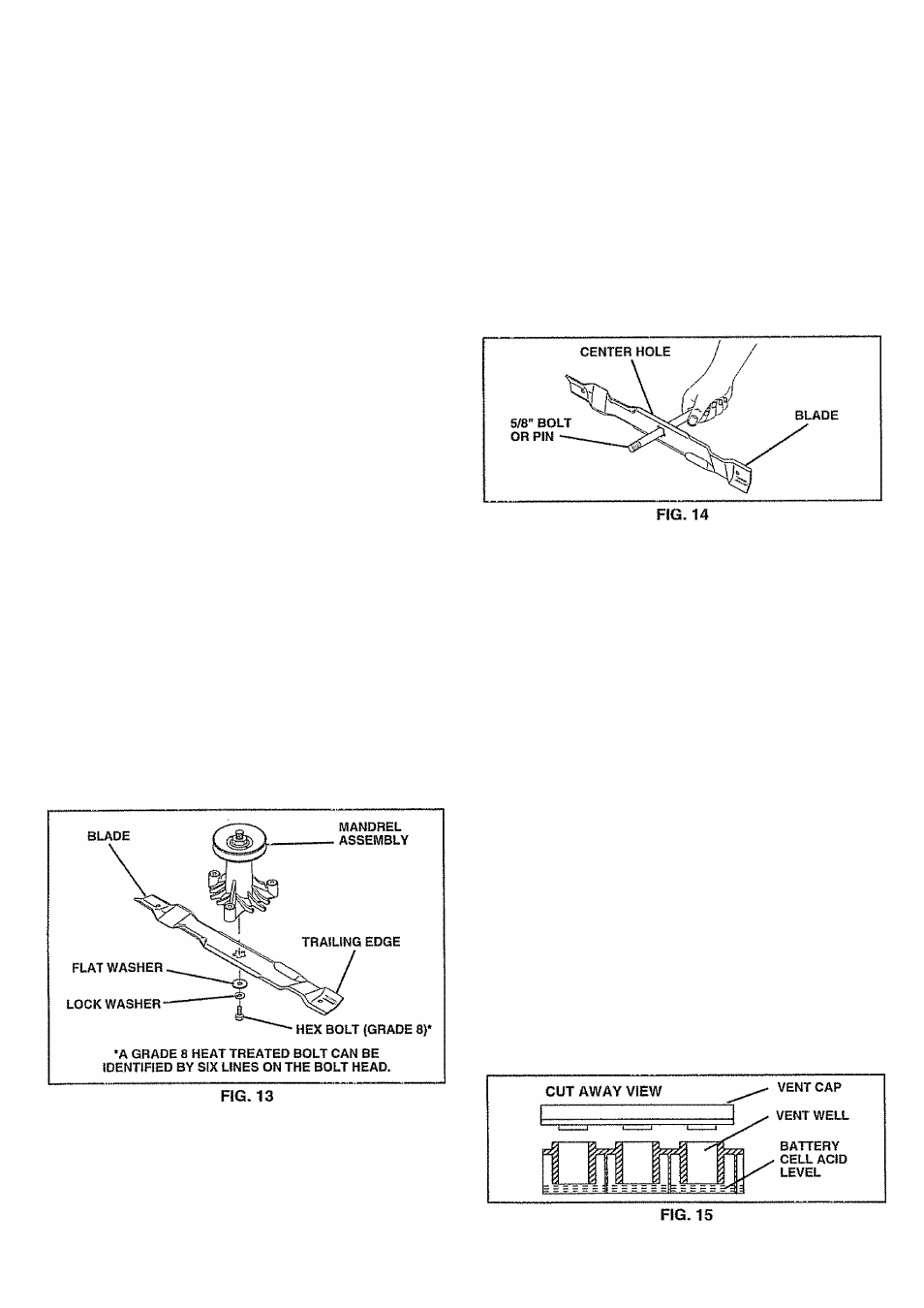

BLADE REMOVAL (See Fig. 13)
» Raise mower to highest position to allow access to
blades.
» Remove hex bolt, lock washer and flat washer securing
blade.
® Install new or resharpened blade with trailing edge up
towards deck as shown.
• Reassemble hex bolt, lock washer and flat washer in
exact order as shown.
» Tighten bolt securely (30-35 Ft. Lbs. torque).
IMPORTANT: BLADE BOLT IS GRADES HEATTREATED
NOTE: We do not recommend sharpening blade - but if you
do, be sure the blade is balanced.
TO SHARPEN BLADE (See Fig. 14)
Care should be taken to keep the blade balanced. An
unbalanced blade will cause excessive vibration and even­
tual damage to mower and engine.
“ The blade can be shar pened with a file or on a grinding
wheel. Do not attempt to sharpen while on the mower.
° To check blade balance, you will need a 5/8" diameter
steel bolt, pin, or a cone baiancer. (When tisihg a cone
balancer, foliow the instructions supplied with bal­
ancer.)
» Slide blade on to an unthreaded portion of the steel bolt
or pin and hold the bolt or pin parallel with the ground.
If blade is balanced, it should remain in a horizontal
position. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced,
NOTE: Do not use a nail for balancing blade. The lobes of
the center hole may appear to be centered, but are not.
BATTERY (See Fig. 15)
Your tractor has a battery charging system which is suffi­
cient for normal use. However, periodic charging of the
battery with an automotive charger will extend its life.
» Acid solution level in each battery cell should be even
with bottoms of vent wells. Add only distilled or iron free
water if necessary. Do not overfill.
® Keep battery and terminals clean.
» Keep battery bolts tight.
“ Keep vent caps tight and small vent holes in caps open.
- Recharge at 6 amperes for 1 hour.
TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt oh the battery and terminals can cause
the battery to “leak" power.
» Remove terminal guard.
» Disconnect BLACK battery cable first then RED bat­
tery cable and remove battery from tractor.
» Wash battery with solution of four tablespoons of
baking soda to one gallon of water. Be careful not to get
the soda solution into the cells,
® Rinse the battery with plain water and dry.
» Clean terminals and battery cable ends with wire brush
until bright.
0 Coat terminals with grease or petroleum jelly.
» Reinstall battery (See “INSTALL BATTERr in the
Assembly section of this manual).
