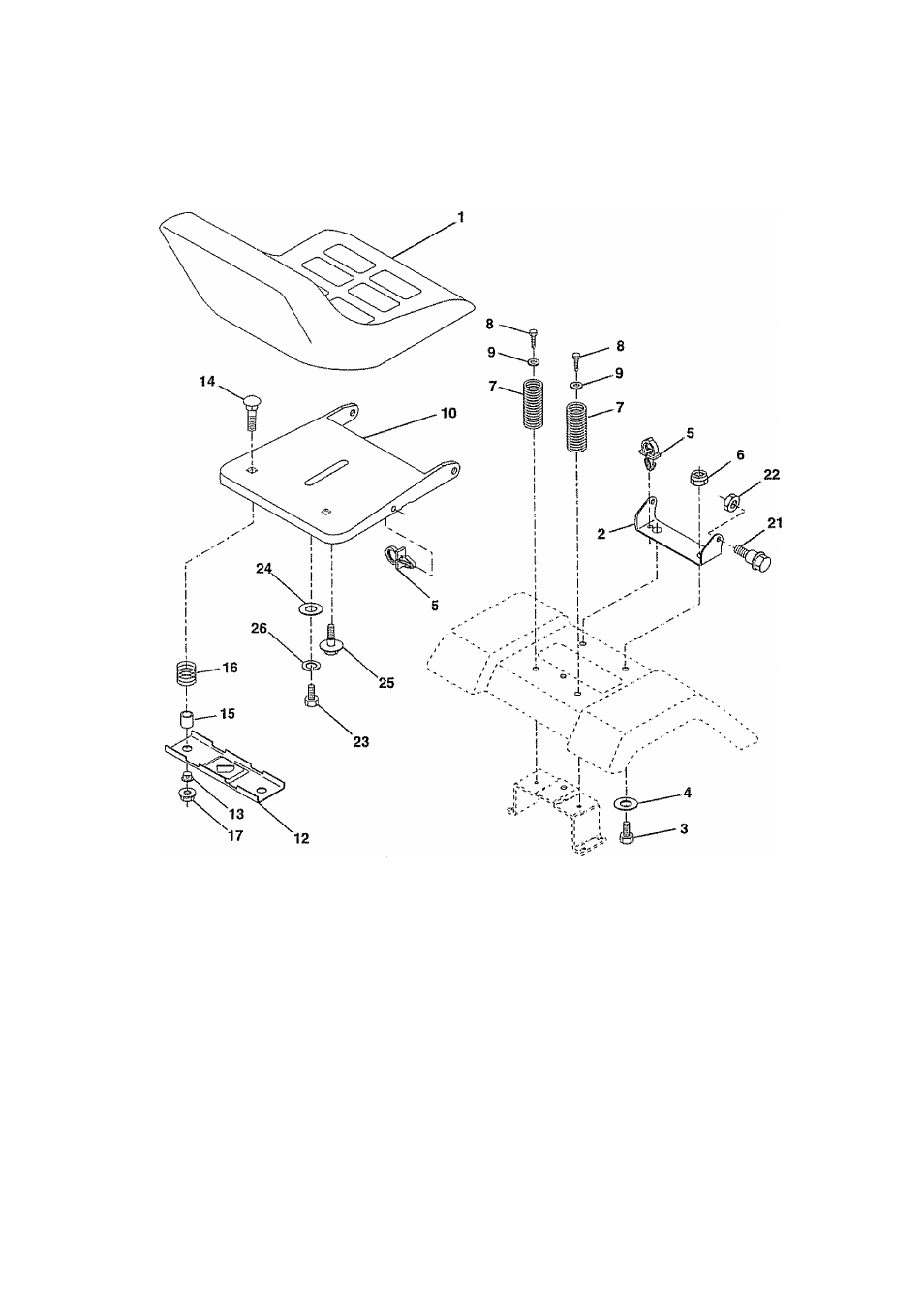

SEAT ASSEMBLY
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.257552
KEY
PART
NO.
NO.
DESCRIPTION
1
140123
Seat
2
140551
Bracket, Pivot, Seat
3
STD523710
Bolt
4
19131610
Washer 13/32 x 1 x 10 Gauge
5
145006
Clip, Push-In Hinged
6
STD541437
Nut
7
124181X
Spring, Seat
8
17490616
Screw, Thd., Roll. 3/8-16x1
9
19131614
Washer 13/32 x 1 x 14 Gauge
10
140552
Pan, Seat
12
121246X
Bracket, Switch Mounting
13
121248X
Bushing, Snap
14
72050411
Bolt. Carriage 1/4-20x1-3/8
KEY PART
NO. NO.
15 134300
16 121250X
17 123976X
21 139888
22 STD541431
23 74780814
24 19171912
25 127018X
26 STD551150
DESCRIPTION
Spacer, Split .28
X
.88
Spring
Locknut, Flange 1/4 Grade 5
Bolt, Shoulder 5/16*18 UNC
Nut
Bolt, Hex Head, Fin.
1/2-13x7/8 Grade 5
Washer 17/32 x 1 -3/16 x 12 Gauge
Bolt, Shoulder 5/16-18x.62
Washer, Lock
NOTE: All component dimensions given in U.S. Inches
1 inch = 25.4 mm
