ASSEMBLY

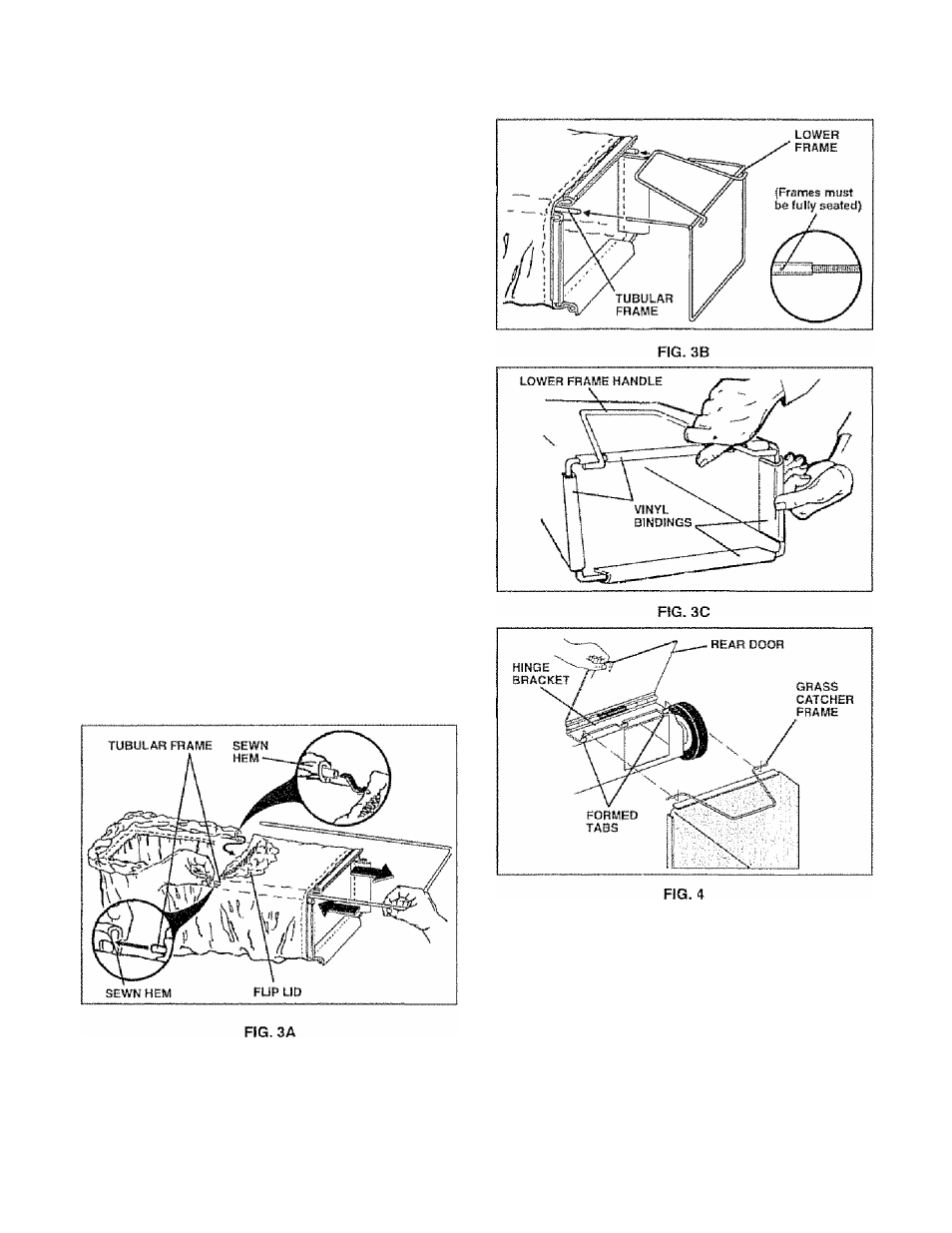

TO ASSEMBLE AND ATTACH GRASS

CATCHER (See Figs. 3A thru 4)

Insert leg of tubular frame through front opening of

grass catcher and thread frame into sewn hem of bag.

MOTE: Keep bag hem gathered on the straight leg of the

tubular frame

When frame comes out the other end of sewn hem,

Immediately work the end of frame down inside the bag
as shown in inset.

Slide sewn hem evenly around the tubular frame until
both ends of frame are exposed out of the front open­
ing.

Assemble tower frame to tubuiarframe as shown. Be

sure handle is outside of bag and frames are fully
seated as shown in inset

Slip vinyl bindings over frame.

NOTE: If viny! bindings are too stiff, hold them in warm
water for a few minutes If bag gets wet, let it dry before
using.

Close the flip lid, Flip lid must be closed while operating
lawn mower

lift the rear door on the mower housing and piece the
grass catcher frame onto the formed tabs on the rear
door hinge bracket.

The grass catcher Is secured to the lawn mower

housing when the rear door is lowered onto the grass
catcher frame..

A

CAUTION: Do not run your lawrs mower
without clipping deflector or approved
grass catcher in place. Never attempt

to operate the lawn mower with the rear
door removed or propped open.
