CRAFTSMAN 4-CYCLE ENGINE

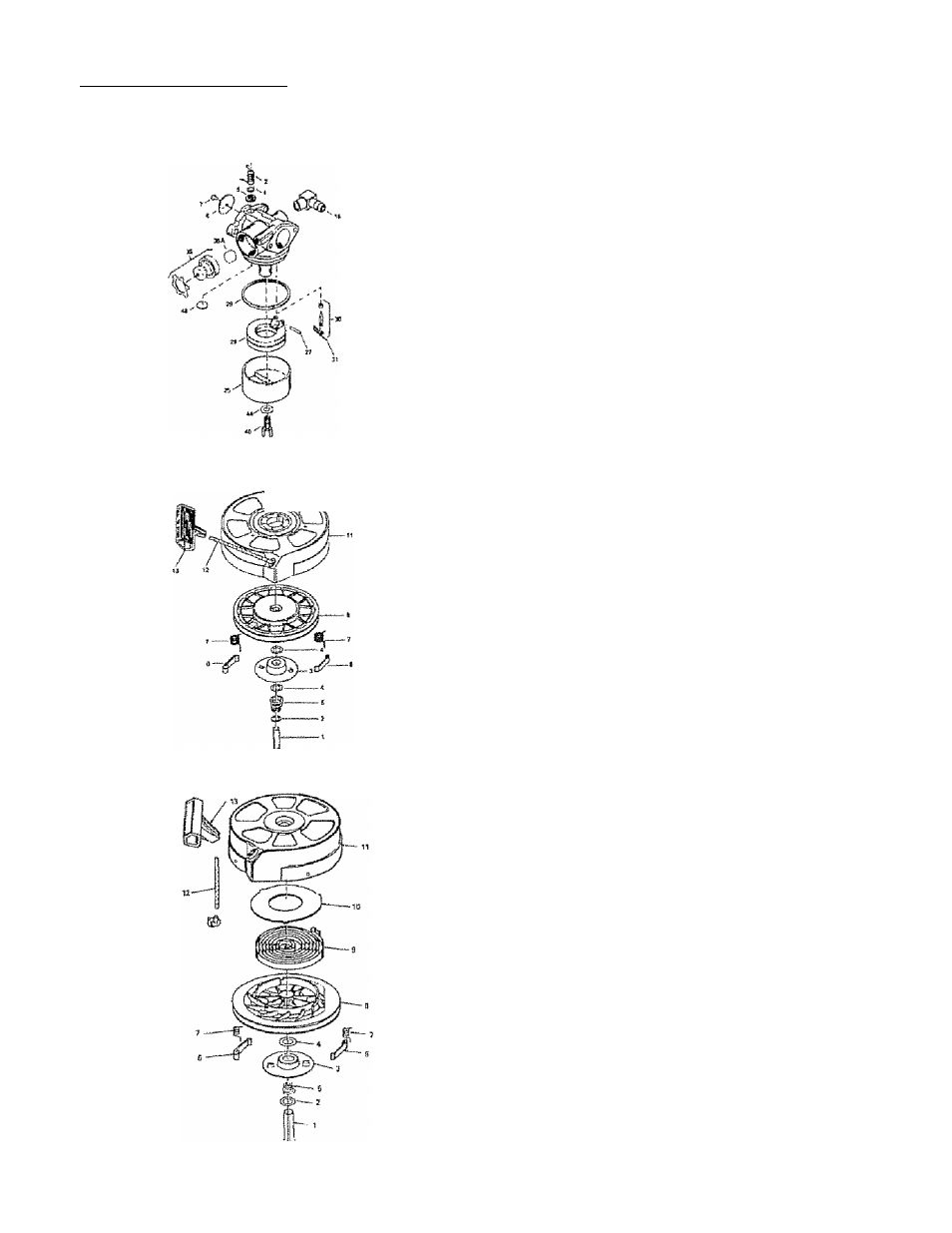

CARBURETOR NO. 632681
REF PART
NO. NO.
- - 632681
1
2
4
5
6
031615
631767
031184
631183
7 650506
16 631775
25 631867
27 631024
28 632019
29 631028
30 631021
31 631022
35 632694
35A 632647
40 632682
44 27110
48 B31027
MODEL NUMBER 143.955500
description
Carburetor, Complete (Includes
Ref- #184 of Engine Paris List)
Throttle Shaft and Lever Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal, Throttle
Throttle Shutter
Shutter Screw
Fuel Fitting
Float Bowl
Float Shaft
Float
Float Bowl 0“Ring
Inlet Needle, Seat and Clip
(Includes Reference Number 31)
Spring Clip
Primer Bulb/Retainer Ring
Primer Bulb Fitter
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Atmospheric Vent
REWIND STARTER NO. 590702
REF PART
NO. NO.
590702
590599A
590600
590696
590601
590697
590698
590699
a 590700
11 590703
1
2
3
4
5
6
7
12 590535
13 S9Q701
DESCRIPTION
Recoil Starter, Complete
Spring Pin (Includes Reference #4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley & Rewind Spring Assembly
Starter Housing Assembly
(40 Degree Grommet)
Starter Rope (98" Long, 9/64‘‘ Dìa )
Starter Handle
NOTE:
All component dimensions given in U,S, inches
1 inch = 25,4 tnm
REWIND STARTER NO. 590637
REF PART
NO. NO.
DESCRIPTION
.. -,
590637
Recoil Starter
1
590S99A
Spring Pin (Includes Reference #4)
2
590600
Washer
3
590515
Retainer
4
590601
Washer
5
590598
Brake Spring
6
S90616
Starter Dog
7
590B17
Dog Spring
8
59061 BA
Pulley Assembly (Includes
Reference Numbers 9 and 10)
9
590619
Rewind Spring
10
590S20
Spring Cover
11
590638
Starter Housing Assembly
(40 Degree Grommet)
12
590535
Starter Rope (98" Long, 9/64" Dia.)
13
590452
Starter Handle
NOTE:
Al! component dimensions given in U S, Inches
1 inch = 25.4 mm
