SERVICE
AND ADJUSTMENTS
A
CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
♦
Release control bar,
*
Make sure the blade and all moving parts have completely stopped.
•
Disconnect spark plug wire from spark plug and place where it cannot come
in contact vyith plug.
lAWN MOWER
TO ADJUST CUTTING HEIGHT
See 'TO ADJUST CUTTING HEIGHT" in the Operation
section of this manual
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your fawn mower, is provided to minimize She possibility
that objects will be thrown out the rear of the lawn mower
into the operator's mowing position. If the rear defSector
becomes damaged, it should be rapiaced,

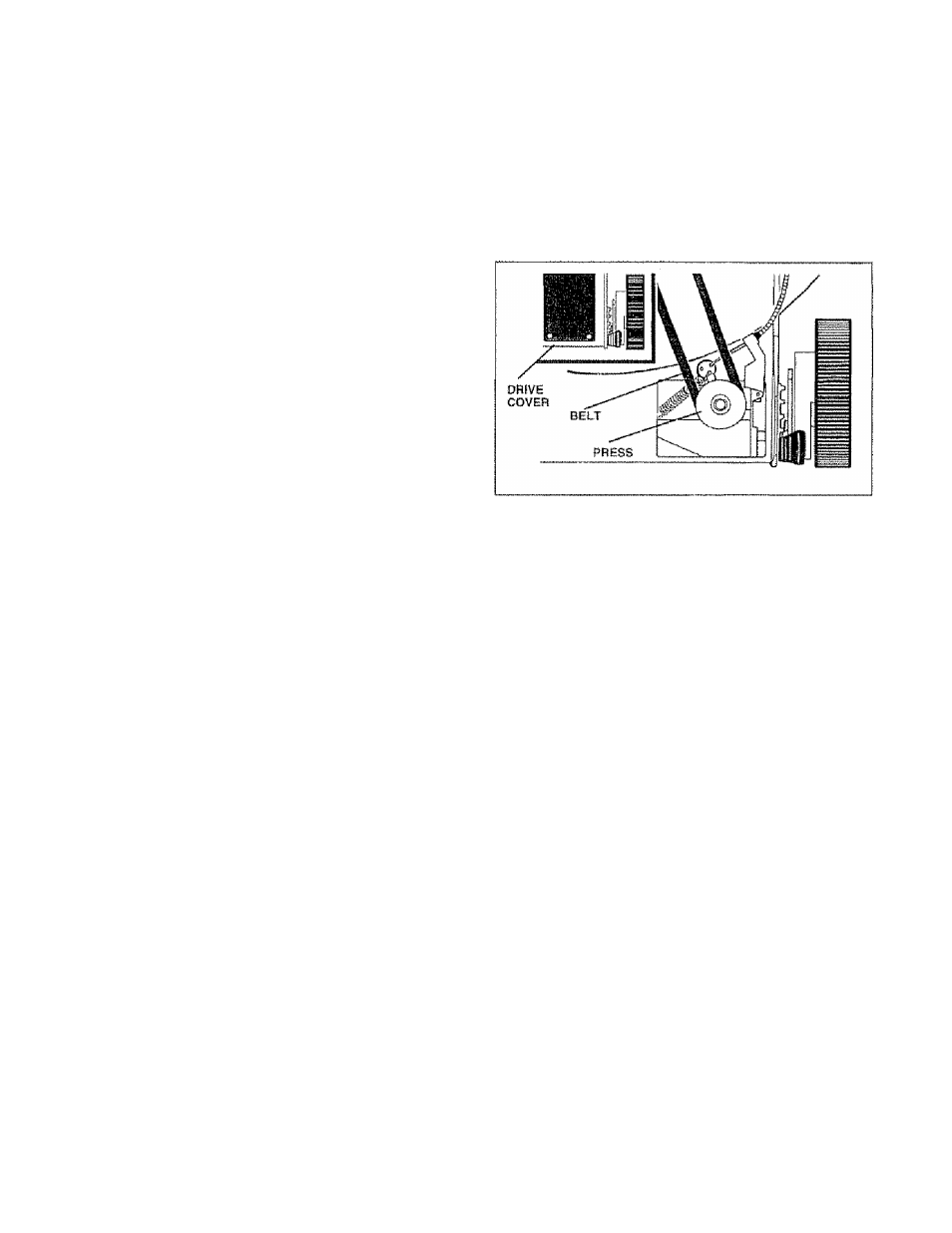

TO REMOVE/REPLACE DRIVE BELT
(See Fig. 15)
•
Remove drive cover. Remove beltby pushing down on
gear case pulley,
•
Turn lawn mower oh its side with carburetor and fuel
cap up.
•
Remove blade
•
Remove debris shield.
•
Remove bell from engine pulley on crankshaft
•
Install new bell by reversing above steps.
•
Always use factory approved belt to assure fit and long
life.
FIG, 15
15
