ASSEMBLY

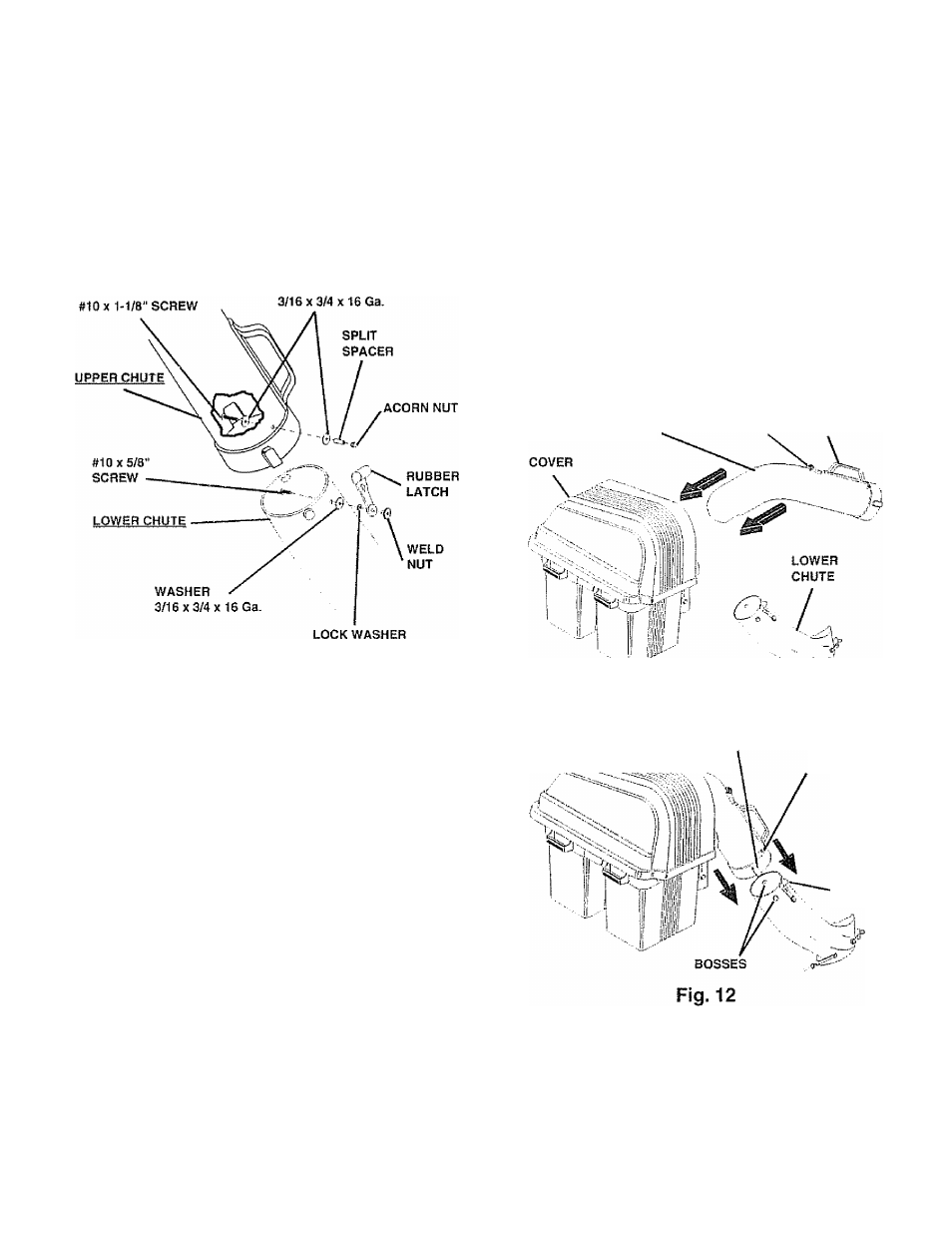

8 CHUTE LATCH ASSEMBLY
{See Fig. 10)
Use Hardware - - GROUP "E & F"
Assemble latch pin to upper chute, as shown.
Assemble rubber latch to lower chute, as shown.
Tighten all hardware securely.
WASHERS
Fig. 10
9
UPPER CHUTE {See Fig. 11 &12)
No hardware required
« Lower mower deck to its lowest cutting position
» Assemble upper chute by inserting curved end into
hole in back of cover.
NOTE; Handle carefully so as not to damage full bagger
indicator.
o Push in and turn upper chute until it is in line with lower
chute.
" Align the bosses on lowerchute with alignment slots on
upper chute and slide together.
• Secure with rubber latch by hooking hole in latch over
latch pin.
FULL BAGGER
UPPER indicator handle
CHUTE nHi'iui.c
Fig.11
ALIGNMENT
SLOT
LATCH PIN
RUBBER
LATCH
10
LEVEL MOWER DECK
No hardware required
Be sure deck is properly leveled for best mower perfor­
mance See your tractors owner's manual for instruc­
tions
