ASSEMBLY
CONTENTS OF SHIPPING CARTON
1 - 9 inch Edger completely assembled except tor the
control rod, handles and wheels.
1 - Control Rod
1 - Owner’s Manual (Not Shown)
1 - Parts Bag
TOOLS REQUIRED FOR ASSEMBLY
2 - 3/8 inch Wrenches (or adjustable wrenches)
2 - 1/2 inch Wrenches (or adjustable wrenches)
1 - Pair Pliers
‘

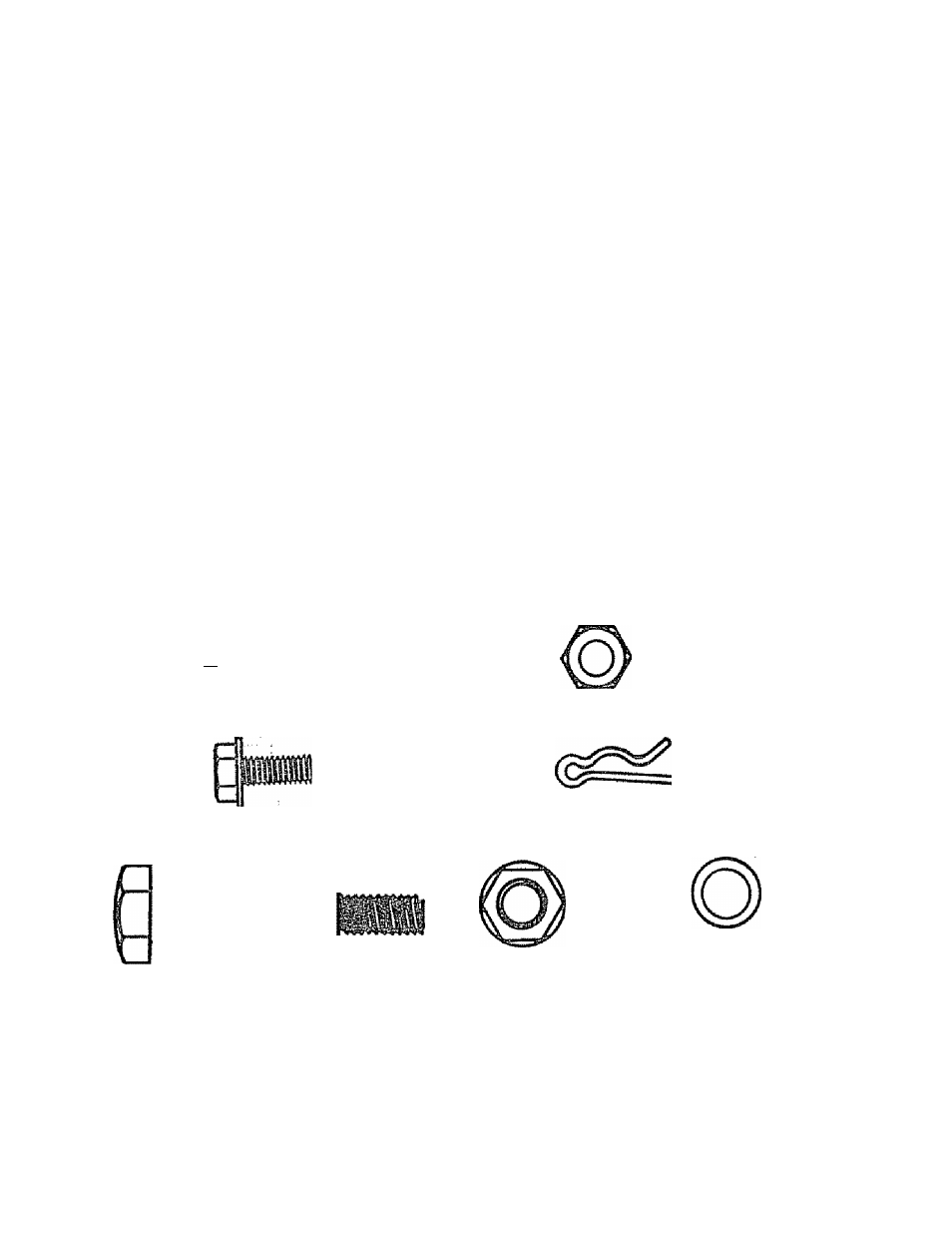

CONTENTS OF PARTS BAG (shown actual size)
■ 1,
-«iiAJLlgl
2 - 5/16-1S X 1-1/2 inch
Hex Head Screws
6 - 5/16-18 Hex Nels
4-S/1S-13
X
5/8 inch Hex
Head Wide Flange Screws
3 - 3/8-16
X
1.390 Inch
Shoulder Bolls
2 - Hair Pins
3 - 3/B-16 Hex Head
Wide Flange Locknuts
2 - Spacers
