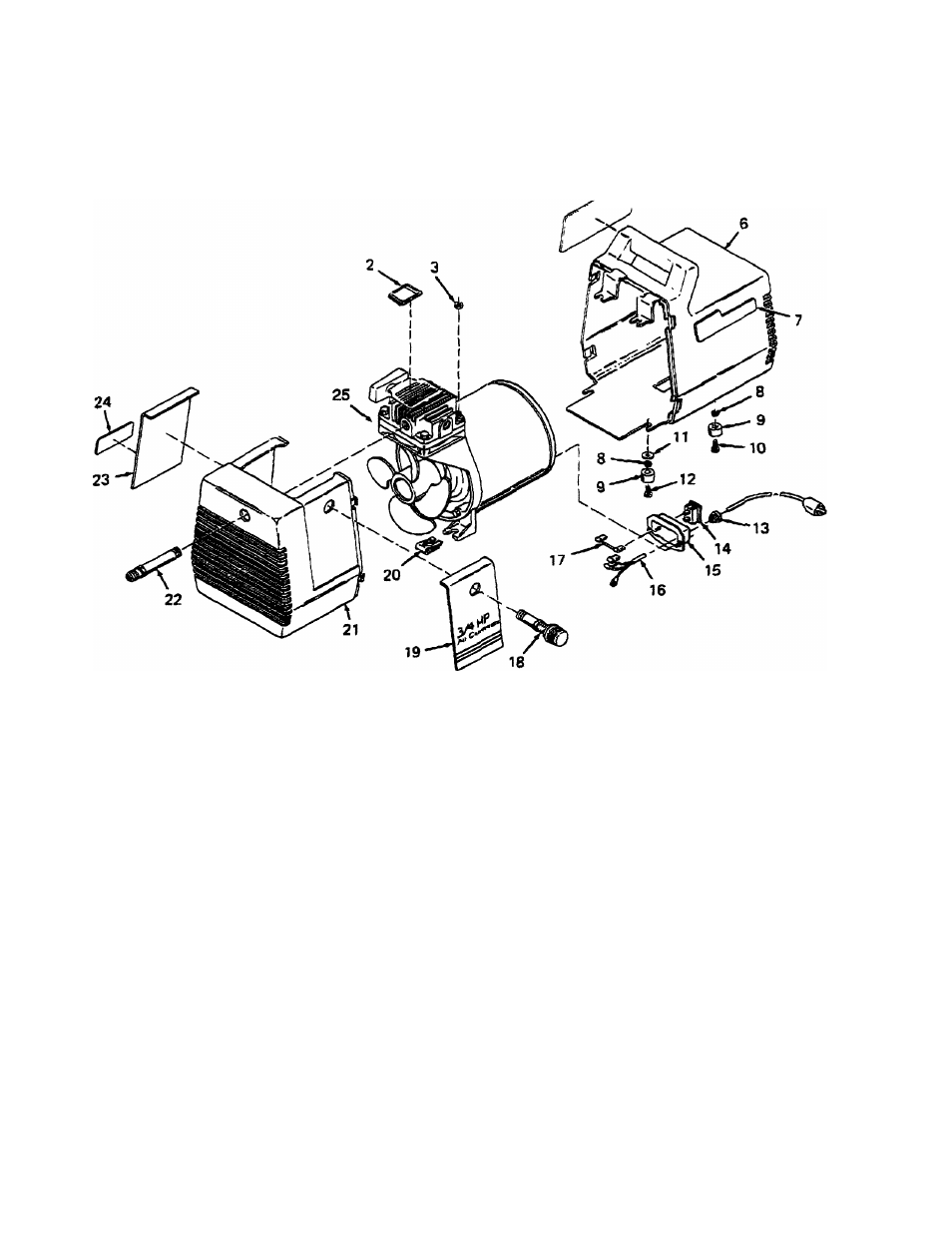

AIR COMPRESSOR DIAGRAM
s
PARTS LIST
KEY
KEY
NO.
RART NUMBER
DEscnnmoN
NO.
MRT NUMBER
DESCRIFTION
1
—
Not used
13
SSW-7367
Strain relief
2
LA-1536
l4ot surfeee label
14
SSS-16
Switch
3
SSF-8129-ZN
Locknut V4”-20 (2 used)
IS
CAC-348-1
Ibrminal box cover
4
—
Not used
16
CAC-4232
Cord assembly
5
LA-1760-1
Warning l^el
17
CAC-4231
Jumper wire
6
CAC-4259
Rear shroud assembly
18
T1A-4378
AdJustaUe pressure valve
7
—
Sears logo label -
19
LA-1787
Performance label
not available
20
SSF-8131
Speed nut (3 used)
8
SSW-7428
Eyetet (3 used)
21
CAC-352
Shroud - front
9
SST5309
RecMS bumper (3 used)
22
H-2102
Adapter
10
STD610807
Screw #8
ABx%
LG
23
LA-1786
Maintenance label
11
SSN-53
Flat washer (2 used)
24
LA-1789
Model No. label
12
STD610810
Screw #8
AB X
1 LG
25
—
Compressor as^mbfy -
(2 used)
Not availatde
