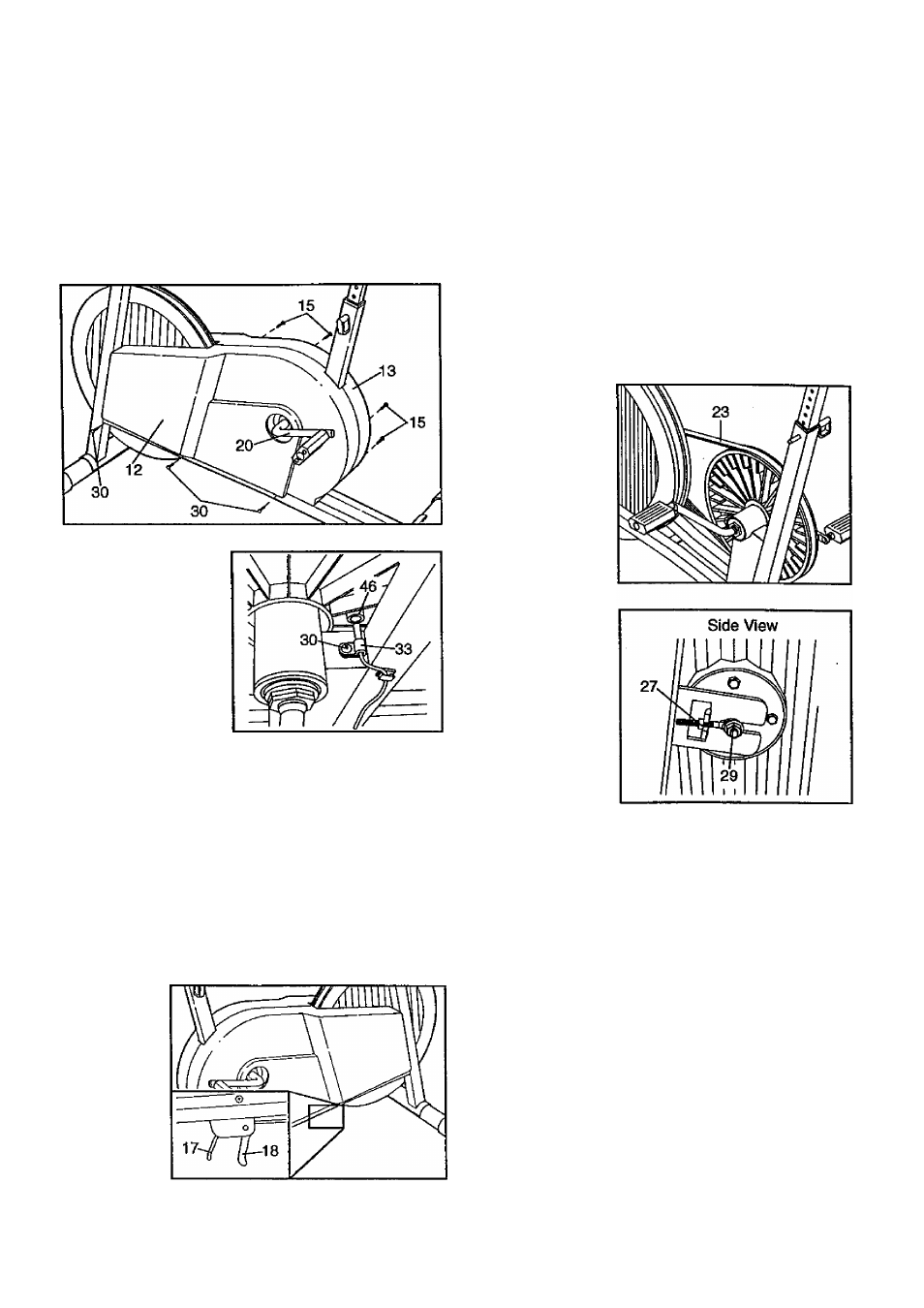

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the
reed switch should be adjusted. In order to adjust the

reed switch, the Left Side Shield (12) must be remov­
ed. Remove the four Side Shield Screws (15) from the

Right Side Shield (13) and the three M4 x 16mm

Tapping Screws (30) from the bottom of the Left Side

Shield. Carefully slide the Left Side Shield forward off

the arm of the Crank (20) and remove it.

Next, locate the
Reed Switch (33).

Turn the crank until
the Magnet (46) is

aligned with the

Reed Switch.
Loosen but do not

remove the M4 x

16mm Screw (30).

Slide the Reed
Switch slightly clos­

er to or away from the Magnet. Retighten the Screw.

Turn, the crank for a moment. Repeat until the console

displays correct feedback. When the Reed Switch is
correctly adjusted, reattach the left side shield.

HOW TO ADJUST THE RESISTANCE STRAP

If there is not enough pedaling resistance when the
resistance knob is turned to the highest setting, the
Resistance Strap (17) may need to be adjusted.

To adjust the Resistance Strap, first turn the resis­
tance knob

to the low­

est setting.

Next, locate

and open
the Strap

Buckle (18)

on the

underside
of the side
shields.
Grip the

end of the Resistance Strap (17) and pull it back
slightly to remove any slack. While holding the end of

the Resistance Strap, fully close the Strap Buckle.

Turn the crank for a moment to make sure that there

is not too much resistance.

HOW TO ADJUST THE DRIVE BELT

The exercise cycle features a drive belt that must be

kept property adjusted. If the belt causes excessive
noise or slips as you pedal, the belt should be
checked. To do this, the side shields must first be

removed. Refer to the instructions on this page and

remove the left side shield. Next, remove the right

side shield the same way.

Press down on

the center of the

Drive Belt (23)

between the front
and rear pulleys.
There should be
from 1/4” to 1/2”

of movement in
the center of the

Belt.

If the drive belt is

properly adjust­
ed, reattach the

side shields. If

the Belt needs to

be adjusted,
loosen the Axle

Nut (29) on each

side of the fly­
wheel. To tighten

the Belt, turn the
Adjustment Nuts

(27) clockwise: to loosen the Belt, turn the Adjustment
Nuts counterclockwise. Make sure that the Flywheel is

straight and tighten the Axle Nuts (29). Reattach the
side shields.
