ASSEMBLY
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed. Assembly requires the included alien wrench
a Phillips screwdriver ■, and two adjustable wrenches cr———

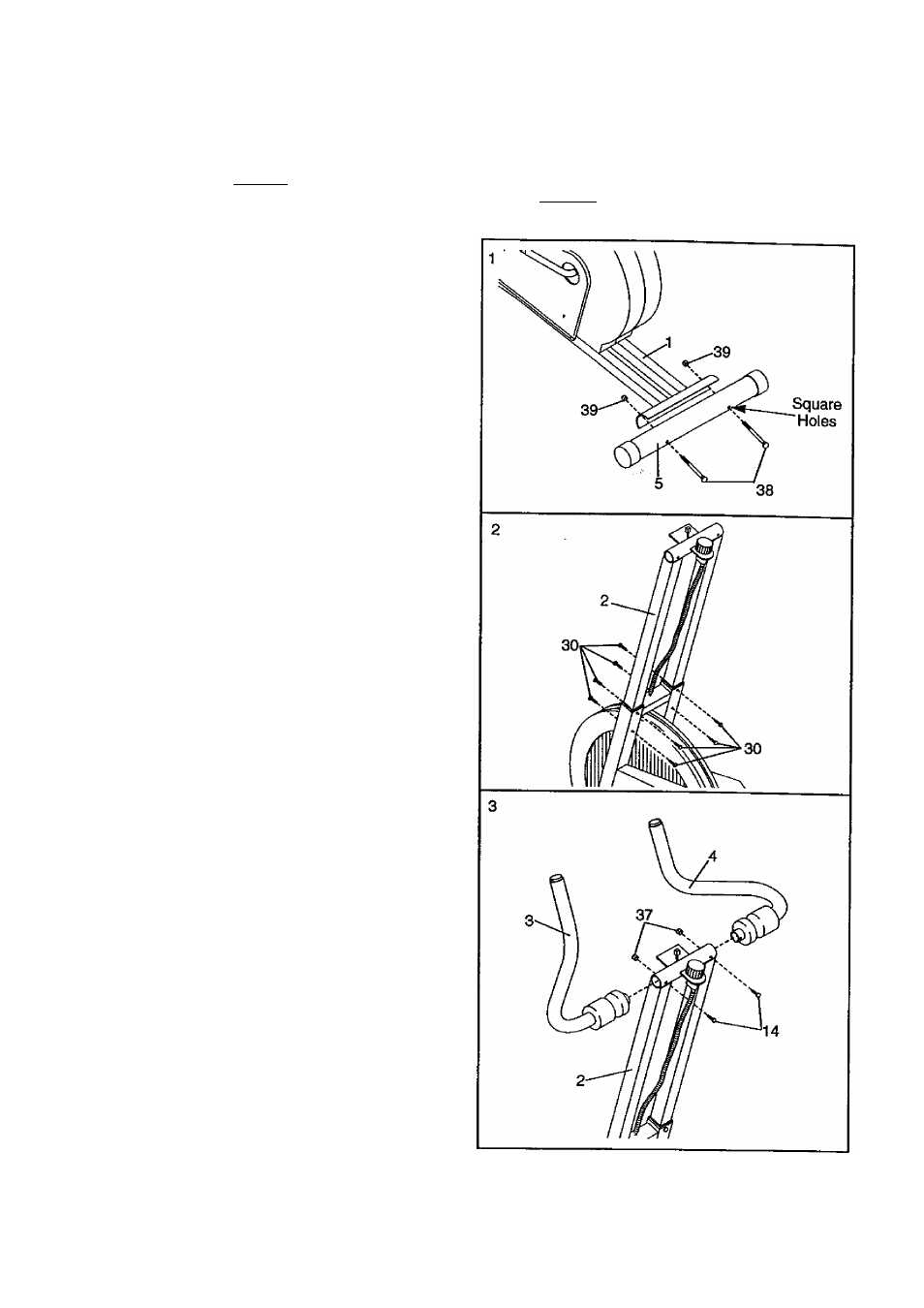

1. Hold one of the Stabllizeis (5) against the Frame
(1), with the square holes facing away from the
Frame. Attach the Stabilizer with two M8 x 65mm
Carriage Bolts (38) and two M8 Nylon Locknuts
(39).
Attach the other Stabilizer (not shown) in the same
manner.
2. Carefully slide the Handlebar Post (2) up and into
place as shown. Secure it with eight M4 x 16mm
Tapping Screws (30).
3. Slide the bottom of the Left Handlebar (3) into the
Handlebar Post (2). Be sure that the holes in the
Handlebar and the Handlebar Post line up. Attach
the Handlebar with two M6 x 34mm Button Head
Bolts (14) and two M6 Nylon Locknuts (37).
Attach the Right Handlebar (4) in the same manner.
