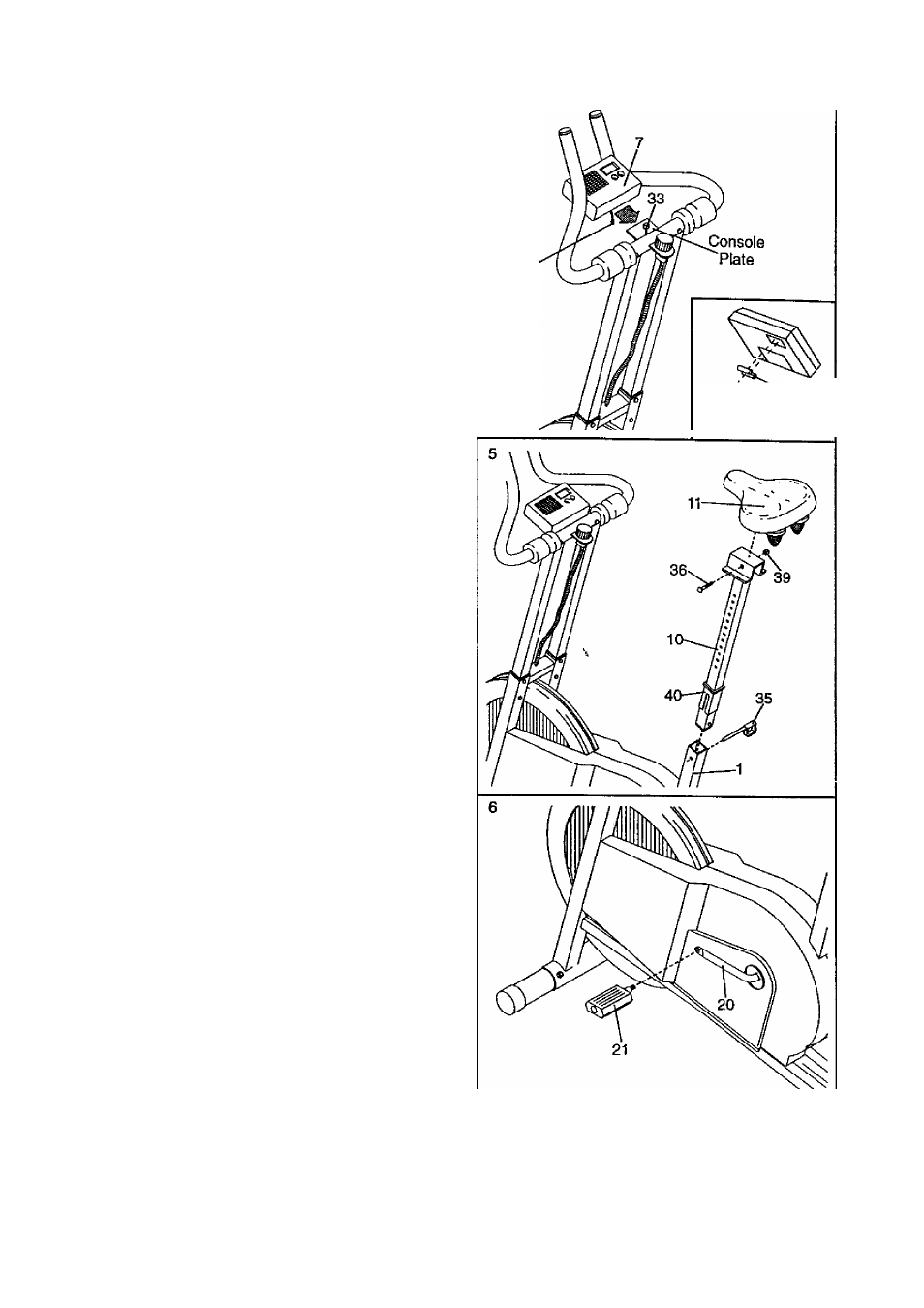

4. The Console (7) requires two "AA* batteries (not
included). Alkaline batteries are recommended.
Refer to the inset drawing. Remove the battery door
from the Console. Press two batteries into the bat­
tery compartment. Make sure that the negative
ends of the batteries (marked are touching
the springs in the battery compartment. Reattach
the battery door.
Connect the console wire to the Reed Switch Wire
(33).
Slide the Console (7) onto the console plate. Note:
The Console attaches by friction; it does not snap
into place.
Insert the Seat Post (10) into the Frame (1). Press
the Frame Bushing (40) into the Frame. Align one of
the holes in the Seat Post with the hole in the
Frame. Insert the Seat Pin (35) through the Frame
and the Seat Post to select the desired seat height.
Make sure to insert the Seat Pin through one of
the holes in the Seat Post; do not insert the Seat
Pin under the Seat Post.
Next, attach the Seat (11) to the Seat Post (10) with
one M8 X 50mm Carriage Bolt (36) and one M8
Nylon Locknut (39).
6. Identify the Left Pedal (21). (The Left Pedal is
marked with an “L.") Using an adjustable wrench,
tighten the Left Pedal counterclockwise into the left
arm of the Crank (20).
Tighten the Right Pedal (not shown) clockwise into
the Right arm on the Crank.
Console
Wire
^ Batteries
Battery Door
7. Make sure that all parts are properly tightened before you use the exercise cycle.
