DECALS
REPAIR PARTS

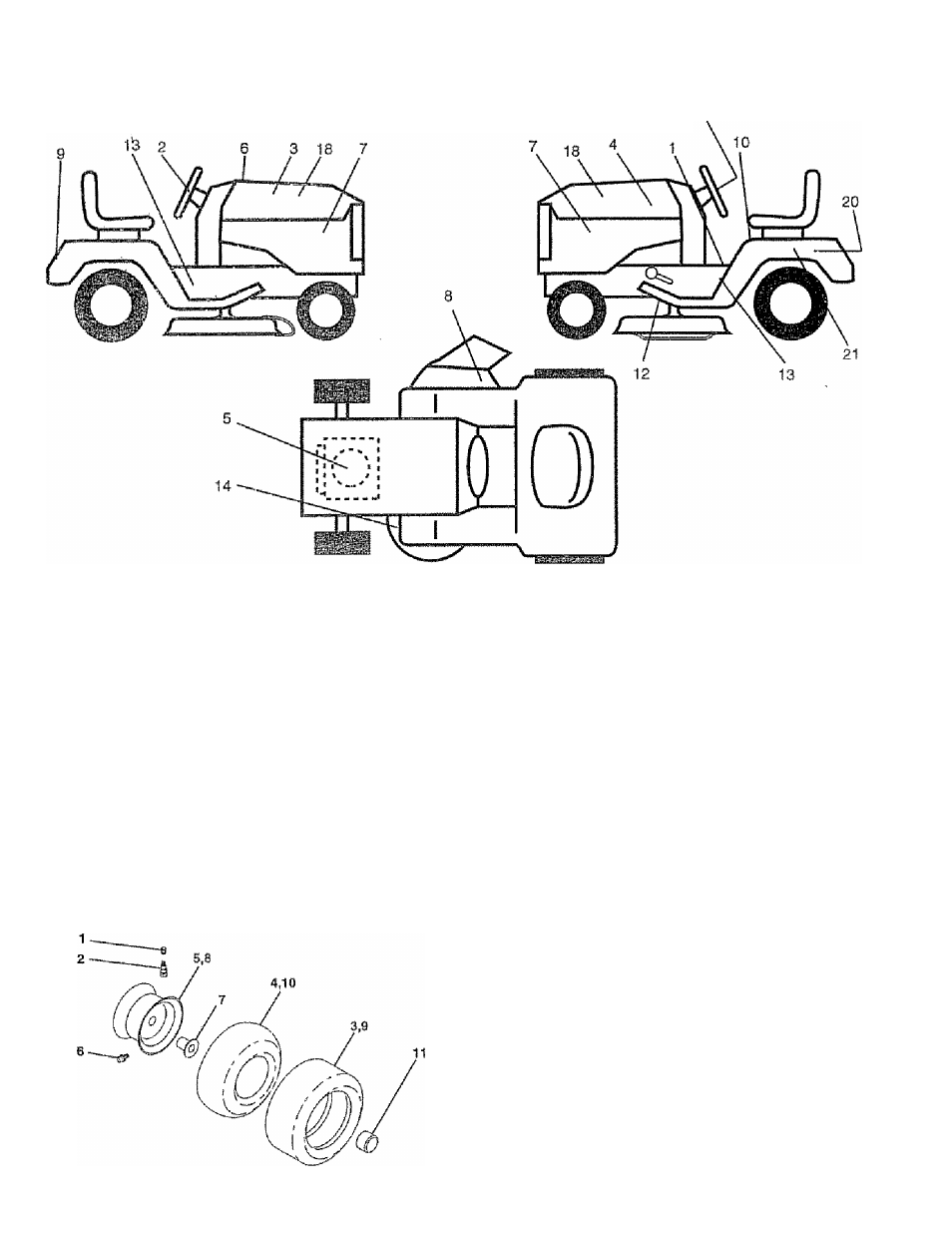

TRACTOR - - MODEL NUMBER 917,258542
KEY
NO. PART
NO.
DESCRIPTION
KIEV
NO.
PART
NO.
DESCRIPTION
1 156368 Decal, Oper. Instr, 12 146046 Decal, V-Belt Drive Schematic
2 150333 Decal, Cap Cnsmr Help Lins 13 147139 Decal, Chassis, 6 Speed/42"
3 151299 Decal, Hood, R.H. 14 136832 ■Decal, V-Beit Schematic
4 151300 Decal, Hood, L.H. 18 151301 Decal, Ins, Hood
5 12-113-64 Decal, HP, Engine 20 149516 Decal Battery Dngr/Psn Eng
5 133644 Decal, Customer Maintenance 21 138047 Decal, Battery Diehard Sears
7 149407 Decal, Side Panel . - 138311 Decal, Lift Handle
a 156787 Decal, Deck Mower EZ3 , » 154515 Pad Footrest LH STLT
9 146709 Decal, Fender, Craftsman 154516 Pad Footrest RH STLT
11 146710 Decal, Ins Whl Strg Auto Srs Gold 160474 Owner's Manual, English
10 156439 Decal, Fender Danger - - 160475 Owner's Manual, Spanish
WHEELS â TIRES
KEY PART
NO. NO.
59192
65139
106222X
59904
1
2
3
4
DESCRIPTION
Valve Cap, Tire
Stem, Valve
Tire, Front
Tube, Front Tire
(Not Provided, Service Item Only)
5 106732X427 Rim, Front
6 278H Fitting, Grease (Front Wheel Only)
7 9040H Bearing, Flange (Front Wheel Only)
8 106108X427 Rim, Rear
9 122082X Tire, Rear
10 7152J Tube, Rear Tire
(Not Provided, Service Item Only)
11 104757X Cap, Axle
.. 144334 Sealant, Tire 10 oz.
NOTE: All component dimensions given in U.S inches
1 inch = 25.4 mm
