OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER’S WIANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustratlonswithyotirtractortotamiliarize yourself with the locations of various controls and adjustments. Save
this manual for future reference.

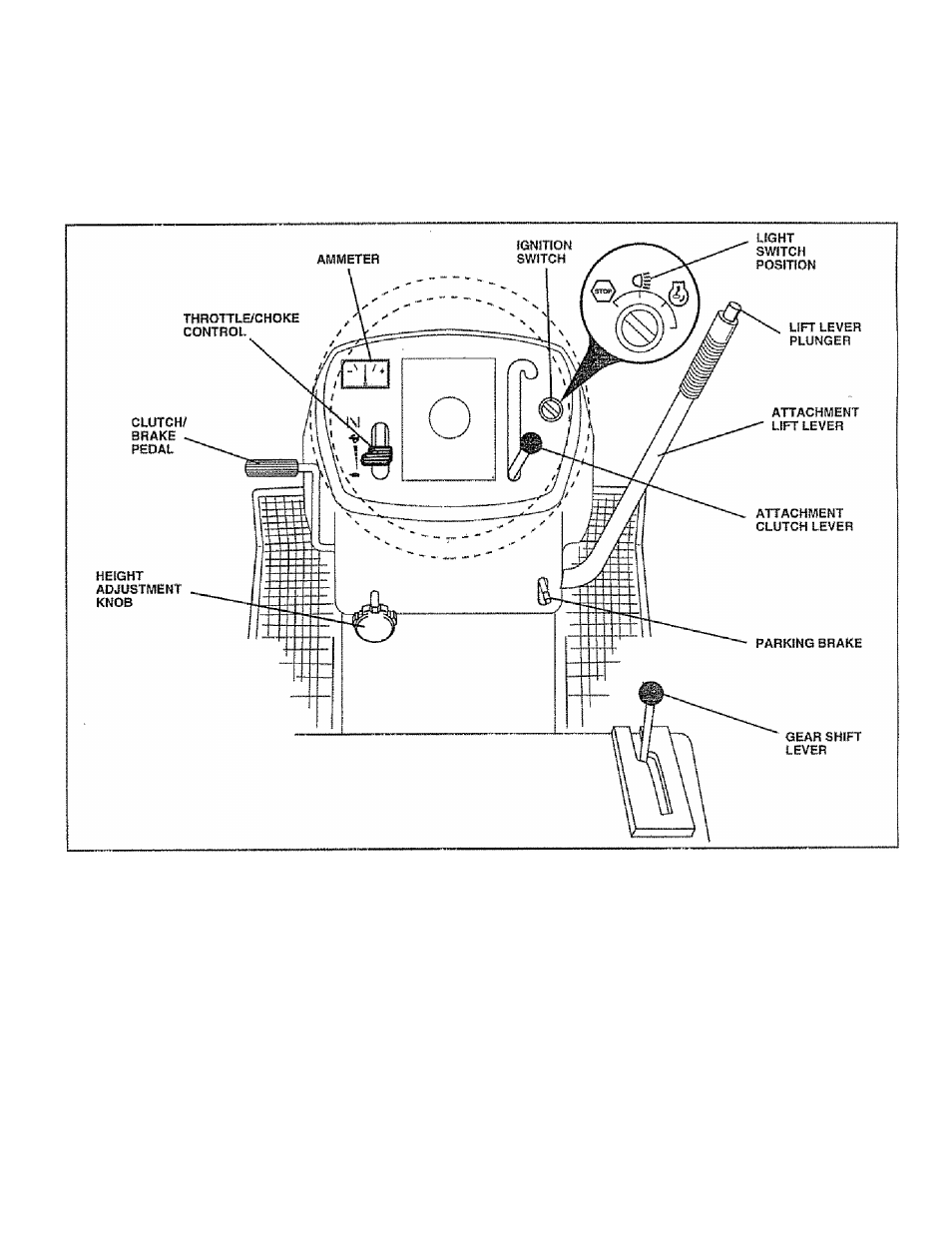

FIG 3

Our tractors conform to the safety standards of the American National Standards institute.

ATTACHMENT CLUTCH LEVER: Used to engage the
mower blades, or other attachments mounted to your
tractor,

LIGHT SWITCH: Turns the headlights on and off.

THROTTLE/CHOKE CONTROL: Used to control engine

CLUTCH/BRAKE PEDAL: Used tor declutching and brak
ing the tractor and starting the engine.

PARKING BRAKE: Locks ciutch/brake peda! into the

brake position.

GEAR SHIFT LEVER - Selects the speed and direction of
the tractor.

ATTACHMENT LIFT LEVER: Used to raise and lower the
mower deck or other attachments mounted to your

tractor

LIFT LEVER PLUNGER: Used to release attachment lift
lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the
engine.

HEIGHT ADJUSTMENT KNOB; Used to adjust the mower
cutting height.

AMMETER: indicates battery charging (+) or discharging
{-)■
