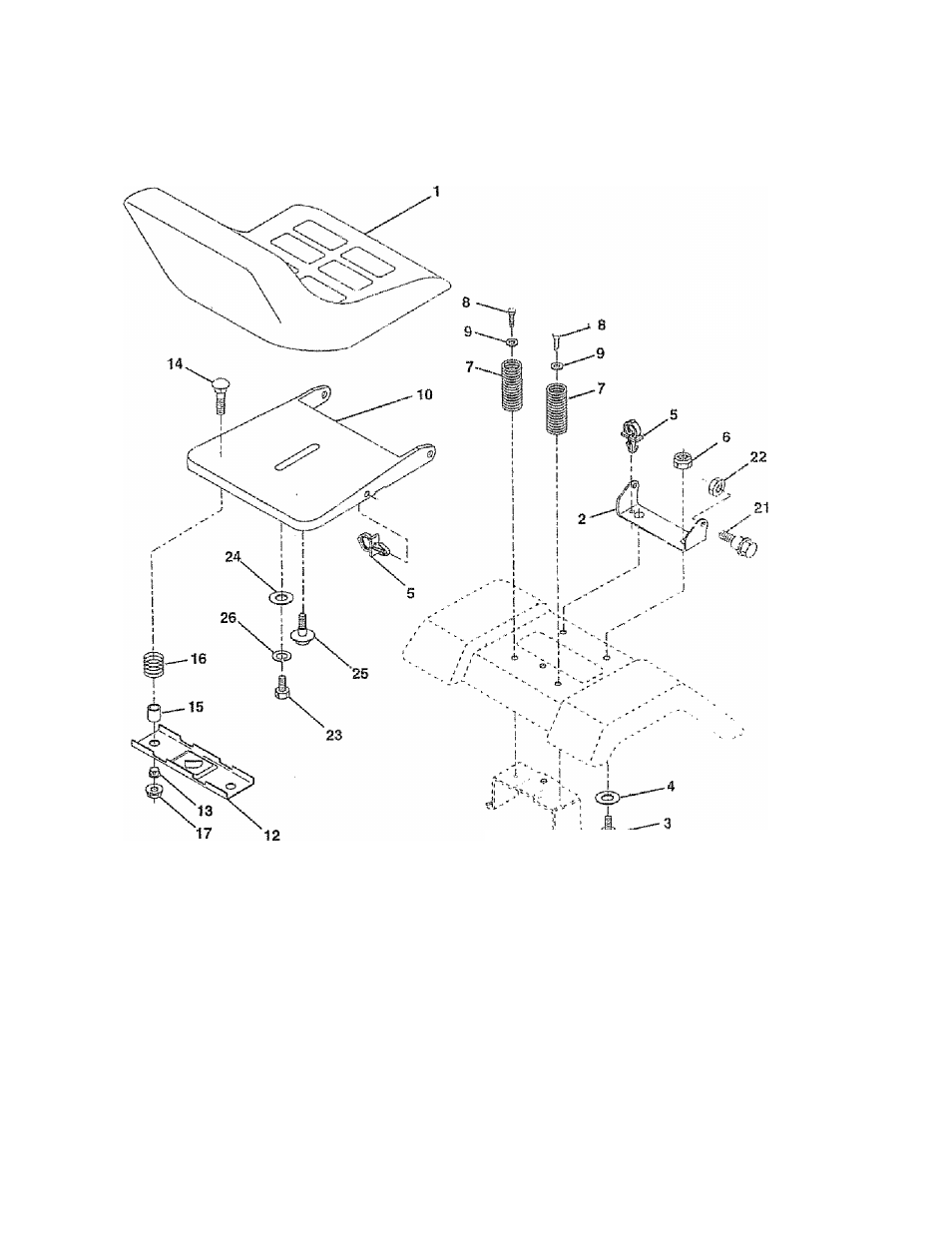

SEAT ASSEMBLY
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.^5854^
KEY
PART
NO.
NO.
1
140123
2
140551
3
STD523710
4
19131610
5
145006
6
STD541437
7
124181X
8
17490616
9
19131614
10
12
121246X
13
121248X
14
72050411
DESCRIPTION
Seat
Bracket, Pivot, Seat
Boll
Washer 13/32 x 1 x 10 Gauge
Clip, Push-In Hinged
Nut
Spring, Seat
Screw, Thd, Roll. 3/8-16x1
Washer 13/32 x 1 x 14 Gauge
Pan, Seat Emboss QCK Conn,
Bracket, Switch Mounting
Bushing. Snap
Bolt, Carriage 1/4-20 x 1-3/8
j^gY
PART
NO.
NO.
15
134300
16
121250X
17
123976X
21
1
^
1
i.
.3
22
STD541431
23
74780814
24
19171912
25
127018X
26
STD551150
D
escription
spader, Split .28 X ,88
Spring ,
y, j r-
Locknut, Fiahge 1/4 Grade 5
Bolt, Shoulder 5/16-18 UNO
Nut
Belt, Hex Head, Fin.
1/2-13
X
WS Grad6 5
waaher
17/32 x 1-3/16 x 12 Gauge
Bolt, Shoulder 5/16-18
X
,62
Washer, Lock
NOTE: A!i Gomppilent dimensions given in U.S. inches
1 inch = 25.4 mm
