KENMORE 30” SELF-CLEANING GAS RANGE-MODEL NUMBER
9 1 1 . 3 6 5 1 1 9 0

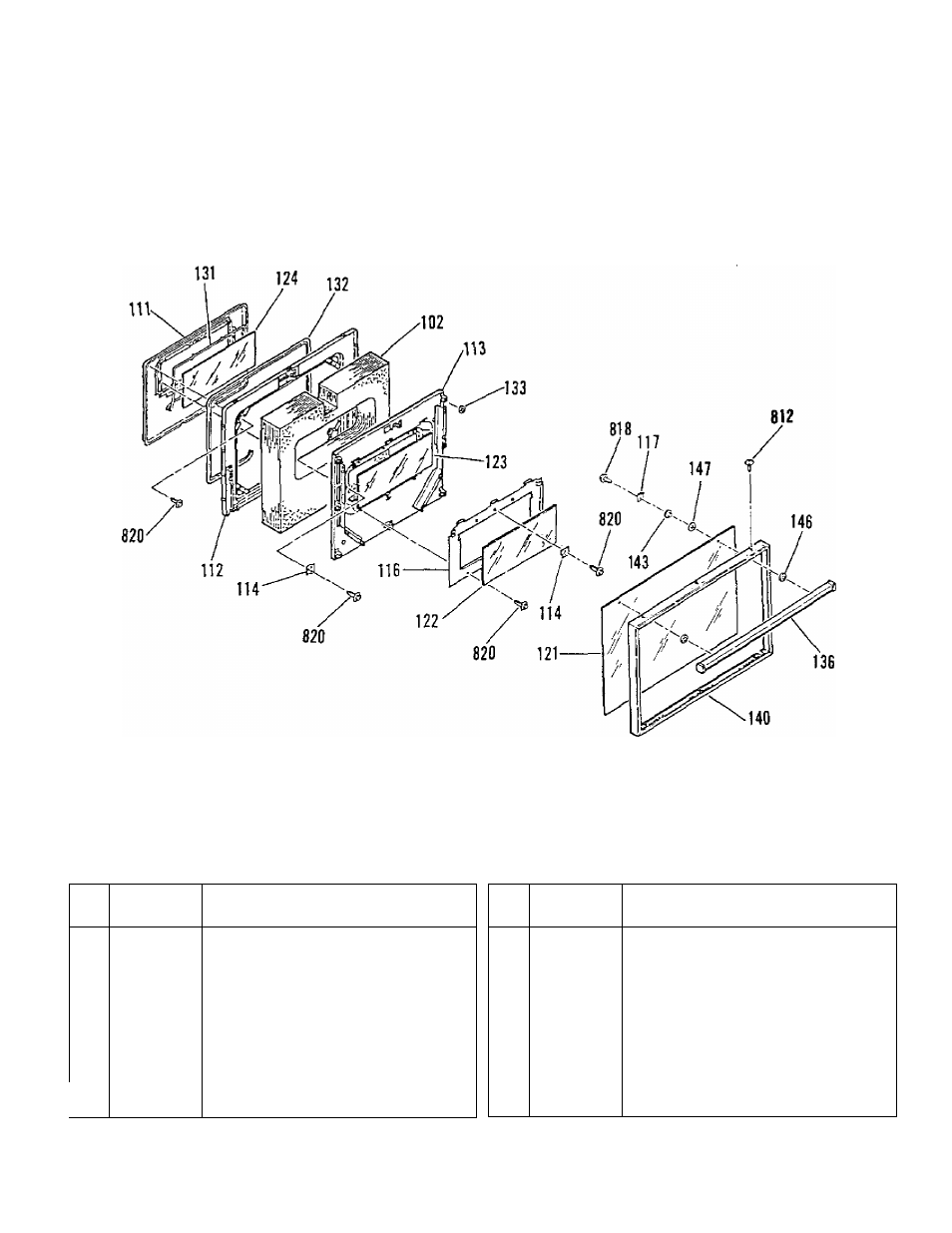

ILLUSTRATION AND PARTS LIST FOR OVEN DOOR SECTION
KEY
NO.
PART
NO.
DESCRIPTION
102
335782
Insulation
111
331555
Plug
112
344427
Lining
113
338326
Insulation Retainer
114
345646
Retainer
116
328615
Glass Mounting Plate
117
341060
Glass Retainer
121
332067
Outer Glass
122
326088
Intermediate Glass
123
338108
Center Glass
124
342332
Inner Glass
KEY
NO.
PART
NO.
DESCRIPTION
131
302935
Inner Glass Seal
132
292244
Gasket
133
335945
Felt Washer '
136
332452
Handle
140
337765
Frame
143
333015
Glass Spacer
146
107158
Handle Spacer
147
333014
Washer
812
331704
Screw 10-32x5/8"
818
15 "19965
Screw 10-32x3/4"
820
343720
Screw 10-32x7/16"
