KENMORE 30" SELF-CLEANING GAS RANGE-MODEL NUMBER
9 1 1 . 3 6 5 1 1 9 0

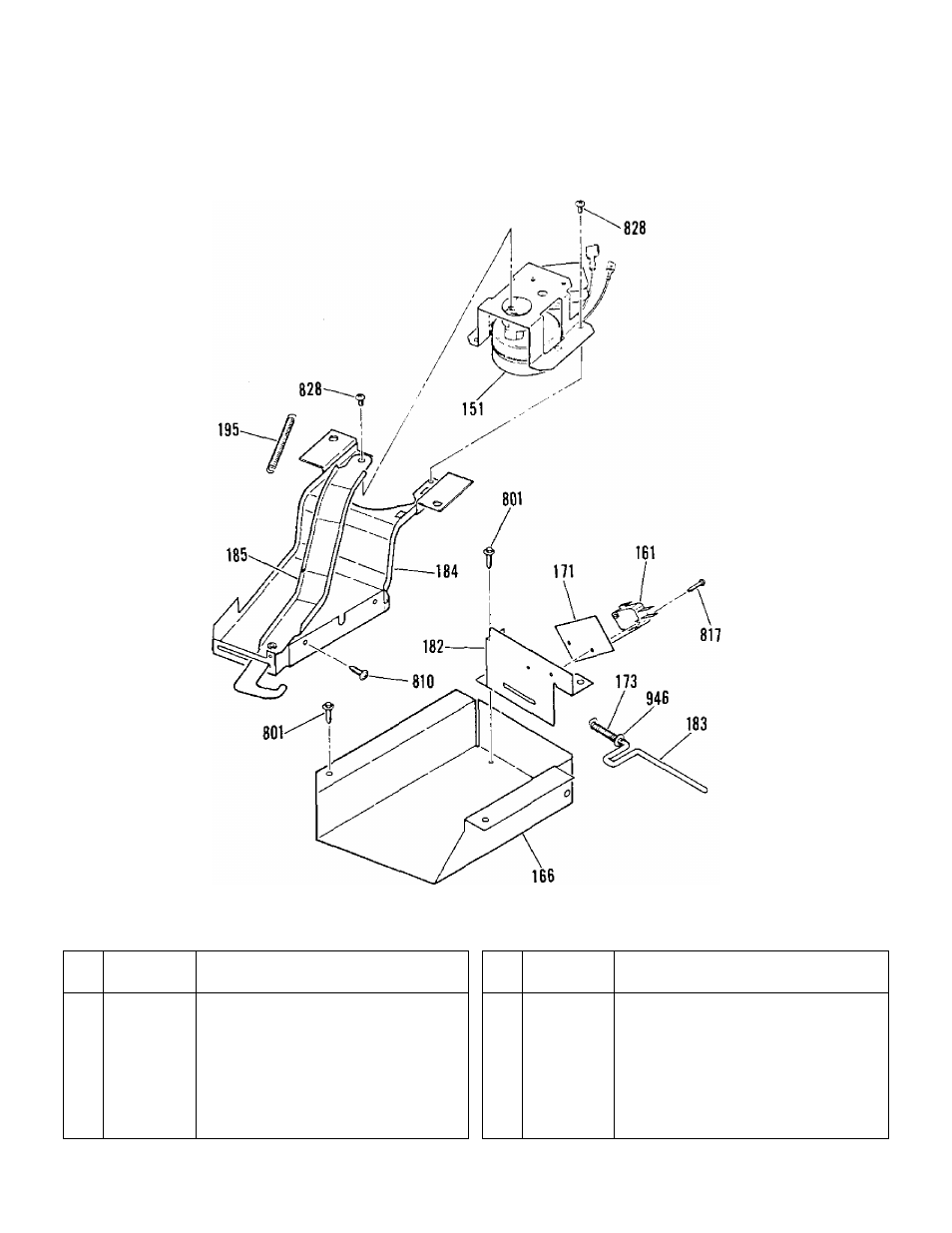

ILLUSTRATION AND PARTS LIST FOR DOOR LOCK SECTION
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
151
336910
Lock Motor Asm
185
337971
Lock Lever Asm
161
334078
Micro Switch
195
337933
Lock Spring
166
337485
Lock Box
801
346950
Screw 10-16x7/16"
171
329171
Insulator
810
102428
Screw 10-32x17/32"
173
337834
Spring
817
338318
Screw 4ABx3/4"
182
343239
Door Switch Bracket
828
97217
Screw 8-32x3/8"
183
337771
Switch Actuator Pin
946
335039
Washer
184
337937
Door Lock Plate
SLOCKOIOB
10-4-90
