KENMORE 30" SELF-CLEANING GAS RANGE-MODEL NUMBER
9 1 1 . 3 6 5 1 1 9 0
PARTS LIST FOR OVEN BODY SECTION
KEY
NO.
PART
NO.
DESCRIPTION
140
340356
Front Panel Frame
201
337039
Oven Body
202
336341
Front Frame
203
346115
Main Back
204
338189
Storage Drawer
208
338159
Heat Baffle
210
335231
Oven Bottom
211
328959
Insulation Retainer (Lt. orRt.)
212
331144
Lower Insulation Retainer
214
327781
Flue Box
215
345654
Flue Deflector
216
327809
Wire Shield
219
343851
Wire Shield
220
346204
Flue Deflector Shield
221
341640
Body Side (Lt. or Rt.)
222
340377
Storage Door Front Panel
224
343952
Spacer
225
336510
Insulation
226
332205
Storage Door Handle
231
329147
Insulation-Oven Top and Sides (1 Piece)
232
329146
Insulation-Oven Back/Bottom (1 Piece)
233
335815
Insulation
234
343768
Flue Deflector Insulation
235
330166
Insulation
241
326069
Oven Rack (2 Req)
246
346003
Broiler Pan
247
326297
Broiler Pan Grid
268
344119
Stability Bracket Kit
253
334300
Sensor
256
344111
Oven Light Bulb Holder
257
339665
Oven Light Bulb
258
229371
Lens Gasket
KEY
NO.
PART
NO.
DESCRIPTION
259
114989
Oven Light Lens
260
229372
Oven Light Lens Retainer
262
Side Trim
330340
Left
330341
Right
266
346477
Base w/Levelers (Lt. or Rt.)
267
317656
Drawer Support
268
344119
Stability Bracket Kit
281
Oven Door Hinge
332346
Left
332345
Right
286
342300
Oven Door Spring (Lt. or Rt.)
291
304835
Cover
292
281913
Rear Slide Block
293
281914
Front Slide Block
296
343627
Leg Leveler (4 Req)
801
346950
Screw 10-16x7/16"
804
120855
Screw
805
326974
Screw 10AB
807
314124
Screw 8ABx5/8"
810
102428
Screw 10-32x17/32”
811
102563
Screw 8-32x3/8"
830
102430
Screw 10-32x1/2"
861
69364
Screw 10ABx3/4"
880
341627
Screw 10-32x5/8"
935
21067
Washer
936
324257
Bushing
979
312605
Expansion Nut Spacer (4 Req)
995
341134
Nut
*
344491
Extended Leg Leveler Kit
•
Part Not Shown on Illustration

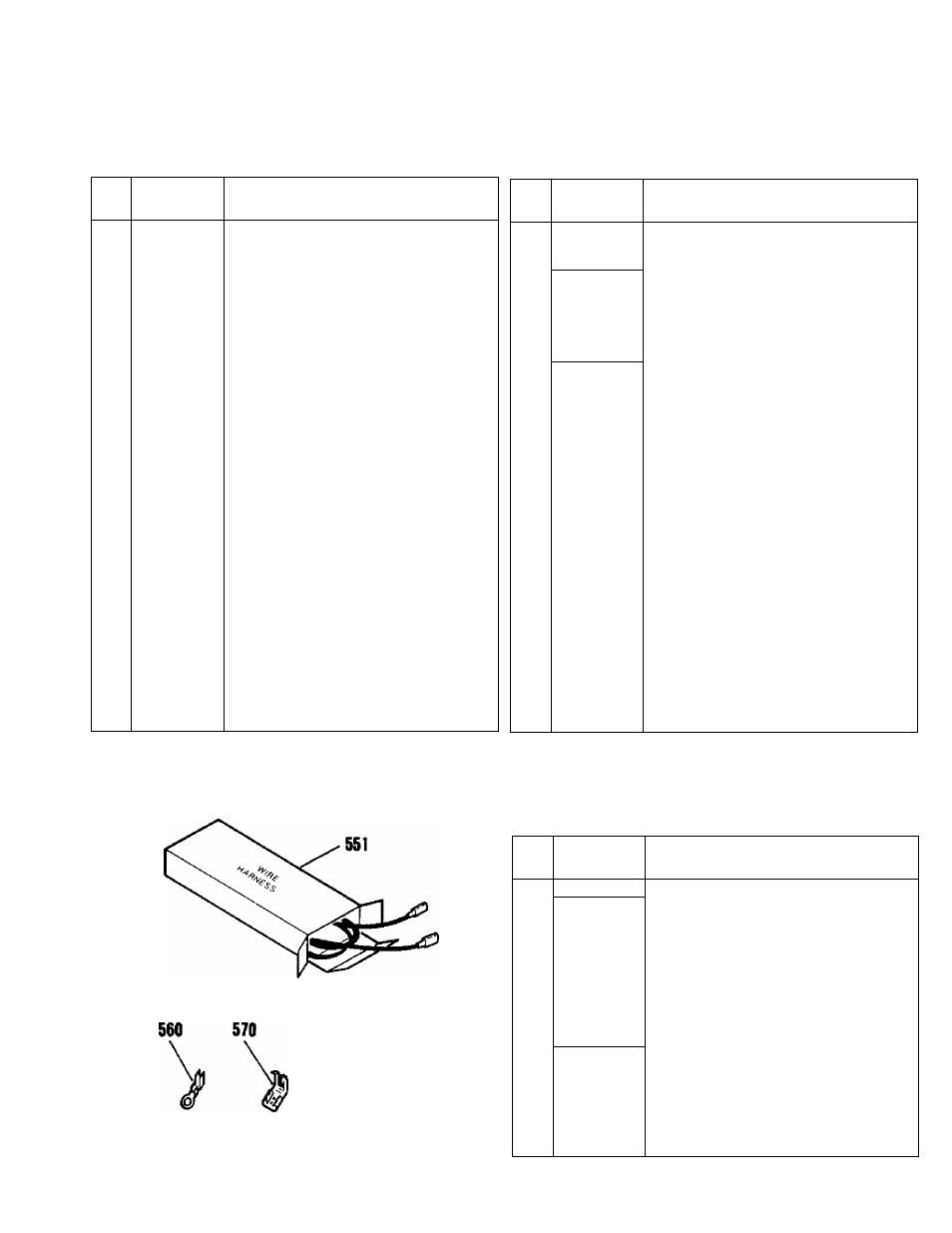

ILLUSTRATION AND PARTS LIST FOR WIRE HARNESSES AND OPTIONS
SBDYL0369
10-03-90
580
KEY
NO.
PART
NO.
DESCRIPTION
551
Wire Harness
341866
Switch-Gas Valve
347194
Main
342445
Igniter
333274
Sensor
341291
Spark Module
341780
Ground
346123
ERC
560
238387
Eyelet Terminal
570
STD374251
Flag Terminal
580
Fasten Terminal
STD374180
3 / 1 6 "
STD374250
1 /4"
STD374120
.110-,020 (Switch Lead)
STD374132
.110- 032 (Igniter Lead)
-4-
(For Illustration See Page 3)
