KENMORE 30 " SELF-CLEANING GAS RANGE-MODEL NUMBER
9 1 1 . 3 6 5 1 1 9 0

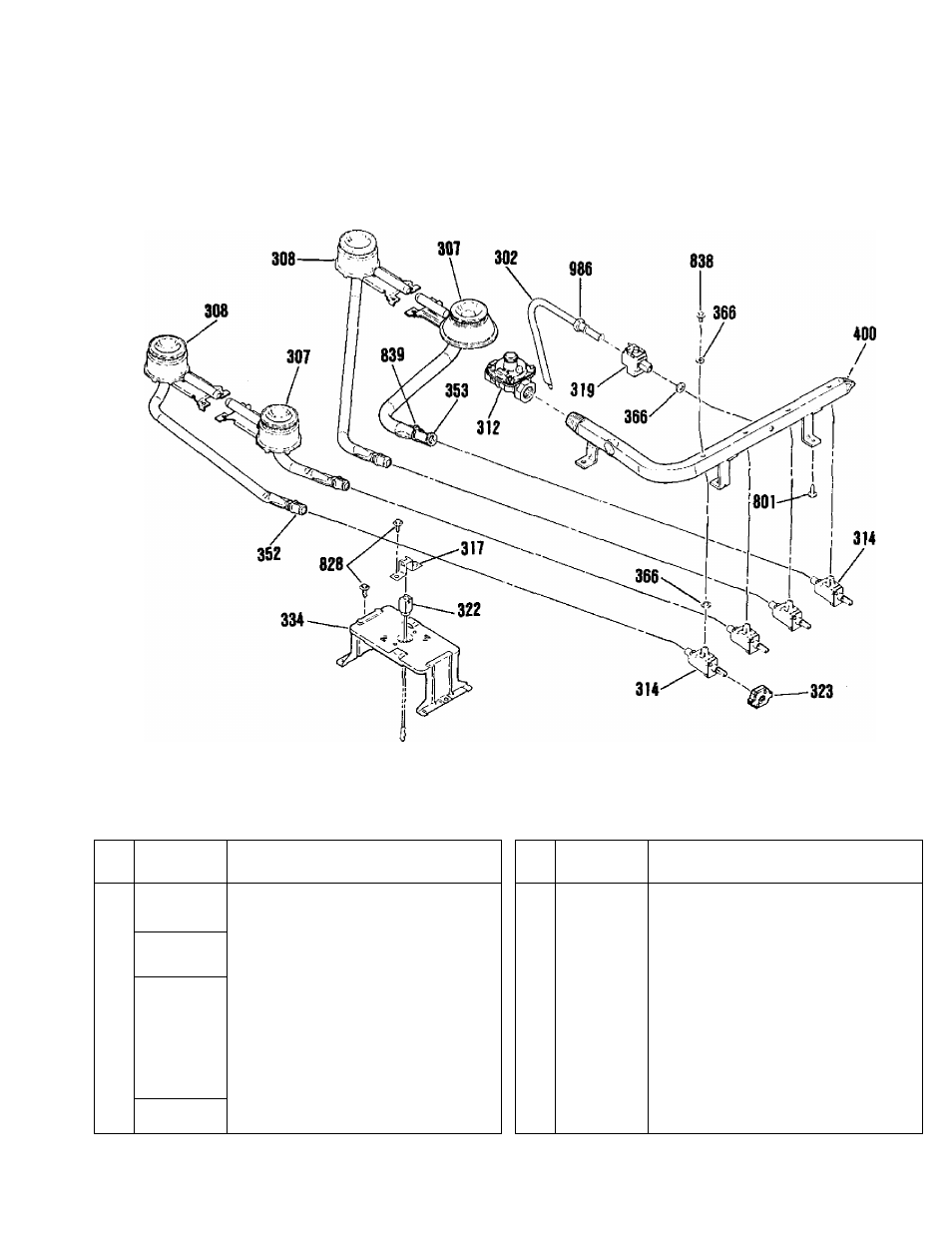

ILLUSTRATION AND PARTS LIST FOR TOP BURNER SECTION
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
302
331107
Tubing 3/8" {Shut-Off Valve
323
310253
Gas Valve Switch (4 Req)
to Control Valve)
334
330358
Top Burner Support (Rt. or Lt.)
307
Top Front Burner
352
342613
Air Shutter (3 Req)
342545
Left
353
342615
Air Shutter
342543
Right
366
313563
Rubber Gasket-Valve
308
Top Rear Burner
366
311692
Rubber Gasket-Valve Screw
342544
Left
366
304241
Safety Valve Gasket
342546
Right
400
330348
Manifold Pipe
312
324528
Pressure Regulator
801
346950
Screw 10-16x7/16"
314
336369
Gas Valve (Rt. Front)
828
97217
Screw 8-32x3/8“
314
333508
Gas Valve (Lt. Frt., Lt./Rt. Rear)
838
311455
Mounting Screw 1 /4-20
317
312453
Spark Igniter Bracket (Lt. or Rt.)
839
301911
Screw
319
326830
Shut-Off Valve
986
113384
Inverted Nut 3/8"
322
Spark Igniter Electrode
342819
Rear
342820
Front
SBRNU0064-1
1l-IB'BO
-6-
