ASSEMBLY INSTRUCTIONS

q=p

Flat—.

Washer

5/16" I.D.

- Hex Lock

Nut 5/16-18

Thread

Hex Bolt

5/16-18

8-3/8" Long

IMPORTANT:

This unit is shipped WITHOUT GASO

LINE or OIL in the engine. After assembly, see opera

tion section of this manual for proper fuel and engine
oil recommendations.

NOTE:

To determine right and left hand sides of your

chipper-shredder, stand behind the unit with the
engine the farthest away from you. See figure 6.
Your chipper-shredder has been completely assem
bled at the factory, except for the hopper assembly
(hopper hood and upper leaf ramp section have been
sub-assembled), upper guide assembly, chute
deflector and the catcher bag. The hardware pack
safety glasses and a bottle of oil are also included in

the carton.

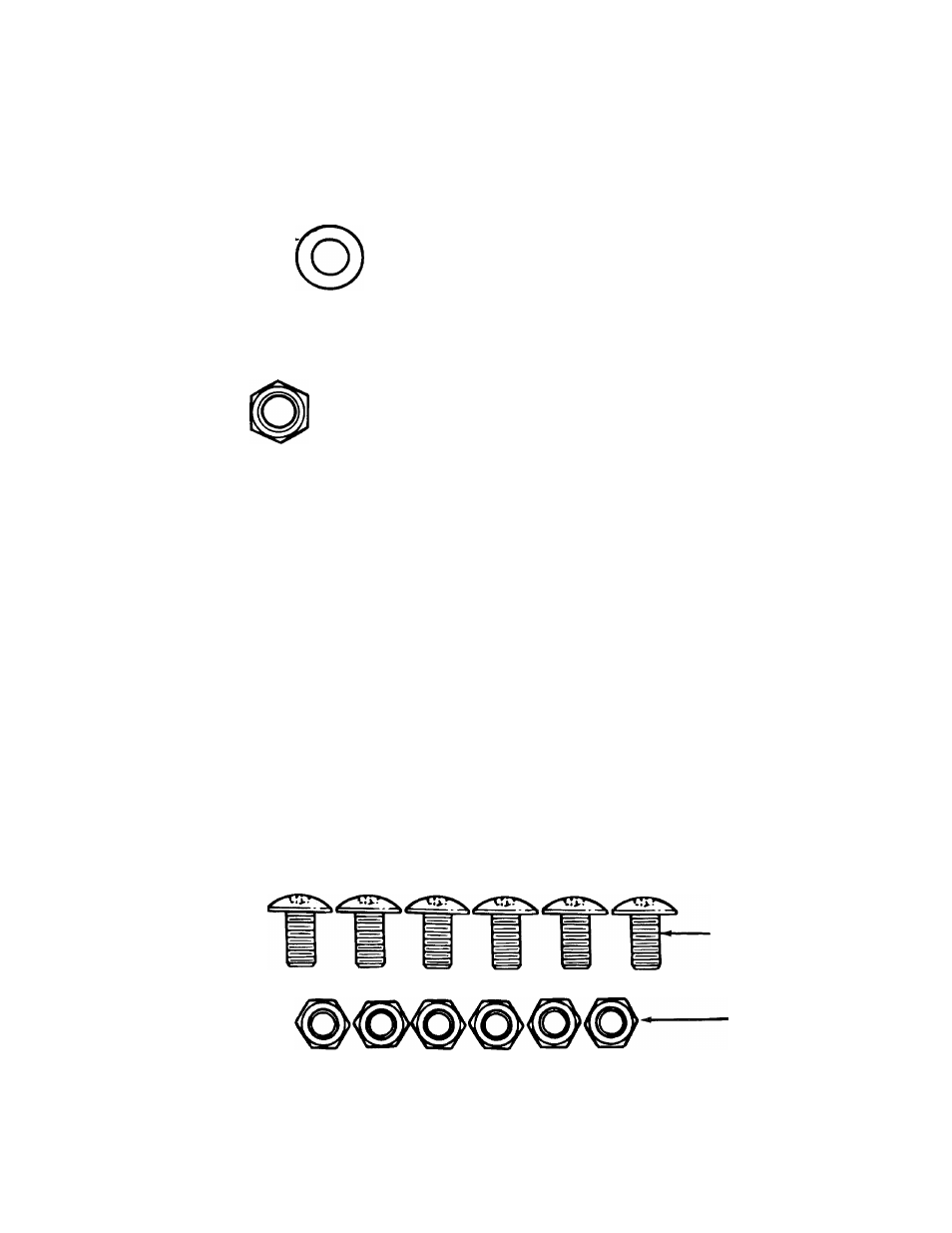

The hardware pack contains the parts shown in figure

1 (shown full size).

TO REMOVE CHIPPER-SHREDOER FROM CARTON

Cut the corners of the carton. Remove all packing
inserts. Roll chipper-shredder out of the carton. Make
certain all parts and literature have been removed
before the carton is discarded.

TOOLS REQUIRED FOR ASSEMBLY

(1) Phillips Screwdriver
(2) 1/2" or Adjustable Wrenches
(2) 7/16" or Adjustable Wrenches
(1) Funnel

Truss Machine Screws

1/4-20

1/2" Long

Hex Lock Nuts

1/4-20 Thread

FIGURE 1.
