FLEXLOCK FLE-HG ROOF EDGE
FULLY ADHERED OR MECHANICALLY ATOCHED SINGLE-PLY VERSION
SCUPPERS - FACTORY WELDED CONSTRUCTION

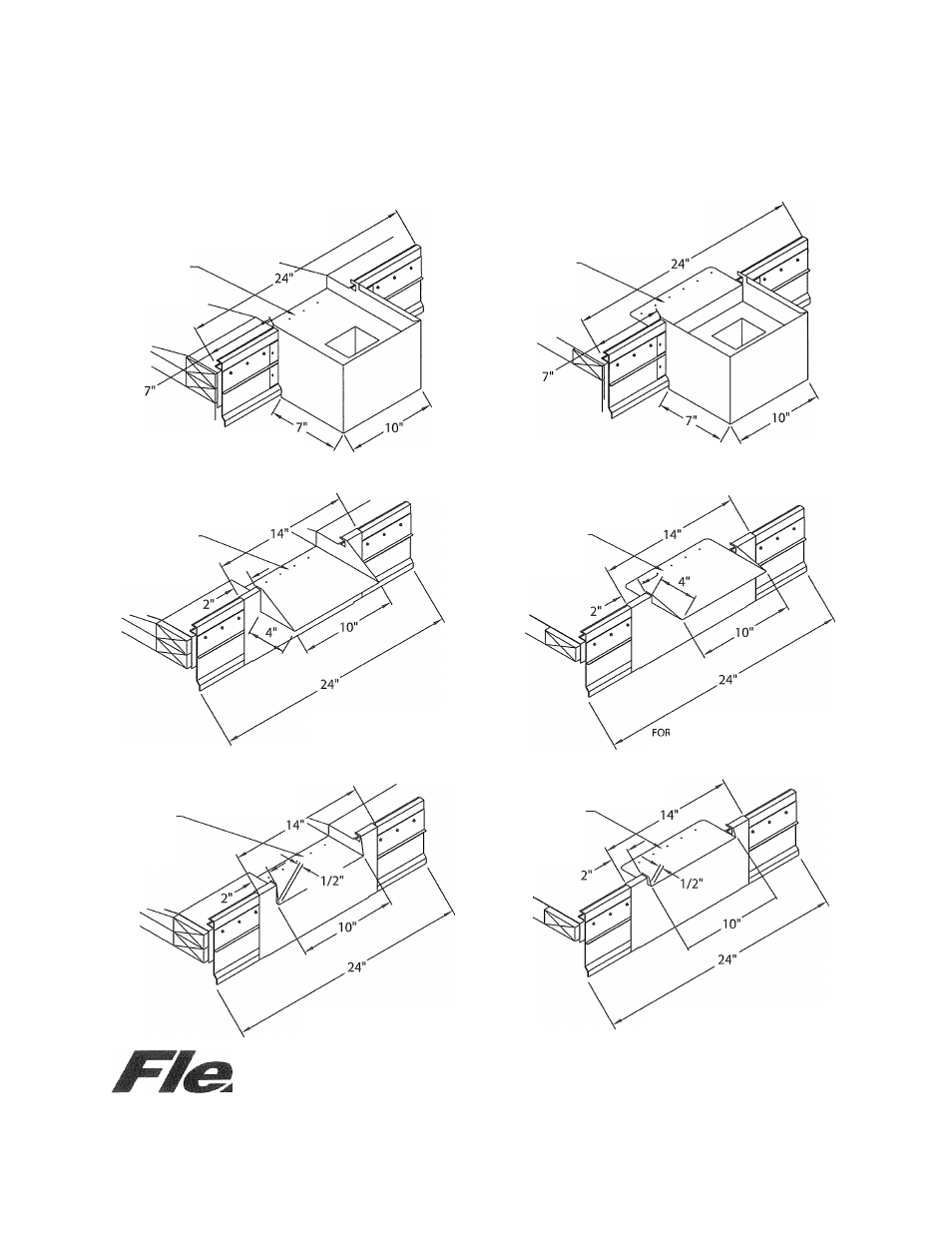

DOWNSPOUT SCUPPER
TYPE DSA (TAPERED)
3" WIDE
ROOF
FLANGE
FOR USE WITH TAPERED EDGE STRIP.
FLANGE LOWERED 1-1/2".
NOTE
SPECIFY TUBE SIZE
DOWNSPOUT SCUPPER
TYPE DSB (FLAT)
3" WIDE
ROOF
FLANGE
FOR USE WITHOUT TAPERED EDGE STRIP.
FLANGE FLUSH MOUNTED WITH ROOF.
NOTE
I SPECIFY TUBE SIZE
SPILLOUT SCUPPER
TYPE SSA (TAPERED)
3" WIDE
ROOF
FLANGE
SPILLOUT SCUPPER
TYPE SSB (FLAT)
3" WIDE
ROOF
FLANGE
FOR USE WITH TAPERED EDGE STRIP.
FLANGE LOWERED 1-1/2".
[ USE WITHOUT TAPERED EDGE STRIP.
FLANGE FLUSH MOUNTED WITH ROOF.
OVERFLOW SCUPPER
TYPE OSA (TAPERED)
3" WIDE
ROOF
FLANGE
OVERFLOW SCUPPER
TYPE OSB (FLAT)
3" WIDE
ROOF
FLANGE
FOR USE WITH TAPERED EDGE STRIP.
FLANGE LOWERED 1-1/2".
FOR USE WITHOUT TAPERED EDGE STRIP.
FLANGE FLUSH MOUNTED WITH ROOF.
Customer Service
Phone: 800-969-0108
Fax:610-916-9501
DATE: 12/13/10
DRN BY: JJC
CKD BY: SAK
SHT.# OF
DWG# 28510-11784
B
detail
24
