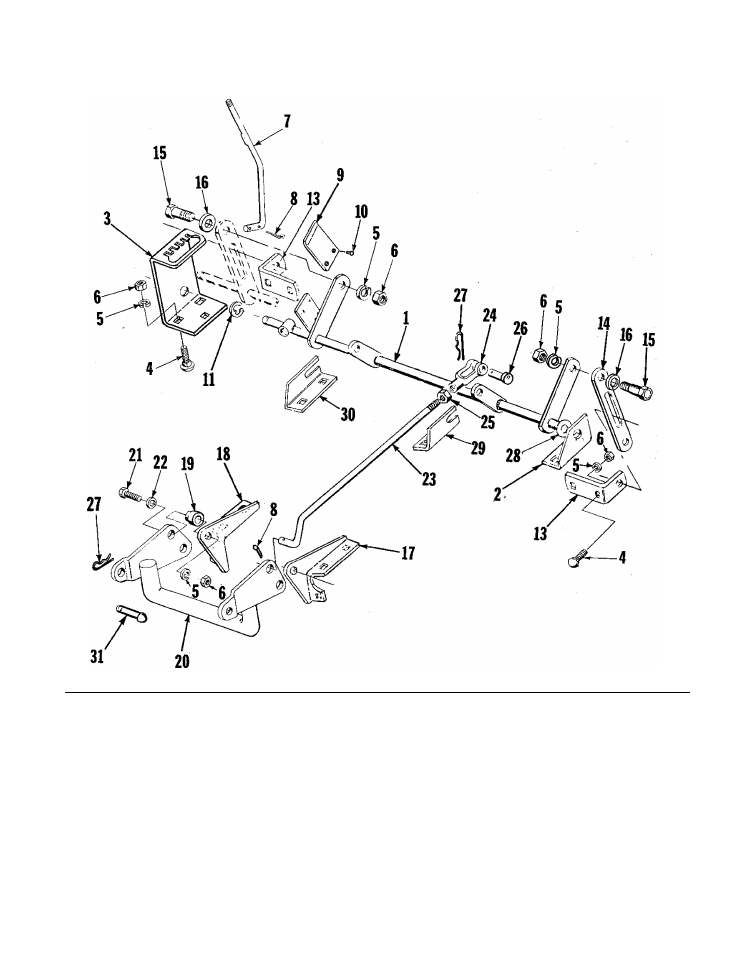

Hitch Assembly
V—12
No.
Description
Part No.
Qty.
No.
Description
Part No.
Qty.
1
ARM ASSEMBLY-mower
LM-16065-32
1
19
SPACER-pivot
LM-16032-70
2
2
BRACKET-pivot (L. H.)
LM-16032-59
1
20
LINK ASSEMBLY-mower
LM-16070-79
1
3
QUADRA NT-mower control
LM-16032-60
1
21
SCREW-hex hd. cap, 3/8-16 x 1-3/4
LM-09193-61
2
4
BOLT-rd.M., 3/8-16x3/4
LM-09221-10
15
22
WASHER-nat
LM-09227-55
2
5
WASHER-lock. 3/8
LM-09169-65
21
23
ROD-adjusting (R. H.) 42" Mower
LM-16032-56
1
ä
NUT-hex, 3/8-16
LM-09169-50
21
ROD-adjusting (R. H.) 48" Mower
LM-16033-66
1
7
LEVER- control
LM-16074-14
1
ROD-adjusting (L. H.) 42" Mower
LM-16032-57
1
8
PEN-eotter, 1/8 x 1
LM-09184-52
4
ROD-adjusting (L, H.) 48" Mower
LM-16033-67
1
9
SPRING-mower quadrant
LM-16032-62
1
24
YOKE-rod end adjusting
LM-01576-31
2
10
RIVET-pop
LM-16020-93
2
25
NUT-jam hex. 1/2-20
LM-09192-62
2
11
"E" RING
LM-09277-94
1
26
PIN-yoke, 1/2
LM-01543-05
2
12
KNOB
LM-16102-53
1
27
PIN-quick
LM-09181-96
4
13
BRACKET-roller support
LM-16032-64
2
28
WASHER-flat, 25/32 x 1-1/8
LM-09243-68
1
14
EAR-roller
LM-16032-63
1
29
SUPPORT-shaft (L. H.)
LM-16070-53
1
15
BOLT-shoulder
LM-16021-86
4
30
SUPPORT-shaft (R.H.)
LM-16070-52
1
16
WASHER-flat, 7/16
LM-09184-30
4
31
PIN-rd.hd.
LM-01563-06
2
17
: BRACKET-front (L.H.)
LM-16029-42
1
18
ERACKET-front (R. H.)
LM-16029-43
1
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
