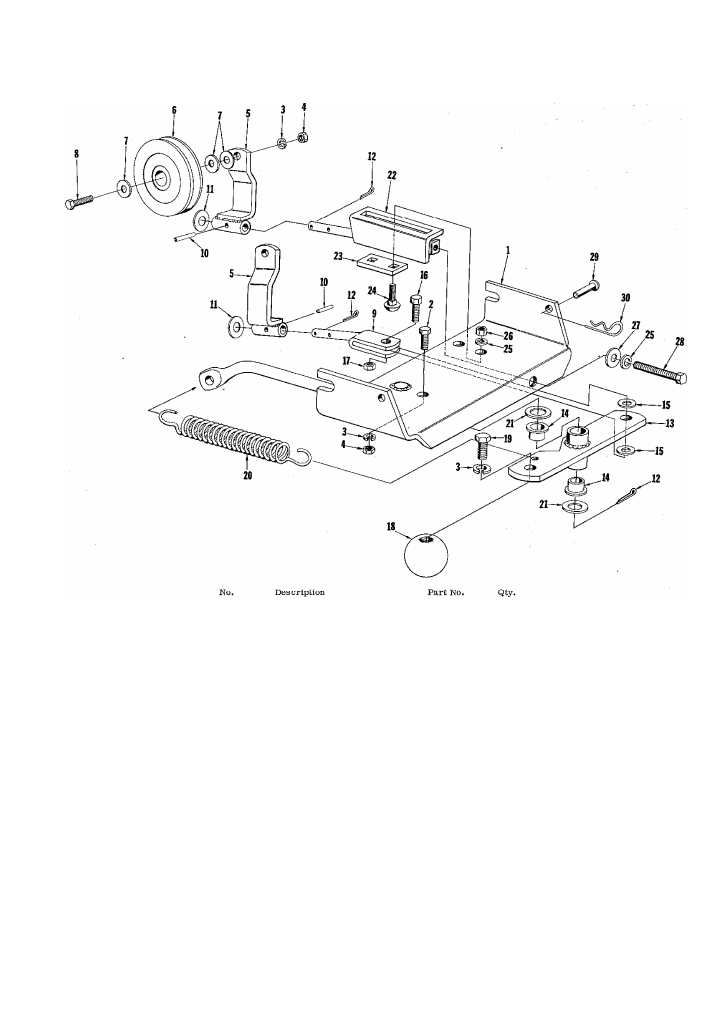

PTO Idler Assembly
1
-
SUPPORT ASSEMBLY
LM-16070-64
1
2
SCREW-hex hd.-cap, 3/8-16
x 1-1/4
LM-09174-00
1
3
WASHER-lock, 3/8
LM-09169-65
4
4
NUT-hex, 3/8-16
LM-09169-50
3
5
BRACKET ASSEMBLY-idier
LM-16070-73
2
6
PULLEY-idler
LM-01010-96
2
7
WASHER-Uat
LM-09249-40
6
8
SCREW-hex hd. cap, 3/8-16
x 1-1/2
LM-09193-60
2
9
CLEVIS ASSEMBLY
LM-16070-56
1
10
PlN-spring
LM-09160-01
2
11
WASHER-flat
LM-09169-60
2
12
COTTER PIN
LM-09184-52
3
13
ARM ASSEMBLY-pivot
LM-16070-66
1
14
BEARlNG-nylon
LM-16104-56
2
15
WASHER-nyton
LM-01591-34
2
16
SCREW-speciai, cap
LM-16071-24
1
17
NUT-hex lock, 3/8-16
LM-09234-28
1
18
KNOE-ball
LM-16010-42
1
19
SCREW-hex hd. cap, 3/8-16
X 7/8
LM-09193-57
1
20
SPRING-extension
LM-01737-47
1
21
WASHER-flat
LM-09193-87 ' 2
22
BRACKET ASSEMBLY
LM-16070-60
1
23
PLATE-reinfoi-cement
LM-16070-61
1
24
BOLT-carriage, 5/16-18
x 1
LM-09211-58
2
25
WASHER-lock, 5/16
LM-09173-56
3
26
NUT-hex, 5/16-18
LM-09173-72
2
27
WASHER-flat
LM-09176-42
1
28
SCREW-hex hd. cap, 5/16-18 X 2-1/2
LM-09234-23
1
29
PIN-rd.hd.
LM-01563-06
2
30
PIN-quick
LM-09181-96
2
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
