FLUE — Inspect the flue connection and chimney annually to
make sure they are in good condition and have not become
obstructed.
CIRCULATOR SYSTEM LUBRICATION ' - The circulator is a
water self-lubricating type and does not require any further
lubrication.
Step 1—Cleaning The Boiler
1. Remove burner access door.
2. Remove burners and pilot.
3. Remove vent pipe.
4. Remove top panel and swing aside.
5. Remove flue collector.
6. Use flexible handle wire brush to clean passageways. (See Fig
14.)
7. Using vacuum cleaner with soft brush attachment, clean
burners. After cleaning, reinstall burners and pilot.
8. Reassemble boiler.

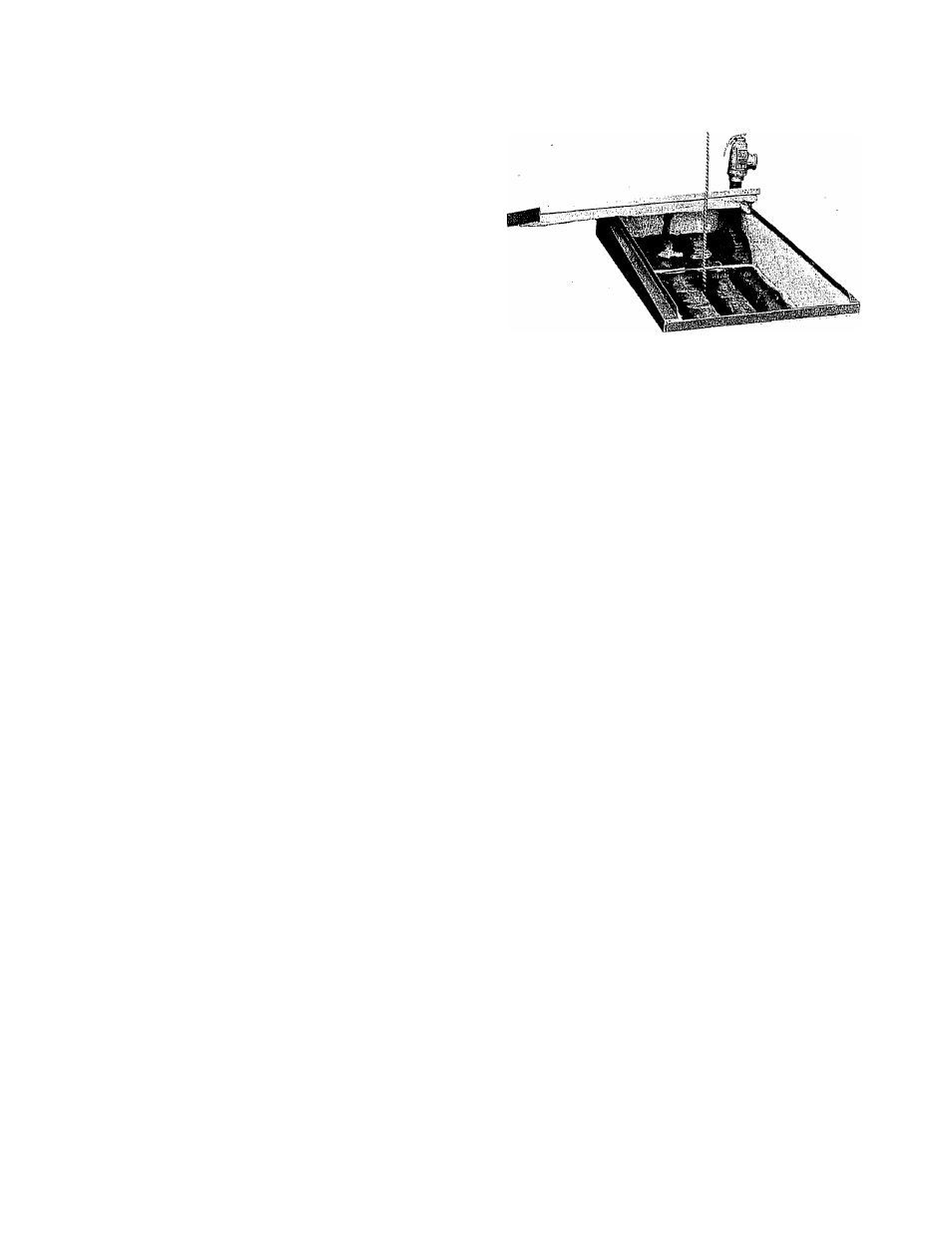

Fig. 14—Cleaning Boiler Passageways
A66289
