GASOLINE
When using gasoline, always use fresh, clean,
unleaded fuel. This engine is certified to operate on
unleaded gasoline with a minimum octane rating of
86 or higher. Gasoline containing no more than 10%
ethanol is acceptable.
CAUTION: EQUIPMENT DAMAGE
Do not use unapproved gasoline, such as E15 or
E85. Do not mix oil in the gasoline. Use of unap-
proved fuels will damage the engine components
and void the engine warranty.
Use of fuels with content of ethanol greater than
shown above may cause starting and/or perfor-
mance problems. Always ensure that the fuel is
clean and free of all impurities.
WARNING: FIRE DANGER
Gasoline and its fumes are VERY explosive when
proper precautions are not taken.
Never use gasoline that has been stored for an ex-
tended period of time as the fuel will lose its volatile
properties and you will be left with varnish residue.
The varnish like substance will clog the carburetor
and will not burn properly.
The use of fuel additives, such as STA-BIL, or an
equivalent will minimize the formation of fuel gum
deposits. If a unit has been out of operation for an
extended period of time, it is best to drain old fuel
from the engine and replace with fresh fuel before
attempting to start.
BATTERY INSTALLATION
The WC6000HE generator set is shipped with a
battery tie down kit for customer installation. This kit
consists of a battery tie down and hardware for in-
stallation of the customer supplied battery on the unit.
If you intend to use the power plant’s electric start
system, you will need to purchase and install a bat-
tery to operate it. Units equipped with a recoil or rope
start will operate satisfactorily without a battery.
WARNING: EQUIPMENT DAMAGE
The battery positive (+) cable is shipped with a
plastic protective cap. When starting manually, this
protective cap must remain in place to avoid pos-
sible damage to the engine electrical system and/or
generator end.
A 12-volt powersports (motorcycle/atv/snowmo-
bile) battery, BCI group 20 or 24HL rated at 300
CCA or larger is recommended for this electric start
engine generator set. Maximum length: 8 1/8”, Maxi-
mum width: 3 9/16”, Height range: 5 3/4” - 7”. Amp
Hours: 15AH or greater. Follow the battery manufac-
turers recommendations for servicing and charging
prior to use. Connect the battery to the electric start
system using the cables provided.
CAUTION: EQUIPMENT DAMAGE
These electric start engines are NEGATIVE
GROUND. Use extreme caution when connecting the
battery. Connect the NEGATIVE battery terminal to
GROUND.
For your safety always connect the positive battery
cable to the “bat+” terminal first. Then connect the
negative battery cable to the “bat-” terminal. Make
sure all connections are clean and tight. Reverse the
sequence when disconnecting, disconnect the nega-
tive cable first. These engines produce enough direct
current to keep a battery charged under normal oper-
ating conditions, but were not intended to be used as
a battery charger.
ENGLISH
REFUELING
Recommended Fuel
ENGINE OIL
Recommended Oil
AMBIENT TEMPERATURE
(non-strainer type) (strainer type)
FUEL TANK TOP
25 mm
(1 inch)
MAXIMUM
FUEL
LEVEL
MAXIMUM
FUEL
LEVEL
8
Unleaded gasoline
Pump octane rating 86 or higher
Research octane rating 91 or higher
Pump octane rating 86 or higher U.S.
Except U.S.
Fuel can damage paint and some types of plastic. Be careful not to
spill fuel when filling your fuel tank. Damage caused by spilled
fuel is not covered under the Distributor’s Limited Warranty.
Gasoline is highly flammable and explosive, and you
can be burned or seriously injured when refueling.
Stop engine and keep heat, sparks, and flame away.
Refuel only outdoors.
Wipe up spills immediately.
This engine is certified to operate on unleaded gasoline with a
pump octane rating of 86 or higher (a research octane rating of 91
or higher).
Refuel in a well-ventilated area with the engine stopped. If the
engine has been running, allow it to cool first. Never refuel the
engine inside a building where gasoline fumes may reach flames
or sparks.
You may use regular unleaded gasoline containing no more than
10% Ethanol (E10) or 5% Methanol by volume. In addition,
Methanol must contain cosolvents and corrosion inhibitors. Use of
fuels with content of Ethanol or Methanol greater than shown
above may cause starting and/or performance problems. It may
also damage metal, rubber, and plastic parts of the fuel system.
Engine damage or performance problems that result from using a
fuel with percentages of Ethanol or Methanol greater than shown
above are not covered under warranty.
With the engine stopped and on a level surface, remove the fuel
filler cap and check the fuel level. Refill the tank if the fuel level
is low.
Add fuel to the bottom of the fuel level limit of the fuel tank. Do
not overfill. Wipe up spilled fuel before starting the engine.
Refuel carefully to avoid spilling fuel. Do not fill the fuel tank
completely. Fill tank to approximately 25 mm (1 inch) below the
top of the fuel tank to allow for fuel expansion. It may be
necessary to lower the fuel level depending on operating
conditions. After refueling, tighten the fuel filler cap securely.
Keep gasoline away from appliance pilot lights, barbecues,
electric appliances, power tools, etc.
Spilled fuel is not only a fire hazard, it causes environmental
damage. Wipe up spills immediately.

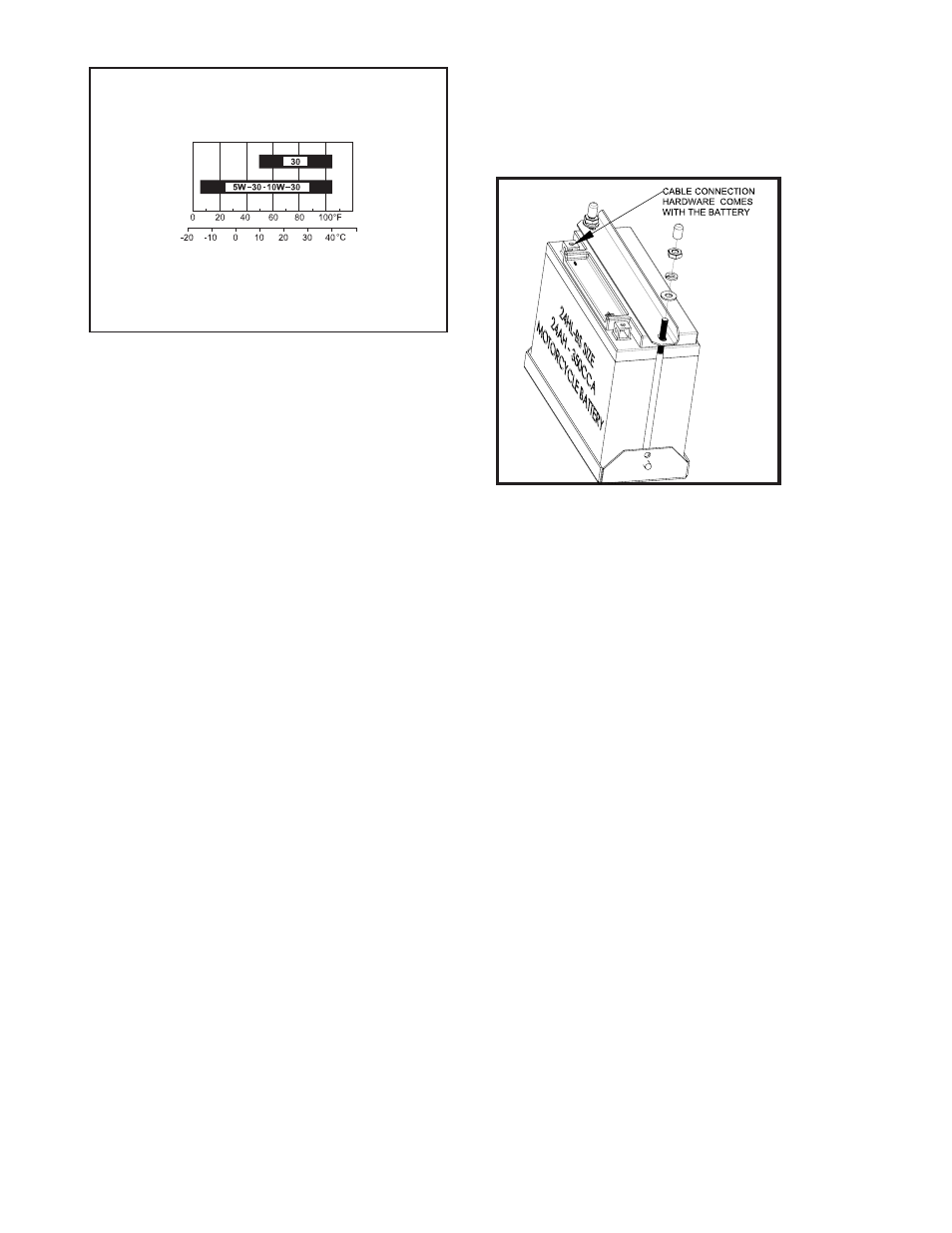

Oil is a major factor affecting performance and service life. Use
4-stroke automotive detergent oil.
Use 4-stroke motor oil that meets or exceeds the requirements for
API service classification SJ or later (or equivalent). Always check
the API service label on the oil container to be sure it includes the
letters SJ or later (or equivalent).
SAE 10W-30 is recommended for general use. Other viscosities
shown in the chart may be used when the average temperature in
your area is within the indicated range.
1.
2.
3.
