ASSEMBLY INSTRUCTIONS
tools
Pencil
6 ft / 2m Folding Rule or Tape Measure
Tin Snips
Drill: Hand or Electric
1/8˝/3mm dia. Drill Bit (sheet metal screws)
1/4˝/6mm dia. Drill Bit (damper installation)
Screwdriver (blade & Phillips types)
6mm Nut Driver or Ratchet with 6mm Socket
Safety Glasses
Gloves
1. Uncrate the stove and remove cardboard packing
and protective poly bag. (Save cardboard for further
assembly.)
2. Remove legs, heat shield, damper, and hardware
pack from inside firebox.
3. Place flattened carton behind stove and carefully
turn stove onto its back.
4. Place both legs upside down and attach the heat
shield assembly (from step 4) between the legs.
Align the holes in the heat shield assembly with
those in the mounting flange of the leg assemblies
and secure with four (4) self-tapping screws.
5. Attach leg/heat shield assembly to the base of the
stove using eight (8) self-tapping screws (fig. 1).
6. Carefully lift stove to upright position.
7. Locate the door knob and machine screw in the
hardware pack. Open the cabinet door by reaching
under the cabinet frame and pulling the door open.
8. Install the door knob onto the outside of the door.
Install the machine screw through the latch bracket,
door, and into the knob. Tighten securely (fig. 2).

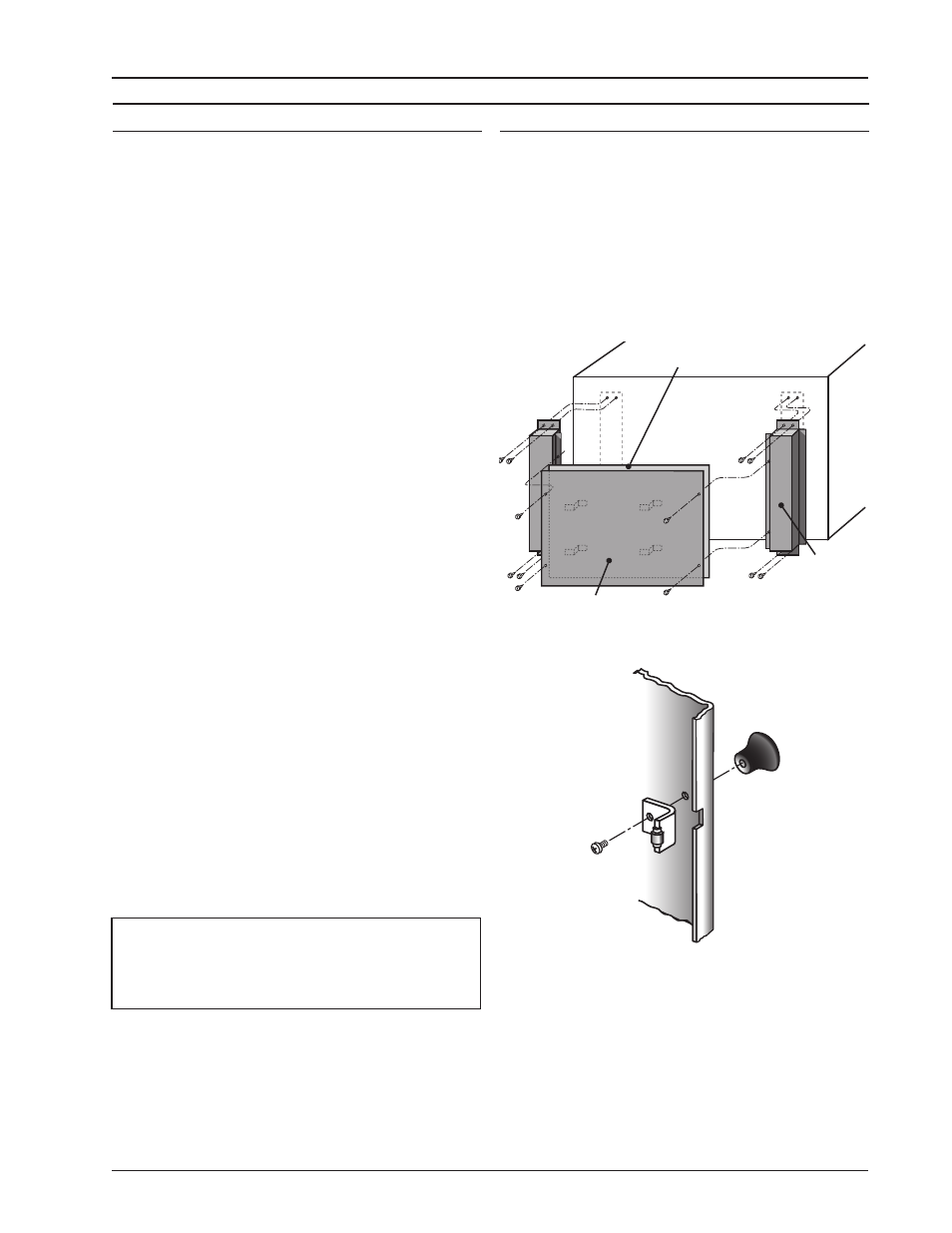

Fig. 1 Leg & Heat Shield Assembly
Upper Heat Shield
Lower Heat Shield
Leg
Assembly
TOOLS AND MATERIALS REQUIRED FOR INSTALLATION
materials
(NOTE: The following items are NOT included with your stove)
Connector Pipe: 6˝/152mm black steel (24 ga. min.) straight stove
pipe or elbow (as required)
1/2” Sheet Metal Screws
Chimney: Existing 6˝/152mm Lined Masonry Chimney or
6˝/152mm Inside Dia. listed Type HT chimney.
Flooring Protection: 43˝/109.2cm x 60˝/152.4cm as specified
(see page 6)
Furnace Cement (manufacturer recommends Rutland Code 78
or equivalent)
Fig. 2 Cabinet Door Knob Assembly
WARNING: METAL HEAT SHIELD PANELS
FASTENEDBETWEEN LEGS ACT AS HEAT
DEFLECTORS. THESE PANELS MUST BE IN
PLACE FOR SAFE OPERATION.
