Wiring diagram f-1 blower option – Vogelzang VG810CL User Manual
Page 19
VGZ-011 / 20120105.0
VG810CL SENTRY COAL™ /
Page 19

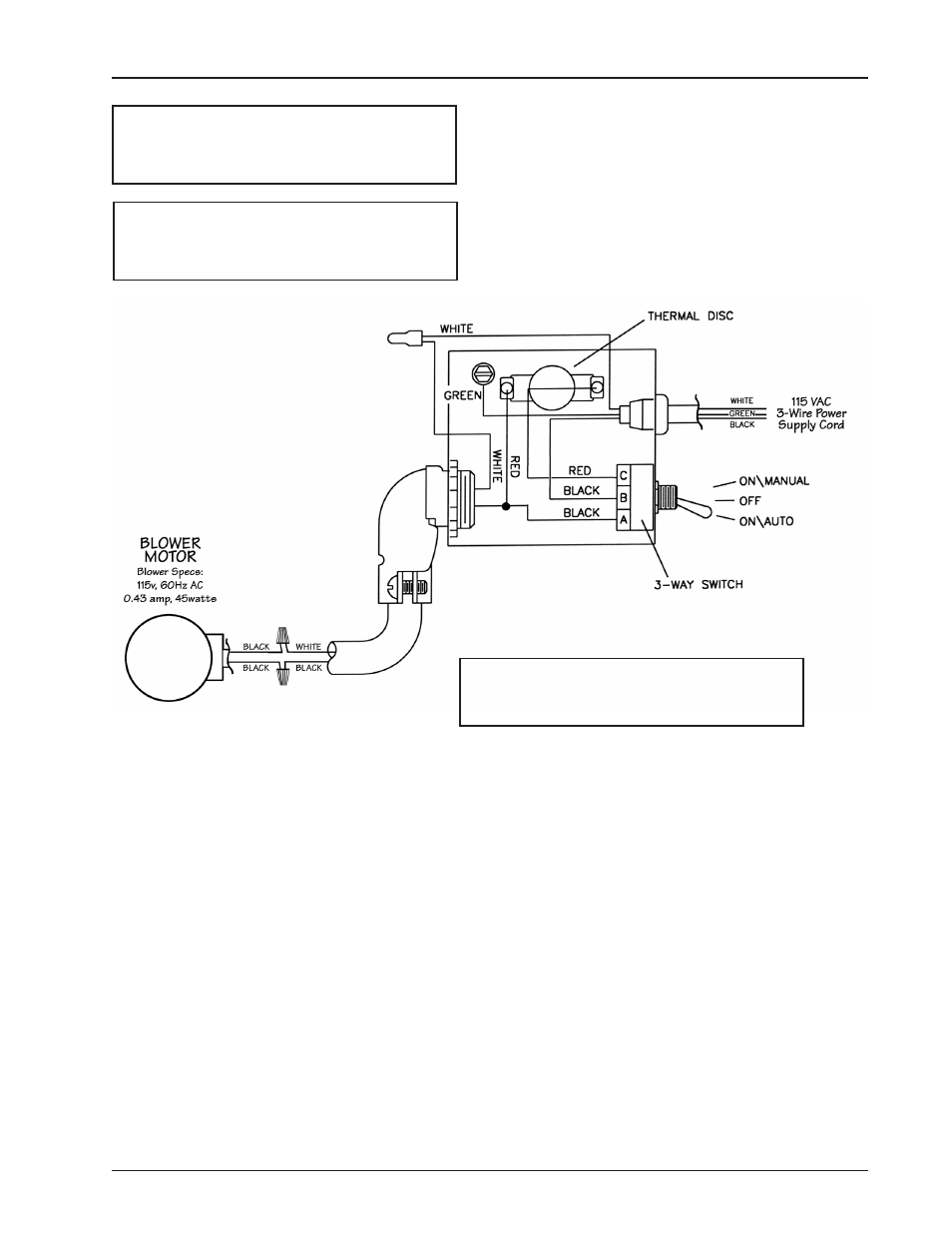

WIRING DIAGRAM F-1 BLOWER OPTION
NOTICE: ANY REPLACEMENT WIRING
MUST HAVE EQUIVALENT INSULATION
AND TEMPERATURE RATING (105°C).
CAUTION: MOVING PARTS CAN CAUSE
INJURY. DO NOT OPERATE WITH COVER
REMOVED.
DANGER: SHOCK HAZARD. DISCONNECT
POWER SOURCE BEFORE INSTALLATION
AND WHENEVER SERVICING BLOWER
ASSEMBLY.
