/ VG810CL SENTRY COAL™ VGZ-011 / 20120105.0
P ART O RDERING – VG810CL S ENTRY C OAL™ S TOVE
When ordering missing or replacement parts, always give the Model Number of the stove, Part Number,

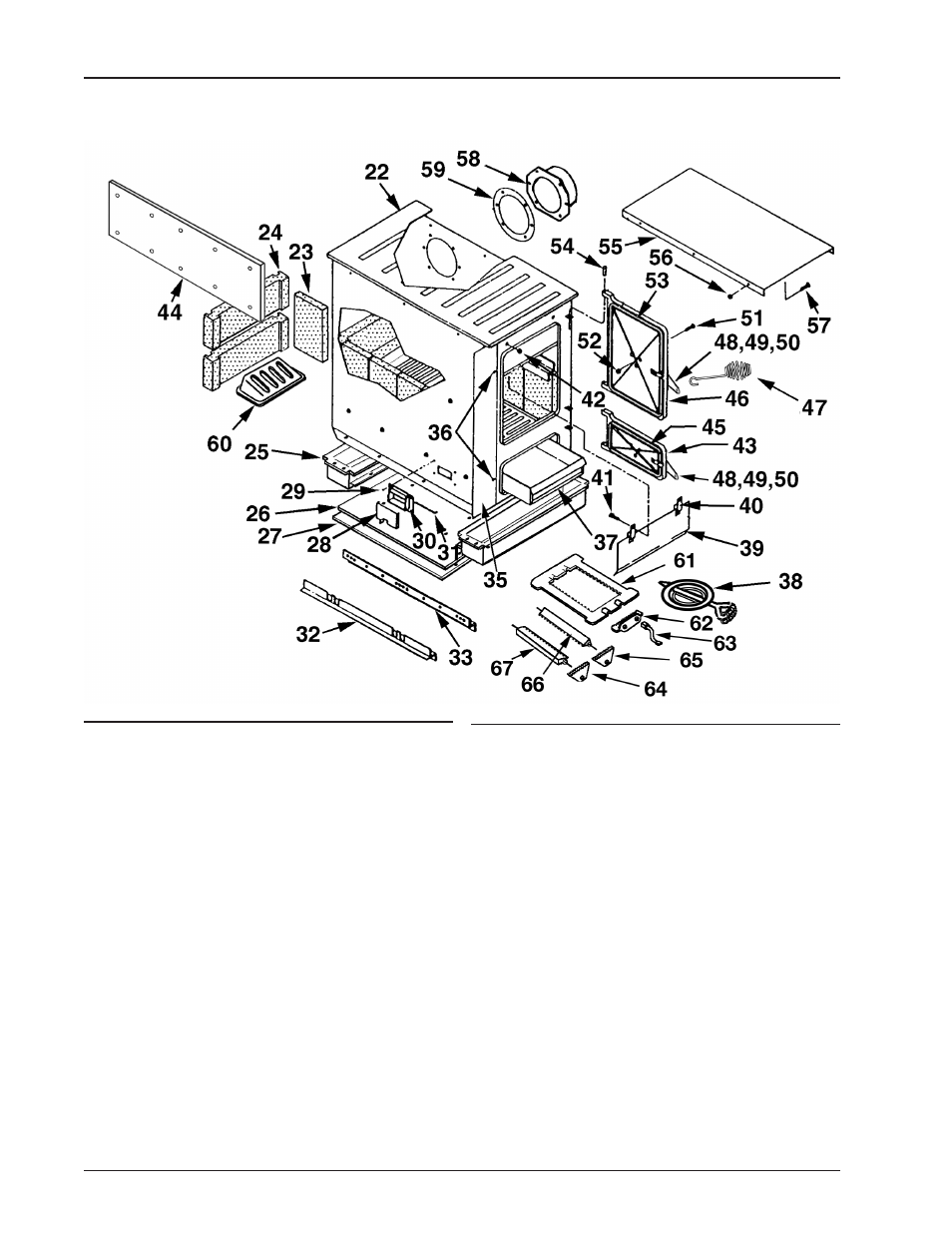

and Part Description. Use the illustrations and part lists provided on the following pages to identify parts.
Part No. Description Qty.
810-22 Firebox Asm .............................................. 1
810-23 Firebrick ................................................... 10
810-24 Liner, Front & Rear .................................... 3
810-25 Leg ............................................................ 2
810-26 Heat Shield, Upper .................................... 1
810-27 Heat Shield, Lower .................................... 1
810-28 Draft Control .............................................. 1
810-29 Clip, Spring ............................................... 1
810-30 Frame, Draft Damper ................................ 1
810-31 Pin, Draft Damper ..................................... 1
810-32 Support, Grate & Liner .............................. 2
810-33 Retainer, Top Brick .................................... 2
810-34
810-35
Shield, Front .............................................. 1
810-36 No.10x1/2” Torque H.D. ............................. 2
810-37 Ash Pan Assembly .................................... 1
810-38 Damper Asm. ............................................ 1
810-39 Smoke Curtain .......................................... 1
810-40 Bracket, Smoke Curtain ............................ 1
810-41 Screw, 1/4-20x3/4” Flat Head .................... 1
810-42 Nut, 1/4-20 ............................................... 1
810-43 Door, Ash .................................................. 1
810-44 Steel Liner ................................................. 1
810-45 Gasket, 29” Ash Door ................................ 1
Part No. Description Qty.
810-46 Door Asm., Feed ....................................... 1
810-47 Handle, Separable (Spring) ..................... 1
810-48 Handle, Door ............................................. 1
810-49 Latch, Door ............................................... 1
810-50 Spacer, ...................................................... 1
810-51 Screw, 1/4-20x3/4” Mach .......................... 1
810-52 Nut, 1/4-20 ............................................... 1
810-53 Gasket, 45” Feed Door .............................. 1
810-54 Pin, Door Hinge ......................................... 4
810-55 Liner, Top ................................................... 1
810-56 Nut, 1/4-20 ............................................... 6
810-57 Screw, 1/4-20x3/4” Flat Head. ................... 6
810-58 Flue Collar ................................................. 1
810-59 Gasket ....................................................... 1
810-60 Fire Grate Extension ................................. 1
810-61 Frame, Shaker Grate................................. 1
810-62 Retainer, Shaker Grate Cog ...................... 1
810-63 Handle, Shaker Grate ............................... 1
810-64 Cog, Right Hand, Shaker Grate ............... 1
810-65 Cog, Left Hand, Shaker Grate ................. 1
810-66 Grate, Right Hand ..................................... 1
810-67 Grate, Left Hand ....................................... 1
