P ART O RDERING – VG810CL S ENTRY C OAL™ S TOVE
When ordering missing or replacement parts, always give the Model Number of the stove, Part Number,

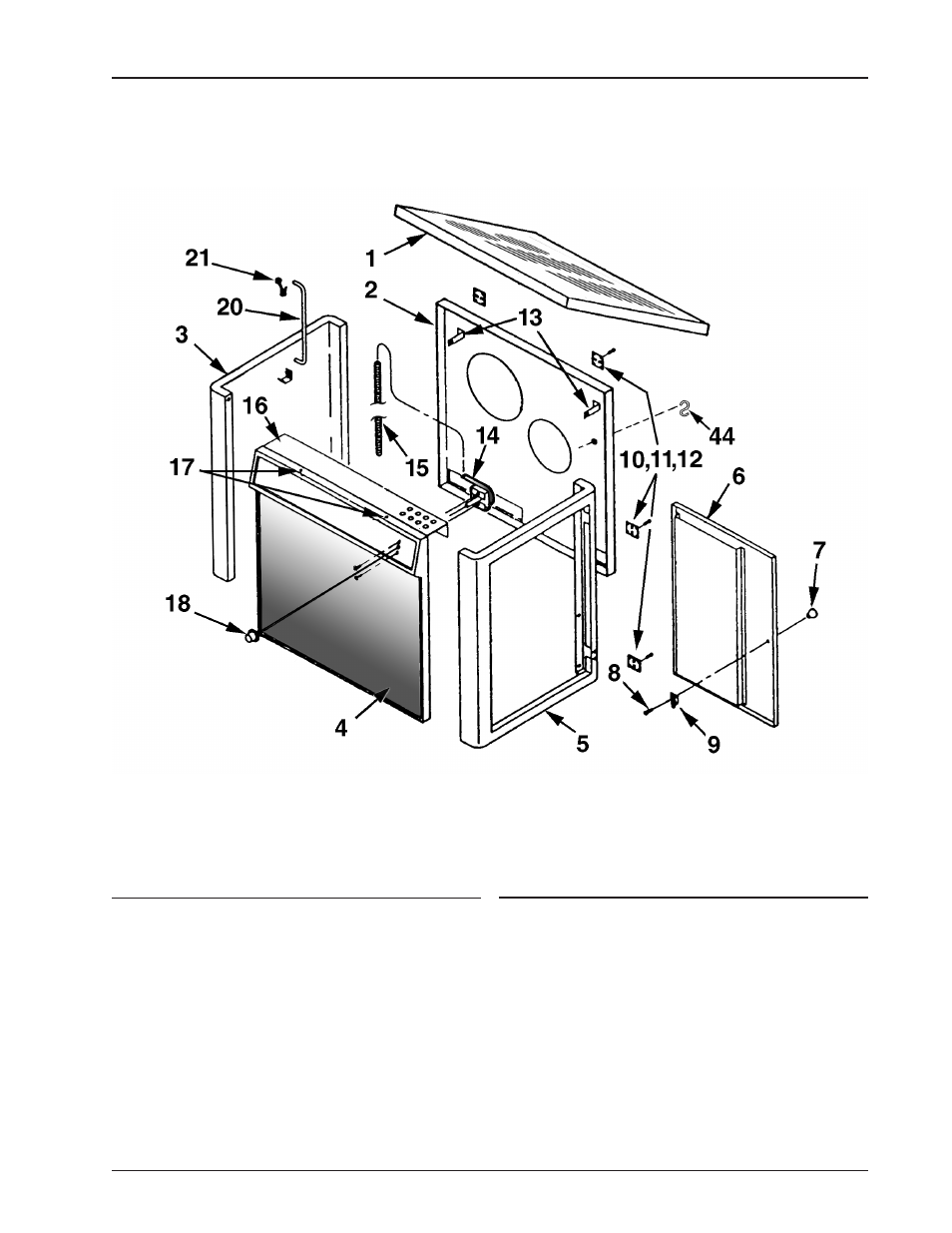

and Part Description. Use the illustrations and part lists provided on the following pages to identify parts.
Part No. Description Qty. Part No. Description Qty.
810-12 Hinge, Door ............................................... 4
810-13 Back Brace ................................................ 2
810-14 Thermostat Assembly ............................... 1
810-15 Chain Linkage, Thermostat ....................... 1
810-16 Top Shield, Thermostat ............................. 1
810-17 Screw, No.10 Torx ..................................... 2
810-18 Knob, Thermostat ...................................... 1
810-19
810-20
Support, Hinge .......................................... 1
810-21 Clip, Hinge ................................................ 1
810-1 Cabinet Top ............................................... 1
810-2 Cabinet, Back ............................................ 1
810-3 Cabinet, Left Side ..................................... 1
810-4 Cabinet, Front Assembly ........................... 1
810-5 Cabinet, Door Frame ................................. 1
810-6 Cabinet, Door ............................................ 1
810-7 Knob, Cabinet Door................................... 1
810-8 Screw, 8-32x1/4” Machine ......................... 1
810-9 Latch, Spring ............................................. 1
810-10 Nut, 10-24 ................................................. 8
810-11 Screw, 10-24x1/2” Flat Hd. ........................ 8
