ORDERINg pARTS - vg650Elg mOUNTAINEER STOvE
Part No. Description qty. Part No. Description qty.
17 Pedestal Front............................................... 1
18 Pedestal Base............................................... 1
19 Hardware Pack (not shown) ......................... 1
20 Fire Brick Pack (only one brick shown) ......... 1
a Size: 9”x4.5”x1.25” ................................... 17
Half Size: 4.5”x4.5”x1.25” ............................. 2
21 Blower Housing (only) .................................. 1
22 Blower/Motor (not shown) ............................. 1
23 Power Cord (not shown) ............................... 1
24 Cord Strain relief (not shown) ..................... 1
25 Speed Control (not shown) ........................... 1
26 Ceramic Fiber Gasket (not shown) ............... 1
27 Glass retainer Screws (shown on pg 15) ... 11
28 Complete Door assembly (less handle) ....... 1
29 Baffle ............................................................ 1
1 Stove Body ................................................... 1
2 Heat Shield ................................................... 1
3 Blower assembly F-6 .................................... 1
4 Flue Collar .................................................... 1
5 Flue Damper ................................................. 1
6 Cover, ash Cleanout ..................................... 1
7 Stove Door Frame ........................................ 1
8 Door Handle assembly ................................. 1
9 Gasket, 3/8” dia. Fiberglass Glass Door ....... 1
10 Glass, Hi-temp Ceramic .............................. 1
11 Glass retainer Brackets (shown on pg 15) . 11
12 Door Pins ...................................................... 2
13 ash Drawer ................................................... 1
14 Pedestal top ................................................. 1
15 Pedestal Side................................................ 2
16 Pedestal Drawer Slide .................................. 1

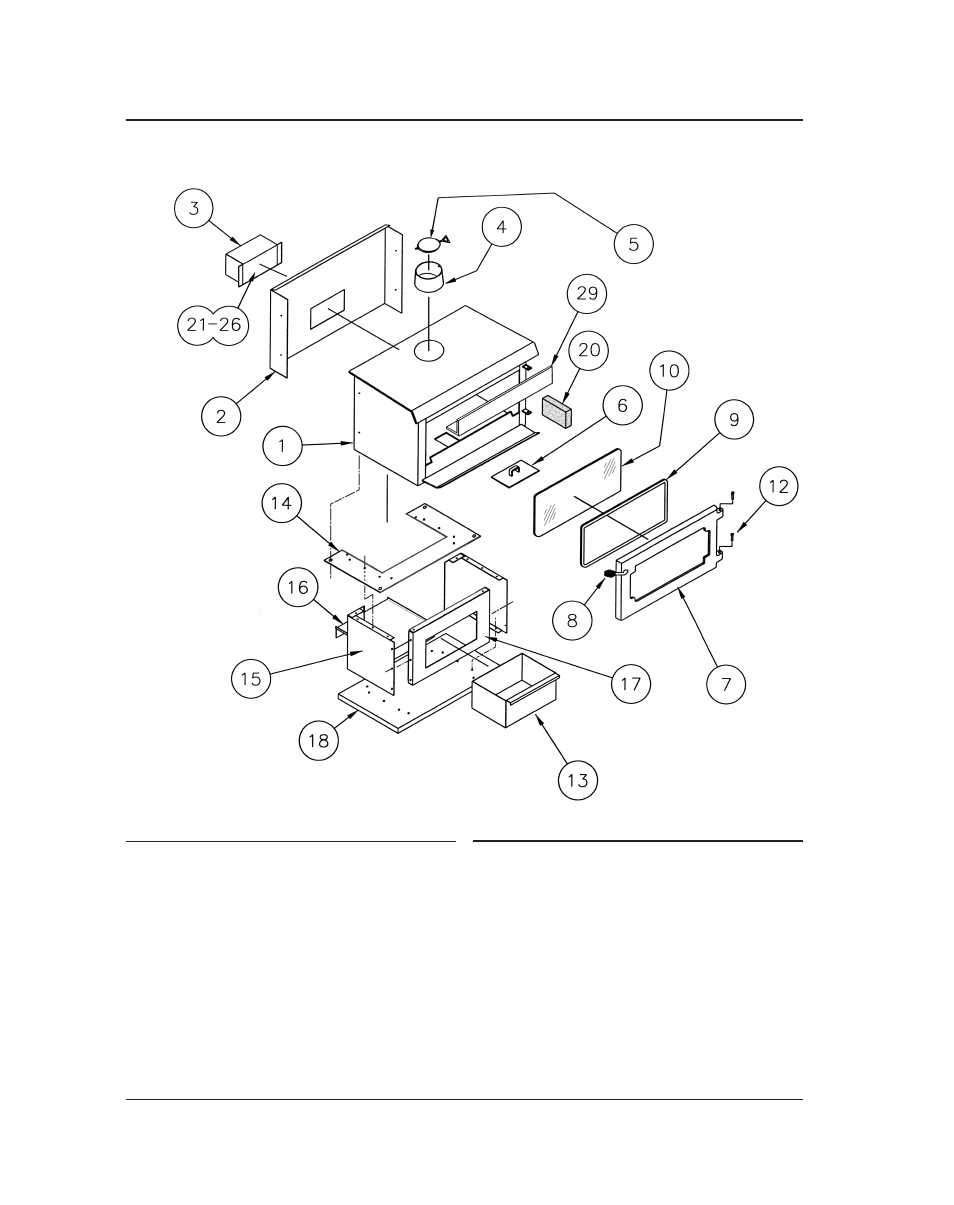

When ordering missing or replacement parts, always give the Model Number of the stove,
Part Number, and Part Description. Use the illustrations and part lists provided to identify parts.
