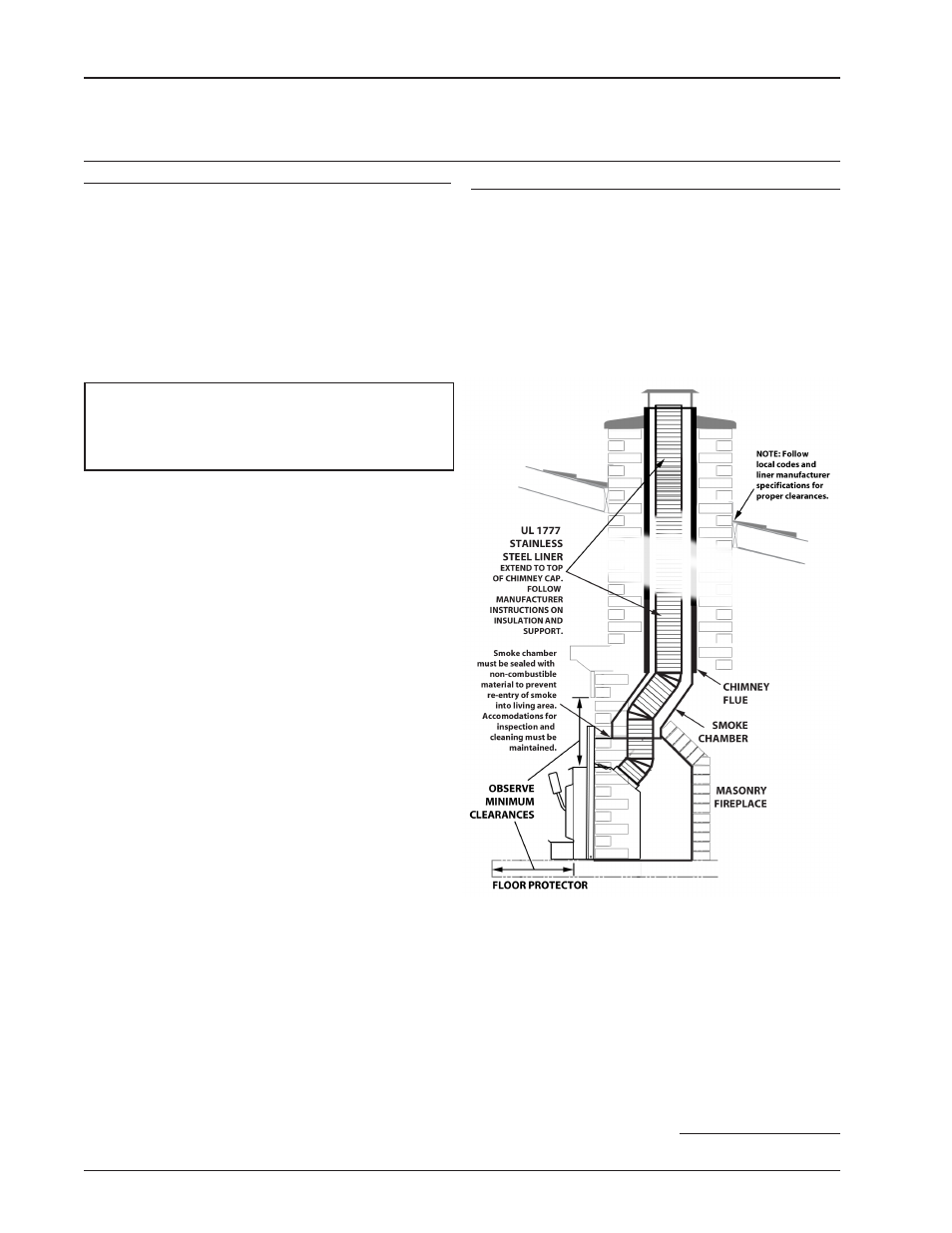

Fig. 4– Stainless Steel Liner Connection
ASSEmblY INSTRUCTIONS
tools
TOOLS AND mATERIALS REqUIRED FOR INSTALLATION
• Pencil
• 6 foot Folding Rule or Tape Measure
• Tin Snips
• Drill: Hand or Electric
• 1/8” dia. Drill Bit (for sheet metal screws)
• Screwdrivers (blade and Phillips type)
• 14mm Nut Driver or Ratchet with 14mm Socket
• Safety Glasses
• Gloves
CAUTION: INSERT IS HEAvY. mAkE SURE YOU
HAvE ADEqUATE HELP AND USE PROPER
LIFTING TECHNIqUES wHENEvER mOvING
THE INSERT.
1. Clean the fireplace opening properly disposing of
any ashes in a closed metal container. See Safety
Instructions, #16 on page 2.
2. Install a 6˝ (152mm) minimum diameter, continu-
ous stainless steel chimney liner into the existing
chimney. The liner must extend to the top of the
existing chimney. Use only listed chimney liners that
meet UL1777 standards. Follow liner manufacturer
installation instructions.
3. Remove or lock the fireplace damper in the open
position. Note: Masonry or damper plate may be
removed to accomodate the chimney liner provided
this does not weaken any structural components
of the existing fireplace or chimney nor reduces
protection of combustible materials required by
national building codes. Consult with your local
building or fire authority
before doing this.
4. Uncrate the insert, remove all packing materials,
and any items stored in the firebox.
5. WARNING: Any fireplace which has had parts
removed or modified to accomodate the instal-
lation of this insert mUST have a warning plate
permanently installed in a visible location stat-
ing that the fireplace is unfit for use with solid
fuel. Permanently attach the warning plate to a
visible location in the fireplace.
6. Position the insert into the fireplace opening until
the top lip of the air jacket is flush with the fireplace
facing.
7. Direct power cord of blower to desired side of
insert and attach blower to front of unit using two
screws.
8. Level the insert with the adjusting screws at the
rear of the appliance.
Continued on next page
NOTICE: Vogelzang International Corp. grants no warranty, stated or implied, for the installation or maintenance of your wood
stove and assumes no responsibility of any incidental or consequential damages.
materials
(NOTE: The following items are NOT included with your stove)
Flooring Protection: 24” x 38” as specified (see page 5)
Chimney Liner: Continuous stainless steel chimney liner (as
required)
Stainless Steel Adapter (connects the liner to the flue collar)
1/2” Sheet Metal Screws
Furnace Cement (manufacturer recommends Rutland Code 78
or equivalent)
9. Connect the chimney liner to the insert using a
stainless steel adapter and securing with a mini-
mum of three (3) sheet metal screws. The liner
MUST be attached with the male (or crimped) end
of the adapter inside the flue collar of the insert to
allow condensation and/or creosote to drain back
into the firebox.
10. Assemble the face plate (figure 5). Lay pieces face
down on carpet or other soft surface to protect finish
during assembly. The face plate consists of two side
