| TR004 COLONIAL™ TR004M | 11102010.0

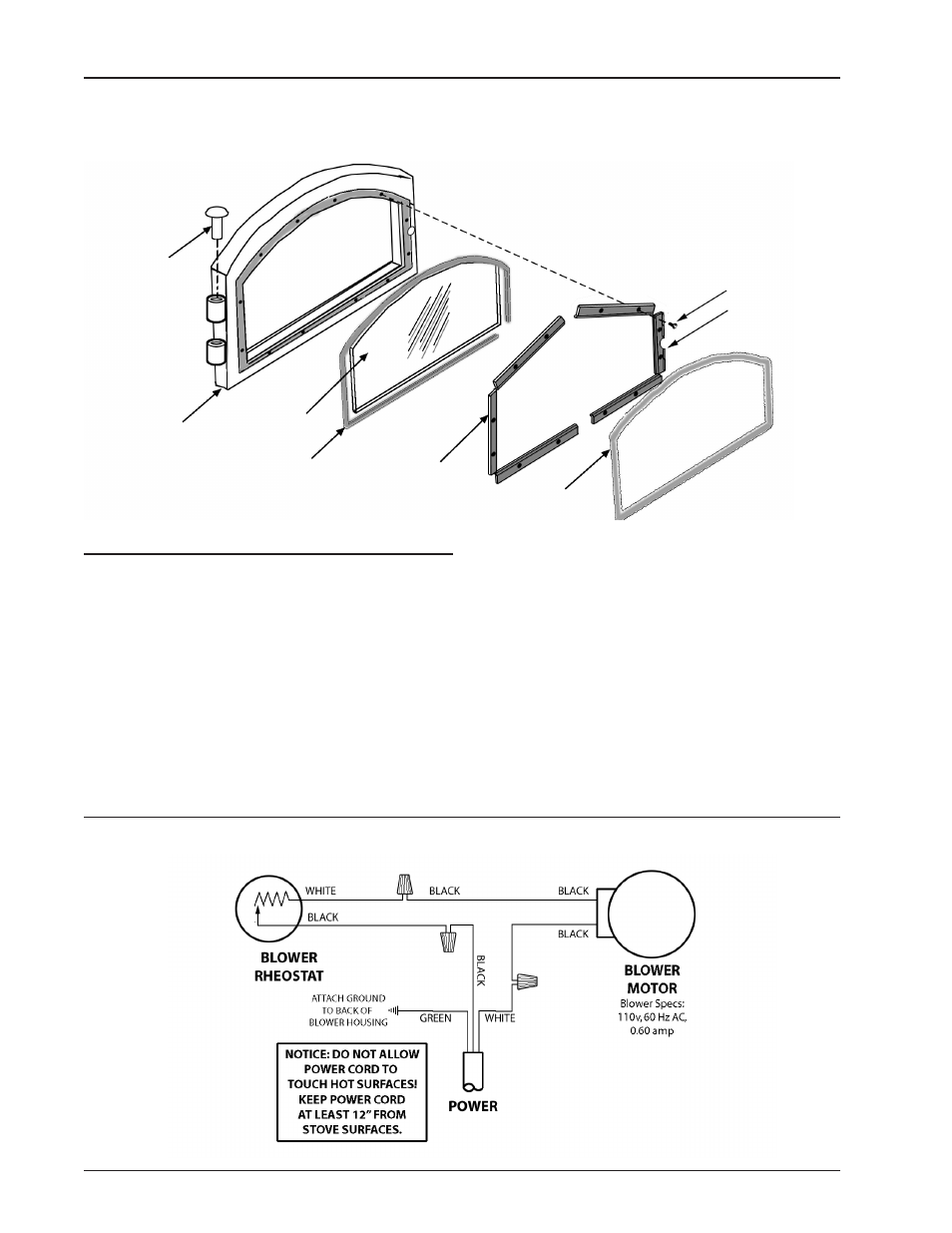

PARTS - TR004 COlONIAl hIGh-EFFICIENCY INSERT
When ordering missing or replacement parts, always give the model Number of the insert,
Part Number, and Part description. Use the illustrations and part lists provided to identify parts.
Contact us at 616-396-1911 to order parts.
24, 25, 26
27
28
29
32
33
30
WIRING dIAGRAm - COlONIAl F-5 blOWER
Ref. Part
No. No. Description qty.
24 04-24 Door Assembly (complete) .................... 1
25 04-25 Handle Assembly (complete) ............. 1
26 04-26 Door Frame (only) .............................. 1
27 04-27 Door Glass ......................................... 1
28 WG01 Gasket, 7/8˝ Fiberglass Glass ............ 1
29 04-29 Retainer, Glass ................................... 5
30 04-30 Screws, Glass Retainer ...................... 8
31 04-31 Retainer, Glass, Handle Side ............. 1
32 GK34 Gasket, Door ...................................... 1
33 04-33 Hinge Pin ............................................ 2
31
