Ins tallation and Conn ections

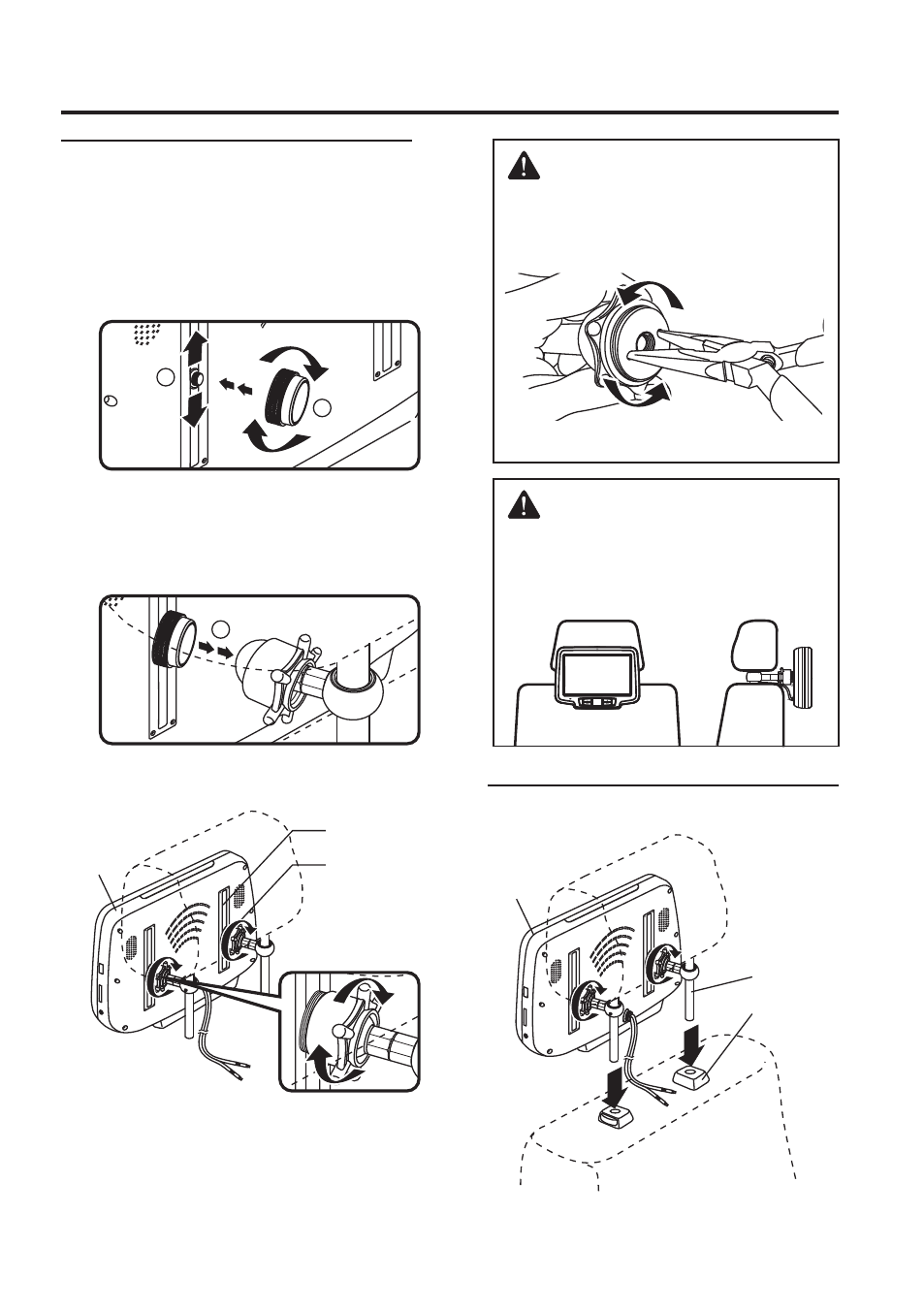

5 Installation or adjust the monitor
1) After positioning the slide bolt where you want,
then fixed to the slide bolt on the slide block by
tighten to the most. (Figure 5-1)
※
Please tighten the slide block as tight as
possible.
2) Tighten the knob to the appropriate tightness
(Figure 5-3) when the slide block sealed with the
ball (Figure 5-2).
3) You could adjust the height any time. The first,
you have to release the knobs and slide blocks
and repeat for step of this page.
CATION:
Konb
Slide Rail
Monitor
(Figure 5-3)
21
1
2
3
(Figure 5-1)
(Figure 5-2)
CATION:
If the slide block gets stuck with the knob, please
use pliers to remove it. (Figure 5-4) And reinstall
from step of this page.
(Figure 5-4)
6 Put the headrest back to the seat.
Monitor
Headrest stanchion
(Figure 6)
Buckle
CATION:
Recommend the best position of the Monitor.
We strongly recommend to position the monitor
in the middle of the head and seatback when you
install it.
