150mm
70mm
230mm

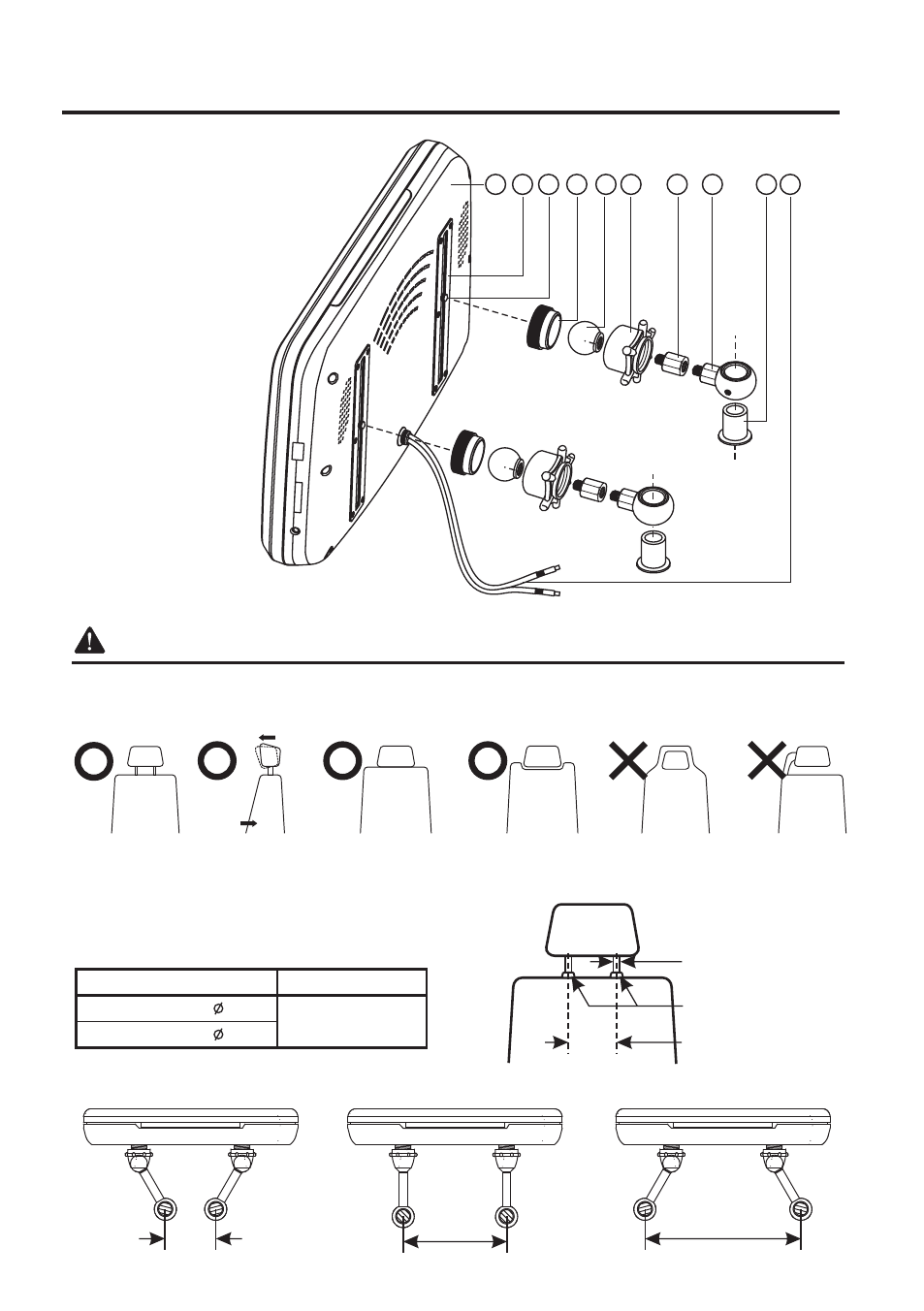

Ins tallation and Conn ections
● Stanchion Diameter & Distance :
Stanchion Diameter
JAPAN Regulation : 12mm
EURO Regulation : 15mm
*The stanchion diameter of other imported cars is
16.5mm
Stanchion Distance
70mm~230mm
Stanchion diameter
Buckle
Stanchion distance
Limitation
Before installation, please make sure that the shape of headrest is available for installation.
● Suitable seat for installation:
2-axles
headrest Movable
headrest Single-axle
headrest Integrated
headrest Level
seatback Concave
seatback
Universal stanchion mount can fits most cars headrest
stanchions with distance 70~230mm and stanchion
diameter 8~16.5mm.
Parts Indication
1. LCD Monitor
2. Slide Rail
3. Slide Bolt
4. Slide Block
5. Ball
6. Knob
7. Link
8. Slide Block Linkage
9. Stanchion Washer
10. Power Cable
19
9 8 7 6 5 4 3 2 1 10
