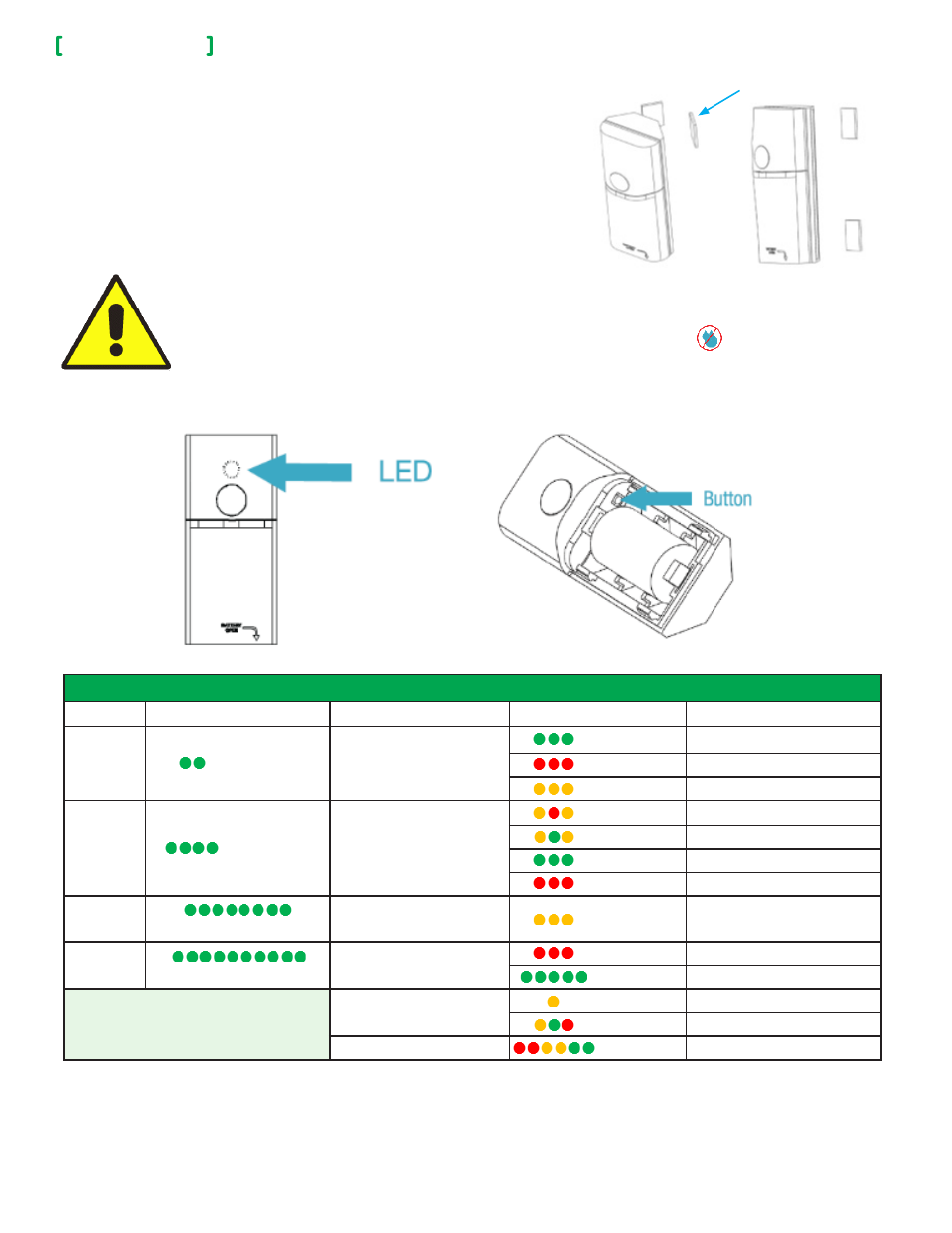

INSTALL MOTION SENSOR
This procedure shows you how to install the Motion Sensor to the desired
location. The Motion Sensor can be installed vertically, horizontally, or upside
down on a flat surface or in a corner.
1. Affix 2-sided tape to desired location (Figure 1).
2. NOTE: ensure tape is flush with surface and securely affixed to surface.
3. Set Motion Sensor on 2-sided tape and press firmly to secure Motion Sensor
in place.
4. Test Motion Sensor. Refer to "Device Function" on page 4.
DEVICE FUNCTION
Figure 1
• Always test Device before leaving job site.
• Avoid installing Device directly on metal surfaces. Installation on metal can reduce transmission range.
• Ensure Device is installed in dry location away from water, moisture, and rain.
Function and LED Indicators
BUTTON LED ACTION LED DESCRIPTION
2 times GG Network Status
GGG Joined
RRR Not Joined
YYY Re-Join in Process
4 Times GGGG Network Join
YRY Searching for Network
YGY Device Being Configured
GGG Device Joined
RRR Device Failed to Join
8 Times
GGGGGGGG
Forced Re-Join YYY Re-Join, Searching for Parent
10 Times
GGGGGGGGGG
Network leave and join a
new Network
RRR Leave if Joined
GGGGG Defaults Restored
G = Green
Y = Yellow
R = Red
No Action
Y Wrong Button Press
YGR Device Busy
Power Up RRYYGG
2-sided tape
