INSTALLATION
This procedure shows you how to install a Motion Sensor.
Complete the following steps (in order) to correctly install the Motion Sensor:
1. Install battery.
NOTE: When batteries are first installed, the sensor automatically goes into pairing mode. Refer to the
Room Controller pairing procedure for commissioning.
2. Remove plastic pull tab.
3. Verify device. Refer to "Verify Sensing Motion" on page 3.
4. Install Motion Sensor.
Location
Always consider the following location constraints before installing Motion Sensor:
1. Do not install on outside wall.
2. Do not install in areas with direct heat source.
3. Do not install near any air discharge grill.
4. Do not install in areas exposed to direct sunlight.
5. Ensure surface is flat and clean.
Sensor Placement

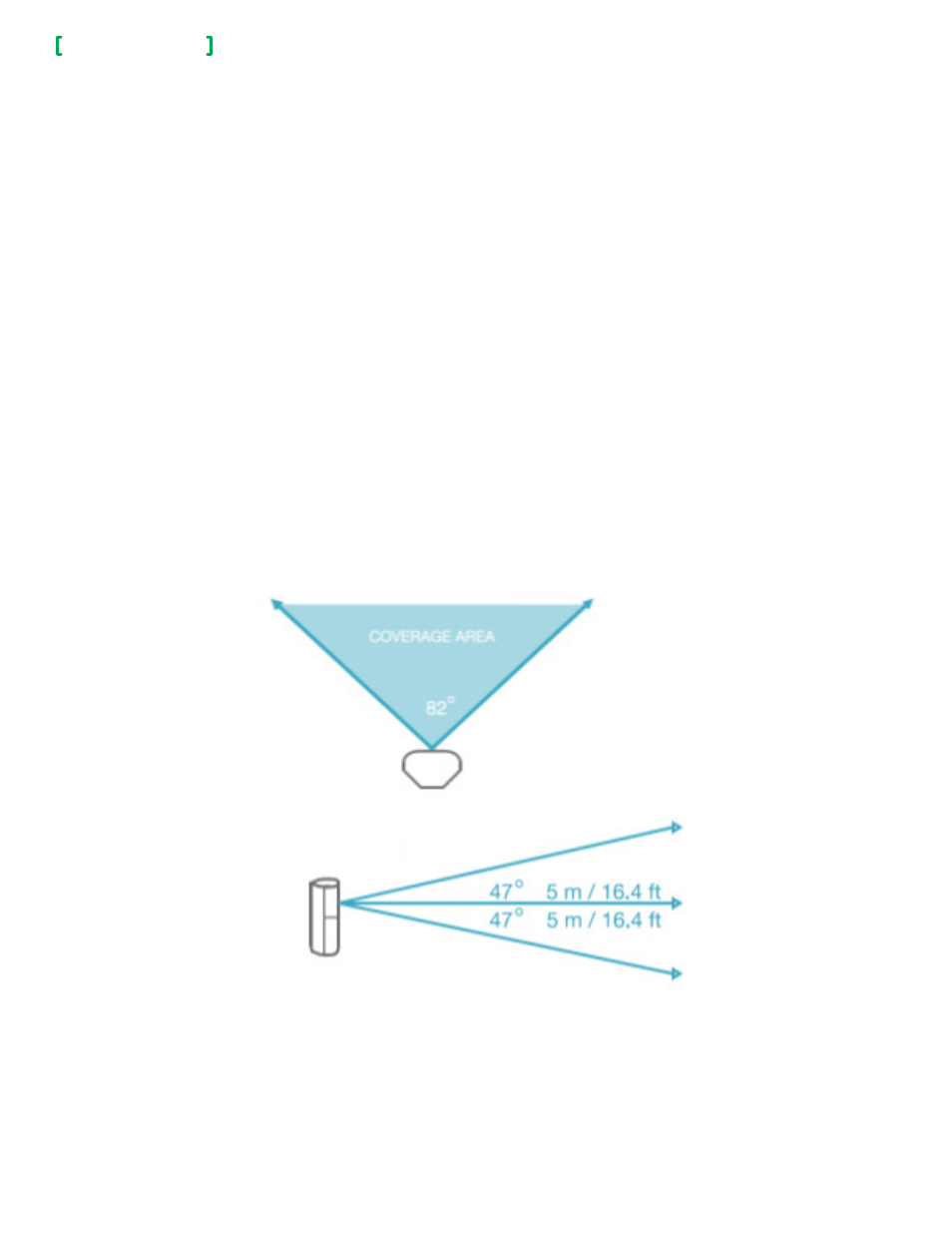

Orient Motion Sensor for best use of its detection zones according to below illustration.
* All Measurements are approximate.
Motion Sensor
Motion Sensor
