pControl
V. 1.00
after 2 sec
Esc
Switch on
Program menu
see section
”Working with the
controller” pg. 23
”Program menus”
1013mbar
Start
↵
Start of program
within
2 sec
within
2 sec
Device menu
• Readjustment
• RS 232 parameters
• Sound
• Units of pressure
• Auto start
• Lighting of display
• Language
• Time delay (not for VACUULAN)
• Control (only for RC 5/RC 6)
Function menu
Function
Cont.pum
Function
pControl
Esc
Esc
↵
Esc
only possible in ”vacuum control”
Notes on menu structure of the controller
Function menu:
• Setting of the basic function of the controller (only in ”vacuum control” (pControl)).
Device menu:
• Setting of the device specific features and the periphery of the controller.
- Readjustment: Adjusting the pressure transducer at atmospheric pressure and under vacuum, see
section „Readjustment“, pg. 29.
- RS 232 parameters: Setting of the interface parameters, see section „Interface parameters“, pg. 30.
- Sound: Switching the function ”acoustic warning signal” on/off.
- Pressure unit: Selection of the pressure unit mbar, Torr or hPa.
- Auto start: Process starts immediately after switching on the controller.
- Lighting: Setting of the lighting intensity of the display.
- Language: Selection of the language of the menus (English, German, French).
- Time delay: Delayed switching off of the coolant and the pump (not for VACUULAN)
- Control: Control of a valve or a pump via the IEC control line (only for RC5/RC6).
Program menu:
• Setting of the function specific parameters (e. g. preset pressure).
Attention: Depending on factory-set configurations, some menu options are not
active!
↵

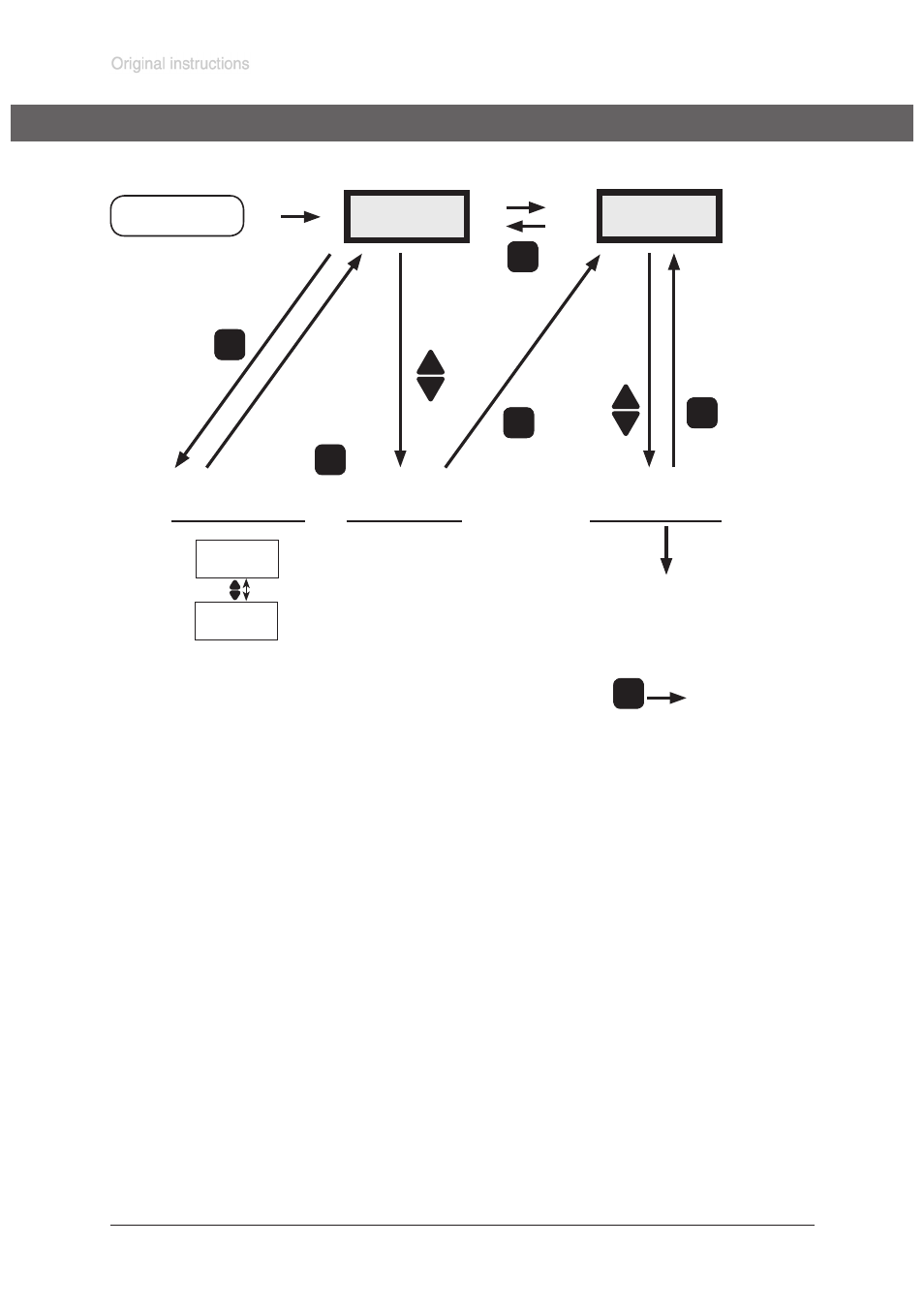

Menu structure of controller
