Selection knob
• Press to reach the set-up menu of the function
• Turn to choose the parameter you want to modify
• Press to select the parameter you want to modify
• Turn to change the set value of the parameter
• Press to confirm change of value and to reach further
parameters, or to leave the set-up menu
Notes on connecting and operating the controller
Valves and/or vacuum pumps are necessary to operate the control-
ler.
Without those components the controller can be used only as vacuum
measurement device.
When used as measurement device, the controller can switch a possibly
connected coolant valve.
The CVC 3000 is equipped with an internal capacitive pressure trans-
ducer with ceramic diaphragm. It measures the actual pressure indepen-
dently of the gas type, and with reference to the vacuum, i.e., absolute.
➨
Connect the measurement connection of the controller via hose or
PTFE tubing to the vacuum application, or connect an external pres-
sure transducer 3000 series. The cross-section of the tubing should
be as large as possible.

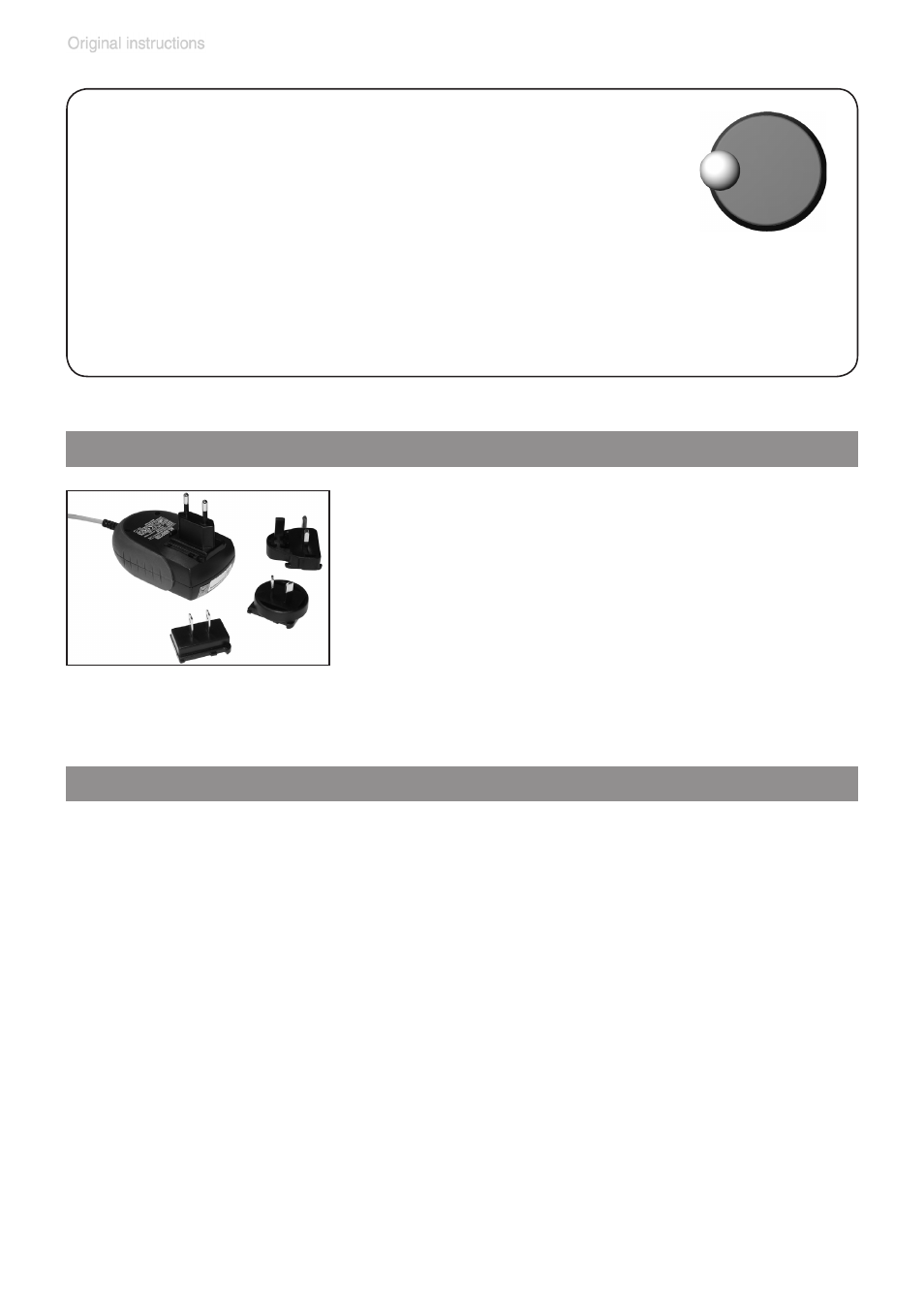

Assembling the country-specific power plug
+
The wall power supply is delivered with
power plugs for Europe, UK, US and Aus-
tralia.
+
Press the locking key at the wall power sup-
ply to remove and to replace the power plug
with your country-specific plug.
+
Assemble the suitable power plug to the
power supply and lock.
