For 230VAC Operation:
1) Insert/verify a 1 amp fuse is in the fuse holder.
2) Insert the fuse holder into the IEC connector housing so that the “230”
is correctly oriented and readable.
3) Insert the IEC power cord with the “Euro” plug into the IEC connector
and the AC mains source
4) Emergency Power Supply - Plug the power adapter16VAC plug into
the jack on the rear of the XTD.
5) Plug the power adapter into a stepdown transformer.
6) Insert the transformer/adapter into the AC main source.
FUSE 1A 250V
Main Power
115/230 VAC
50/60Hz, 40VA
Emergency
Bypass
Power
16VAC
500MA
115V
230V

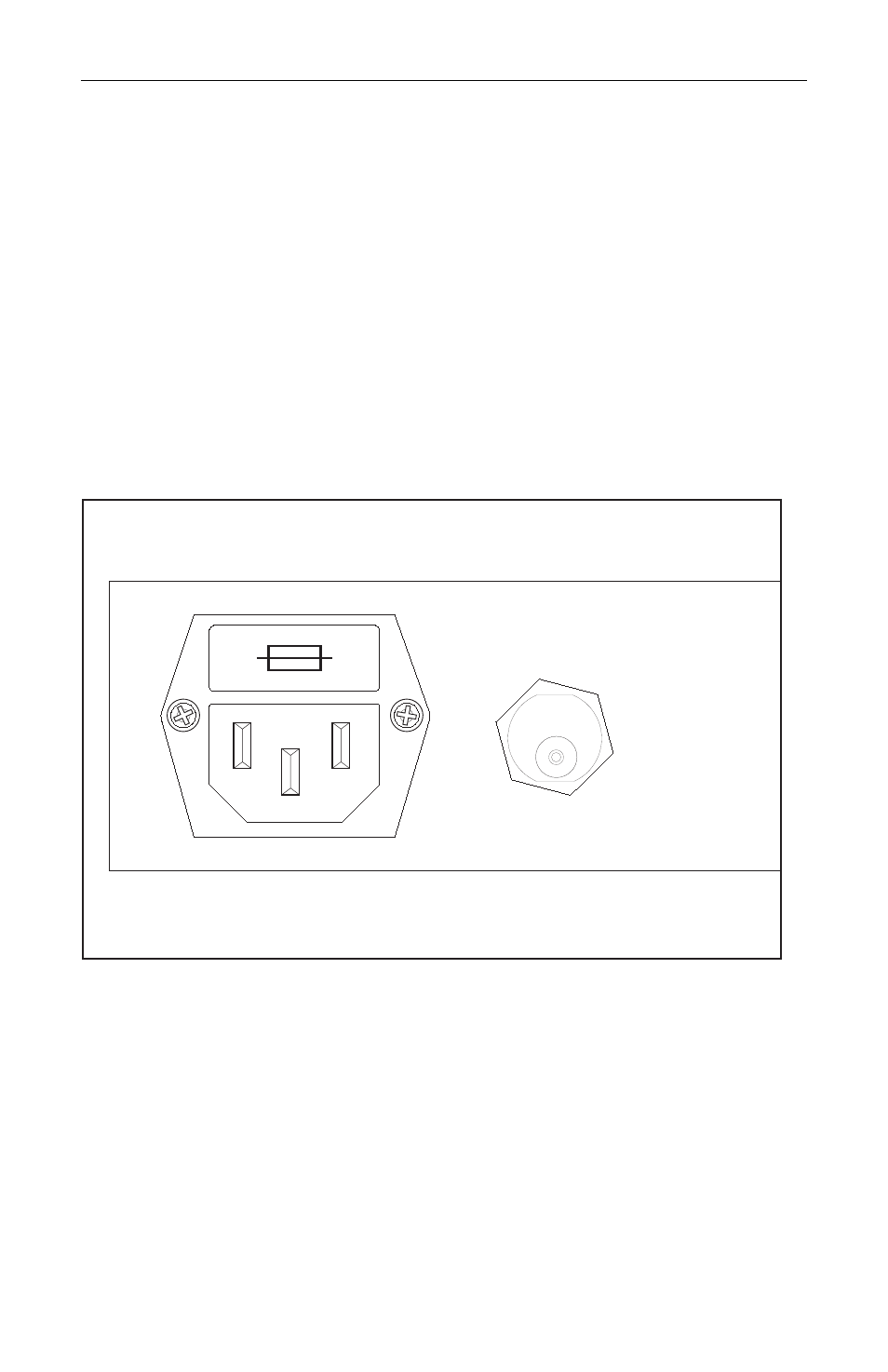

XTD-33 Power Connection
