Assembly Guide Axle Weighing Truck Scale
4
(when attaching, the brackets can be turned over so that the markings face inward).
Loosely bolt all brackets into position.
Recheck that all platforms are in correct position (a pry bar may be useful for making
small adjustments to the platform positions), and then securely tighten down all
brackets.
5. ATTACH THE FOUR RAMPS
Place the ramps into position and securely bolt down to the end platforms.
6. CHECK PLATFORMS FOR ROCKING
Check all weighing platforms for corner-to-corner rocking. Shim as needed.
7. LOOSEN AND ADJUST THE CHECKING BOLTS ON THE WEIGHING
PLATFORMS
Three checking bolts are located at the end of each weighing platform. These bolts
are tightened down for shipping.
In order for the scales to work properly, all checking bolts on all weighing
platforms must be adjusted after receiving the scale.

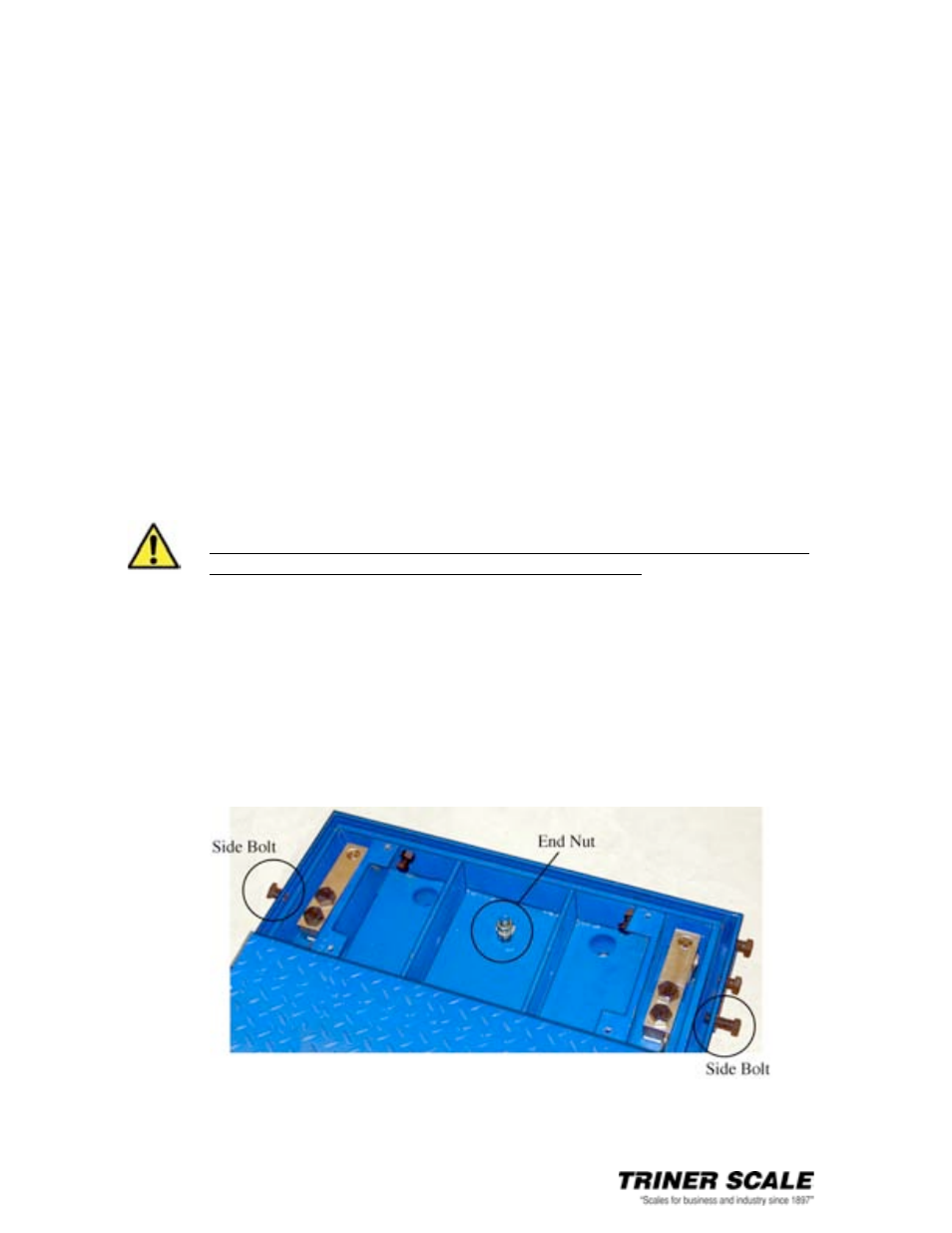

Adjust the checking bolts on each platform as follows: Using a #8 allen wrench,
remove all the weighing platform access panels. Referring to the diagram below:
• Back out the two side bolts, and adjust to a 1/2“ gap between the end of
the bolt and the internal frame.
• Back out the end nut, and adjust to 1/2” gap between the nut and the inner
frame floor.
• Replace all access panel covers and securely fasten.
IMPORTANT
