4

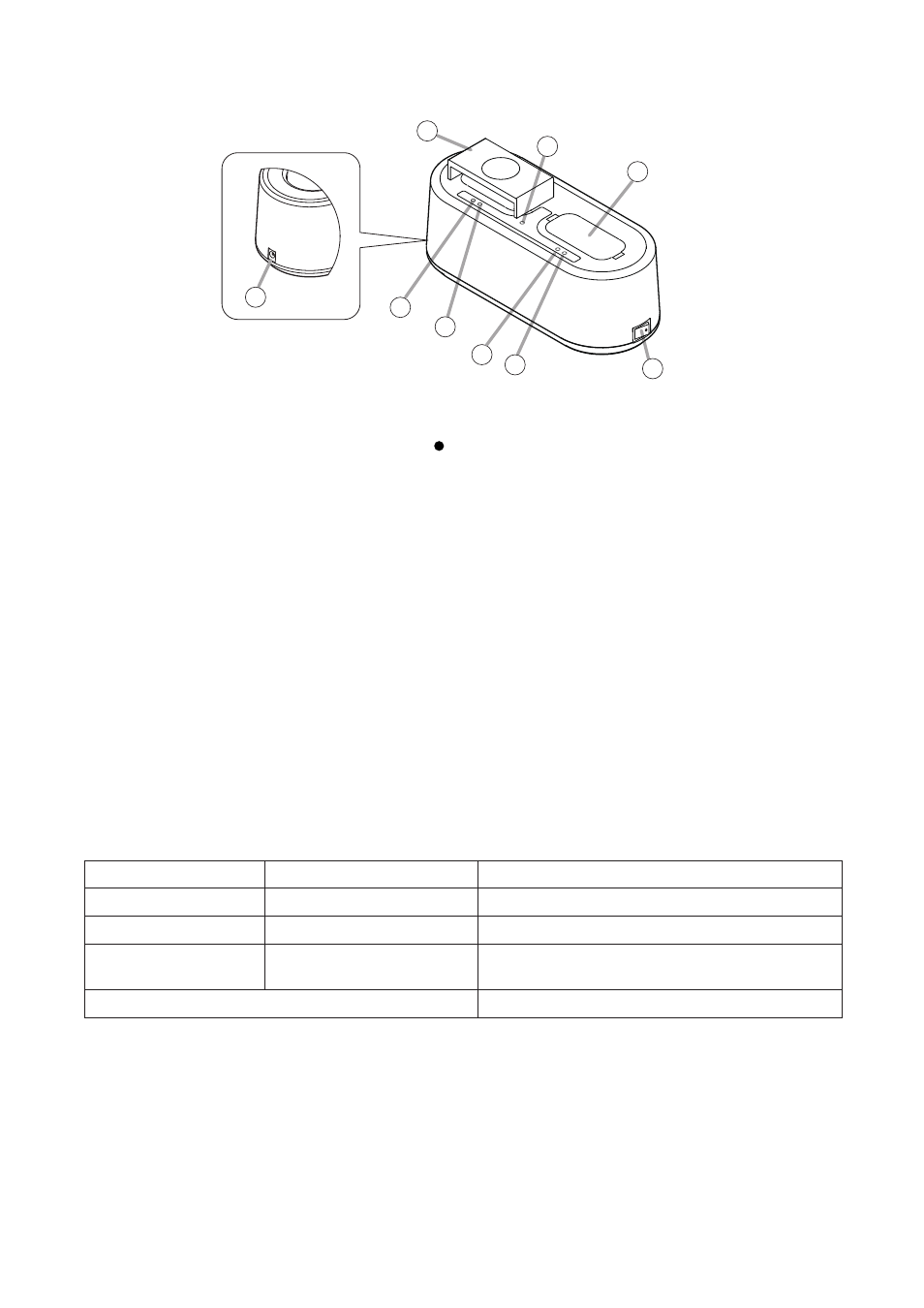

4. NOMENCLATURE AND FUNCTIONS
1. Power switch
To turn on the power, set this switch to the [ ]
position. To turn off the power, shift this switch
back.
2. Mounting Adapter
Used when charging the WM-5225 or WM-5265
Wireless Microphone.
Remove this adapter when charging the WM-5325
Wireless Transmitter or WT-5100 Portable
Receiver. (Refer to p. 5 "Charging.")
3. Power indicator
Lights when the power is switched on.
4. Rechargeable unit receptacle
Charging the WM-5225 or WM-5265 requires the
mounting adapter to be attached in the receptacle.
To charge the WM-5325 or WT-5100, insert it
directly into the receptacle.
5. Charging indicator
Lights red continuously while charging is in
progress.
6. Full-charge indicator
Lights green once the battery is fully charged.
7. Power input terminal
Connect the optional AD-5000-2 AC adapter to
this terminal.
1
2
3
4
5
7
6
6
5
Charging indicator (red)
Lit
Unlit
Flashing
Unlit
Lit
Unlit
Both indicators light alternately.
Charging in progress
Charging completed
Outside the operating temperature range
(refer to p. 7 "Troubleshooting.")
Charging failure (refer to p. 7 "Troubleshooting.")
Full-charge indicator (green) Status
[Indicator status table]
