6. INSTALLATION PRECAUTIONS

• The unit is designed for wall mounting. To secure ventilation, never install it in a horizontal or face-up

orientation.

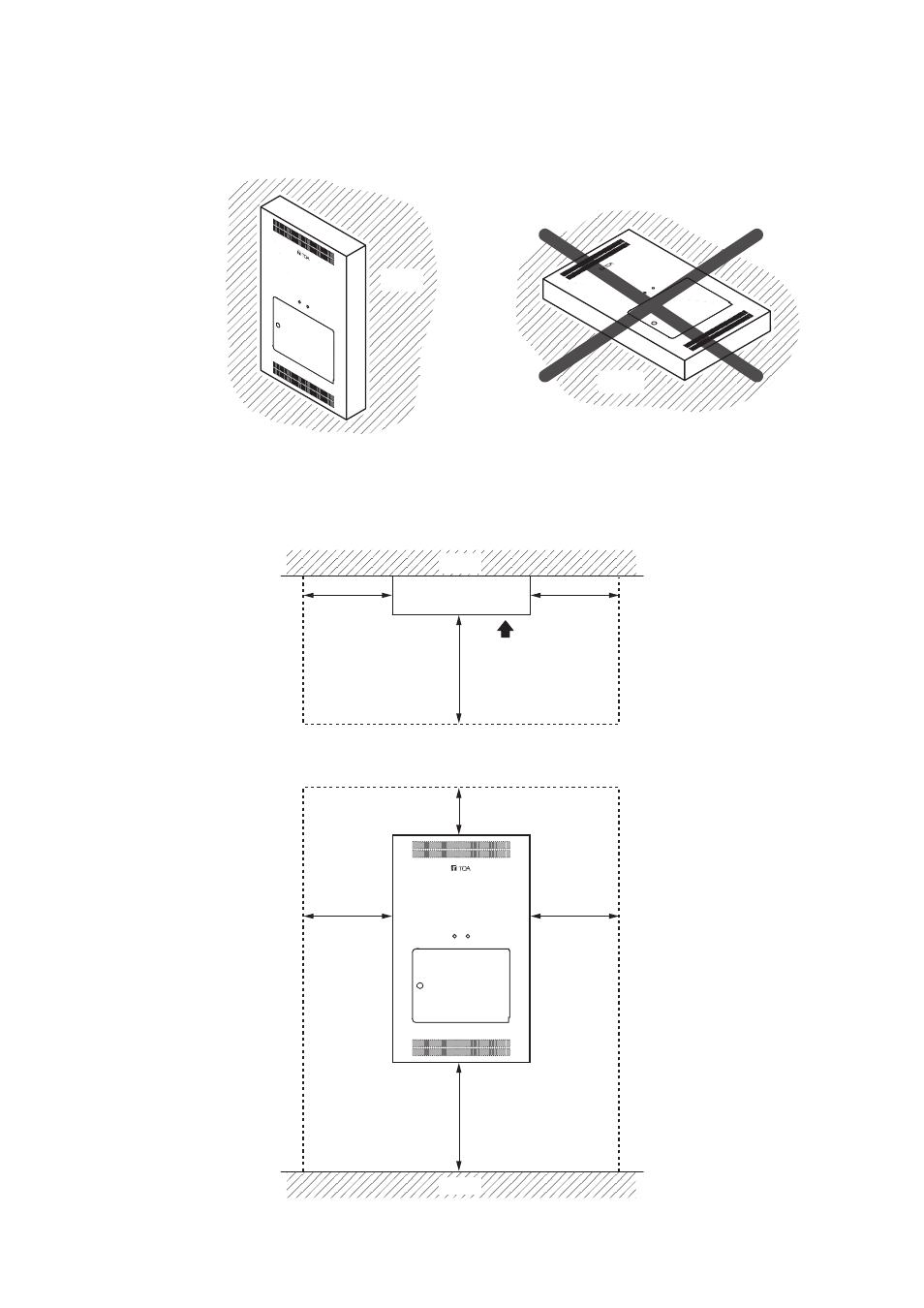

• To provide enough space for operation and ventilation, never place objects in areas shown in the figures

below.

Over 1 m

(39.37”)

Front

W-906A/912A

W-906A/912A

Wall

Floor

Over 30 cm

(11.81”)

Over 30 cm

(11.81”)

Height appropriate
for the operator

Over 15 cm (5.91”)

Over 30 cm

(11.81”)

Over 30 cm

(11.81”)

Floor

Wall

Correct
orientation
