10

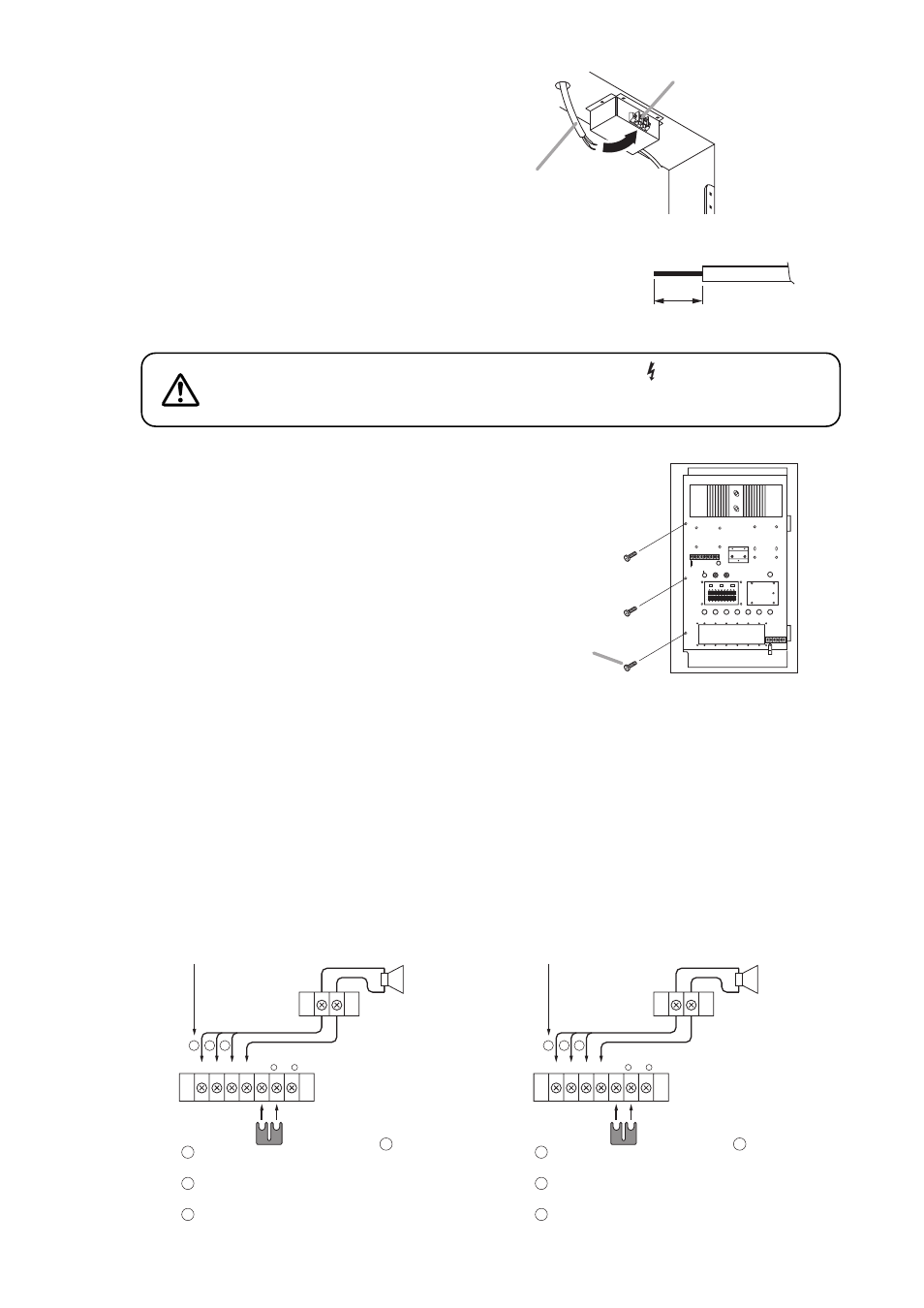

Step 5. Connect the speaker cable.

Connect the speaker cable to the speaker
output terminals on the junction box. Amplifier
output impedance may be selected at the
output terminals on the front panel.

[Speaker cable treatment]
Strip 10 mm (0.39") of insulative jacket from the cable end, as shown
in the figure at right.

Step 6. Fix the amplifier.

Secure the amplifier to the back box using the 3 supplied
M4 x 10 machine screws after connecting the power
cable and the speaker cables.
Note that the extra 2 out of 5 supplied screws are spare.

Step 7. Select output impedance.

Select appropriate output impedance that matches the speaker to be used.
Use Class 2 wiring.
The unit has 25 V and 70 V outputs for constant voltage speaker system and low impedance output
for 4 Ω and 8 Ω speaker loads. In these speaker outputs, only the 4 Ω output is a direct output while
other outputs are transformer outputs. Connect the speaker system to only one of the speaker
outputs. Refer to the following connection diagrams described for each model.

Note: Impedances indicated in the diagrams mean total speaker load impedance.

Speaker output terminals

Class 2 Wiring

Speaker cable

10 mm (0.39”)

The terminals marked with the symbol

are hazardous live.

The external wiring to these terminals requires installation by an
instructed person.

WARNING

Machine screw M4 x 10
(accessory)

INPUT 1

POWER

ON

250V 3A

250V 6A

OFF

OFF

MAX

INPUT 2

INPUT 3

AC FUSE

OFF

ON

LOW PASS

OFF

ON

HIGH PASS

OUT

63

125

250

500

1k

2k

4k

8k

16k

63

125

250

500

1k

2k

4k

8k

16k

IN

EQUALIZER

OUTPUT FUSE

COMPRESSOR

INPUT 4

INPUT 5

INPUT 6

MASTER

12

6

0

6

12

12

6

0

6

12

COM

25V

70V

OT

IN +

a

b

c

a

b

c

a

b

c

8 Ω
or
10.4 Ω (25 V line)
or
83 Ω (70 V line)

+

Insert jumper strip
between 4 Ω and OT IN

.

SPEAKER
OUTPUT

COM

25V

70V

OT

IN +

a

b

c

8 Ω
or
5.2 Ω (25 V line)
or
41 Ω (70 V line)

+

Insert jumper strip
between 4 Ω and OT IN

.

SPEAKER
OUTPUT

Change cable connection for required impedance
according to the speaker used.

Change cable connection for required impedance
according to the speaker used.

[W-906A]

[W-912A]
