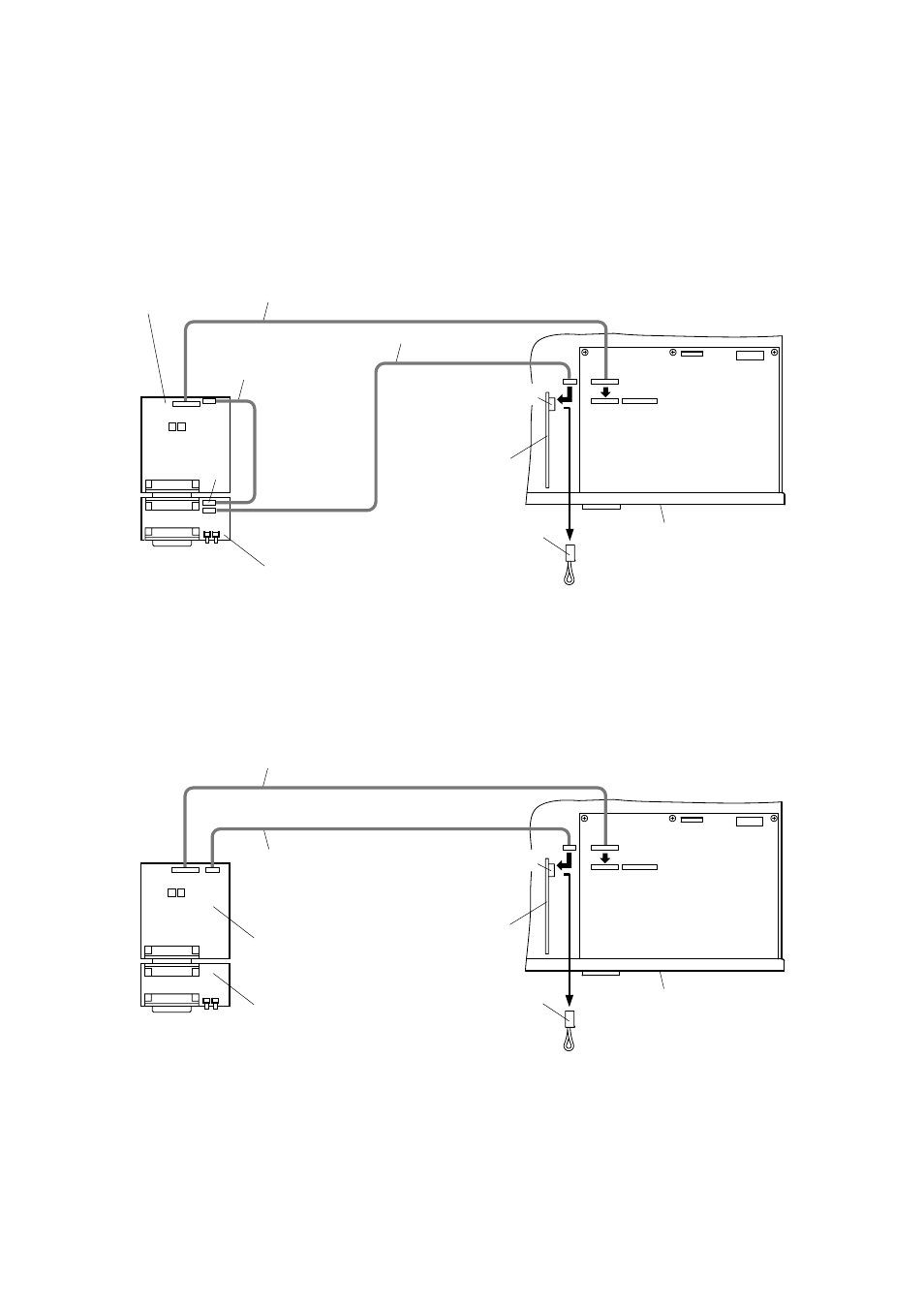

Step 6. Connect the SV-200MA board to the VM amplifier's boards with the connection cables.
[BGM/PAGE operation with backup amplifier function necessary]
6-1. Plug out the jumper connector from the VM relay board connector CN1003.
6-2. Plug out CN5 connector on the SV extension board, and plug it into CN1003 on the VM relay board.
6-3. Connect CN3 on the SV-200M board to CN5 on the SV extension board.
6-4. Connect CN1 on the SV-200M board to CN6 on the VM CPU board.
Rear panel
CN6 connection cable
CN1003 connection cable
Connection cable
CN8 CN6
SV-200M board
SV extension board
VM relay board
Jumper connector
6
-1
6
-2
6
-4
6
-3
CN1003
CN1 CN3
CN5
CN6
VM CPU board
[BGM/PAGE operation with backup amplifier function not necessary]
6-1. Plug out the jumper connector from the VM relay board connector CN1003.
6-2. Connect the 2 cables attached to the SV-200M board to the connectors in the VM amplifier's boards
as shown below.
Rear panel
CN6 connection cable
CN1003 connection cable
CN8 CN6
SV-200M board
SV extension board
VM relay board
Jumper connector
6
-1
6
-2
CN1003
CN1 CN3
VM CPU board
