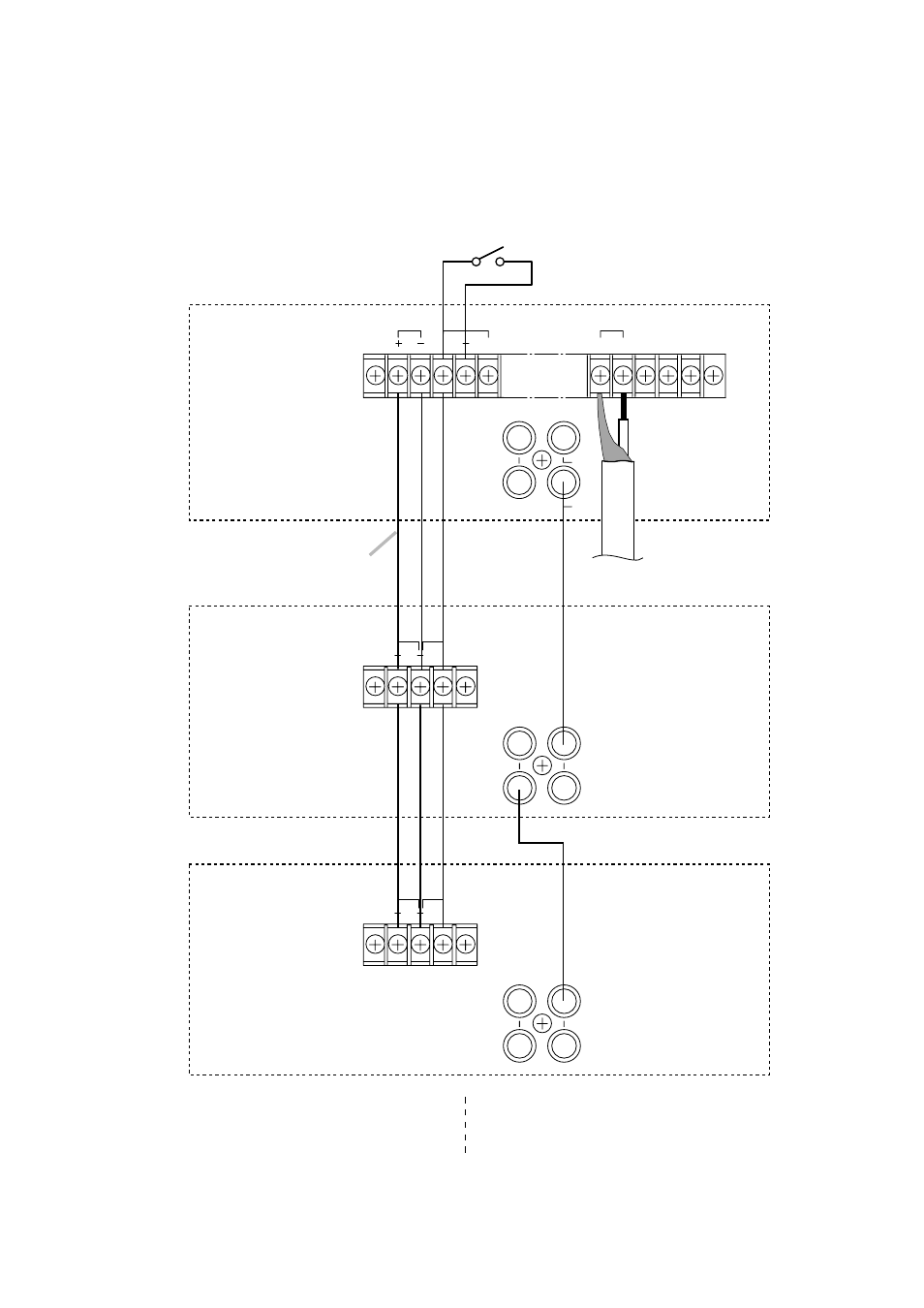

5.4. Emergency Input and Control Input Terminal Connections
A-1803
A-1806
A-1812
REMOTE OUT
CONTROL
EMERGENCY
REC OUT
LINE OUT
TEL
C
1
2
LINE OUT
LINE IN
H
EMER-
GENCY
REMOTE IN
CONTROL
EMER-
GENCY
P-1812
LINE OUT
LINE IN
REMOTE IN
CONTROL
EMER-
GENCY
P-1812
Connect this cable when requiring
remote power ON/OFF control.
While the Emergency control input terminals remain shorted, the power of all the connected A-1800 series
and P-1812s is turned on, and the A-1800's ZONE 1 and 2 speaker outputs are enabled, allowing only
Emergency input signals to go through bypassing the master volume control.
Opening the control input terminals automatically returns the muted signals to the original level.
