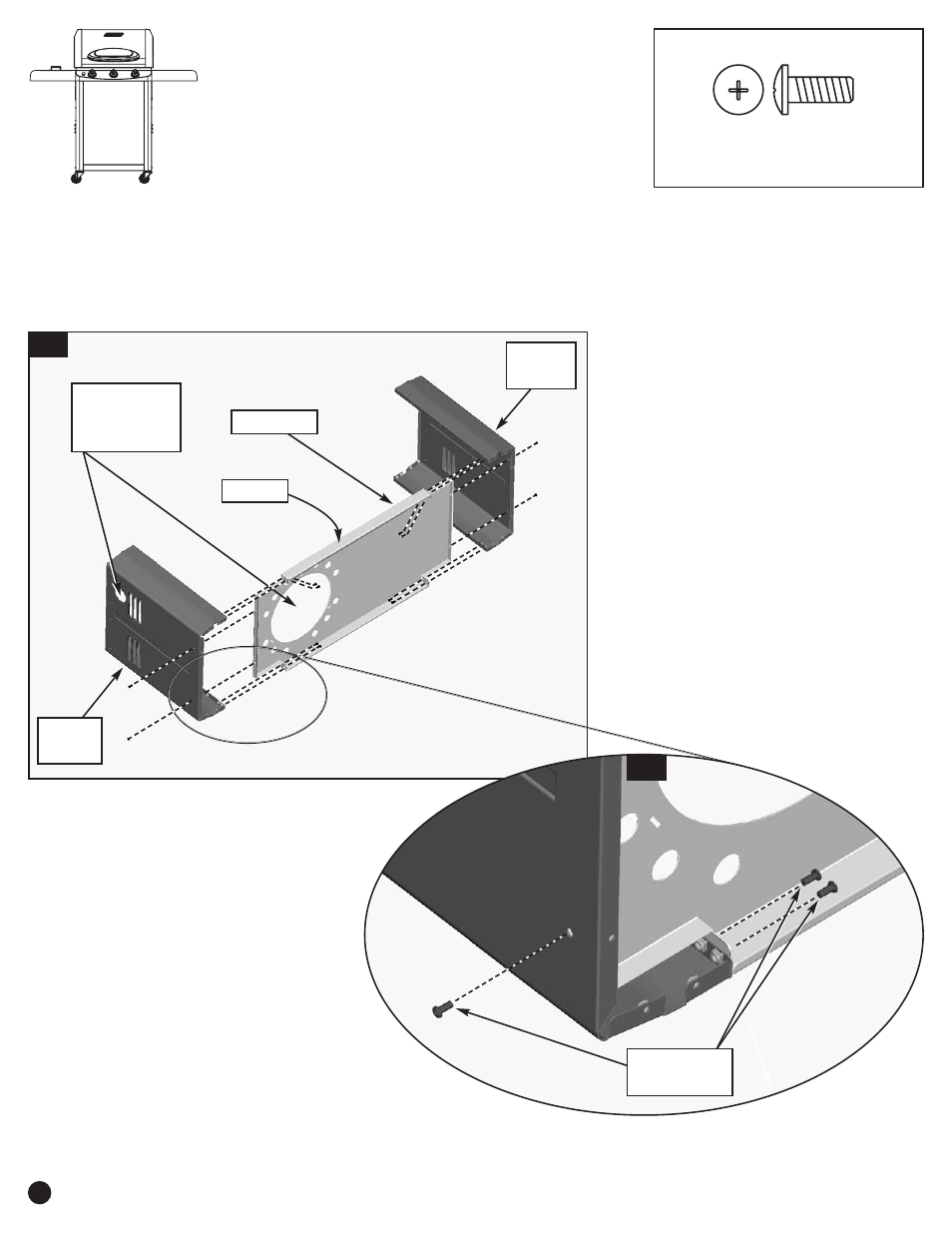

1-A. Arrange the two panels and the
base on the ground as shown.
Ц Ц LOOSELY assemble the Right
Panel and the Left Panel to the Grill
Base using three screws (TN) in
each corner (see Fig. 1-B).
Ц Ц Tighten all fasteners.
Ц Ц NOTE: Use a large piece of cardboard or a ground
cloth to protect the painted finish on the grill.
Ц Ц Assemble the Right Panel and the Left Panel to the
Grill Base.
Step
1
1-A
Base
Right
Panel
Left
Panel
8
(TN)
M6 x 15mm Screw
(12) Qty.
Hardware shown actual size
TN (x3)
Per Corner
1-B
Note Hole
Locations
in Panels
Front
