10-A
Hardware shown actual size
(XR)
M5 x 15mm Flat
Head Screw
(8) Qty.
Right Door
Step
10
(BW)
M5 Hex Nut
(2) Qty.
Left Door

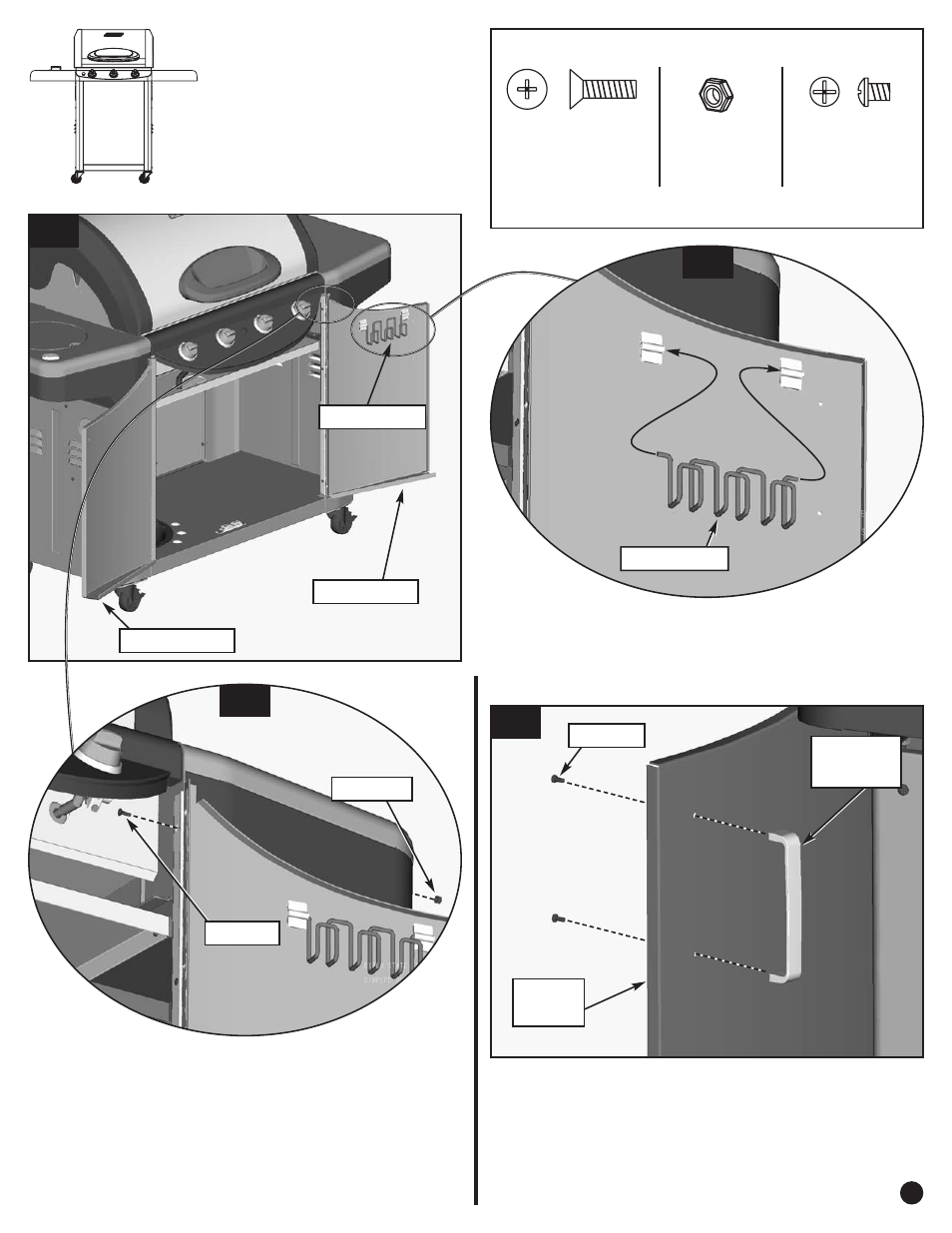

10-B. Fasten the Right Door to the Grill Cart with four Flat
Head Screws (XR). Use one Locking Hex Nut (BW) on
the top location only.
Ц Ц Repeat Step 10-B to attach the Left Door.
Ц Ц Tighten all fasteners.
10-B
XR (x4)
BW (x1)
10-C. Squeeze the Tool Hook to slip into the mounting
brackets.
10-C
Tool Hook
10-D
EZ (x2)
Right
Door
10-D. Fasten one Door Handle to the Right Door with two
Screws (EZ). Repeat Step 10-D to assemble one Door
Handle to the Left Door.
Ц Ц Tighten all fasteners.
Door
Handle
(EZ)
M4 X 5mm
Screw
(4) Qty.
Ц Ц Fasten both Left and Right
Doors to the Grill Cart.
Ц Ц Attach the Tool Hook to the
Right Door.
Ц Ц Fasten the Door Handles
to the Doors.
Ц Ц NOTE: M4 x 5mm Screws
(EZ) are factory installed
into the Handles.
19
Tool Hook
