Coleman 5310 User Manual

Page 11

  • Text mode
  • Original mode
background image

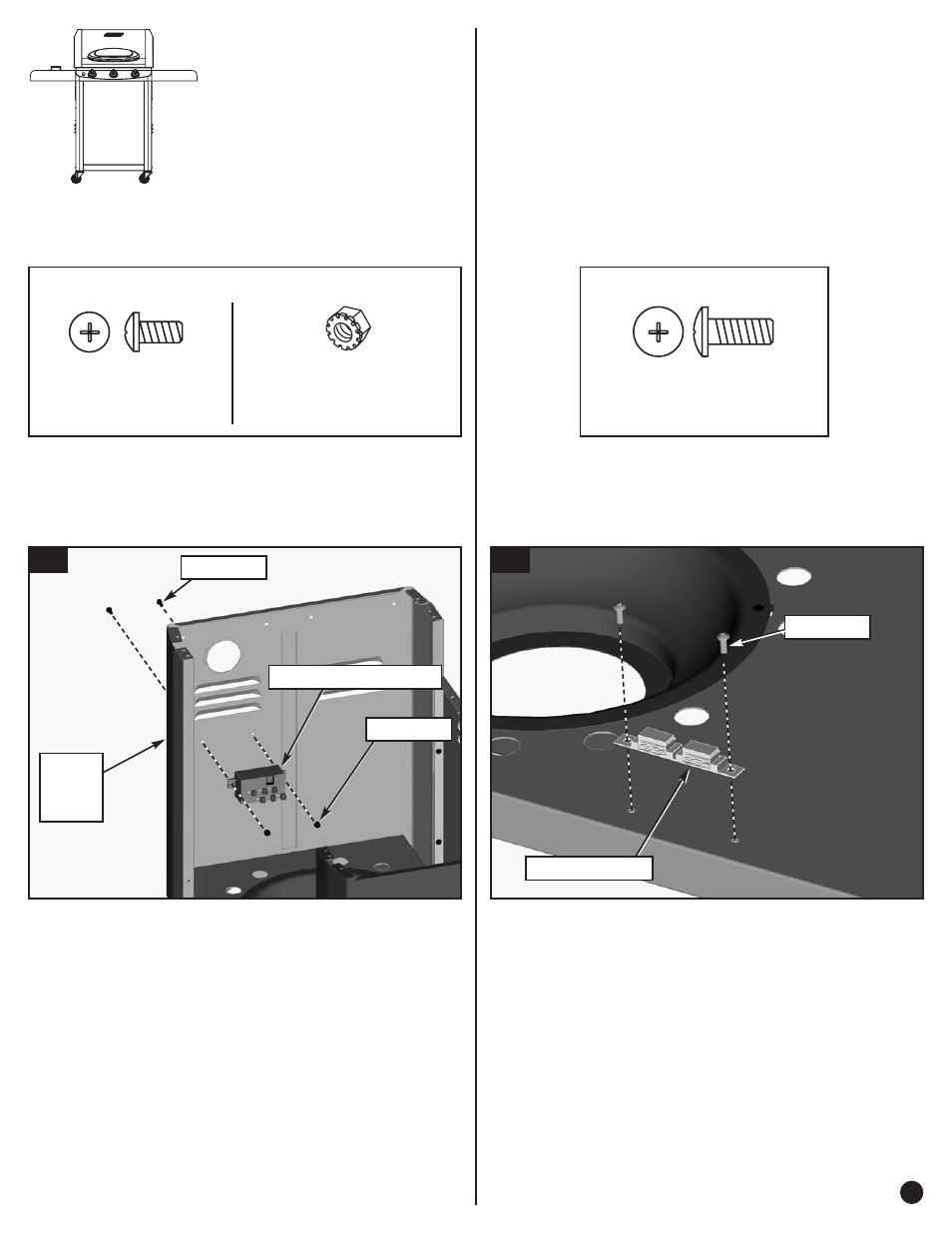

Hardware shown actual size

(BW)

M5 Locking Hex Nut

(2) Qty.

Step

4

(AV)

M5 x 10mm Screw

(2) Qty.

4-A

AV (x2)

BW (x2)

Electrode Module

Left

Side

Panel

4-A. Attach the Electrode Module to the Left Panel on the

inside surface. Use two screws (AV) and two locking hex
nuts (BW).

Ц

Ц

Attach Electrode Module.

Ц

Ц

Install Door Magnet.

4-B

4-B. Assemble one Door Magnet to the Base with two Screws

(TN).

Door Magnet

TN (x2)

Hardware shown actual size

(TN)

M6 x 15mm Screw

(2) Qty.

11
