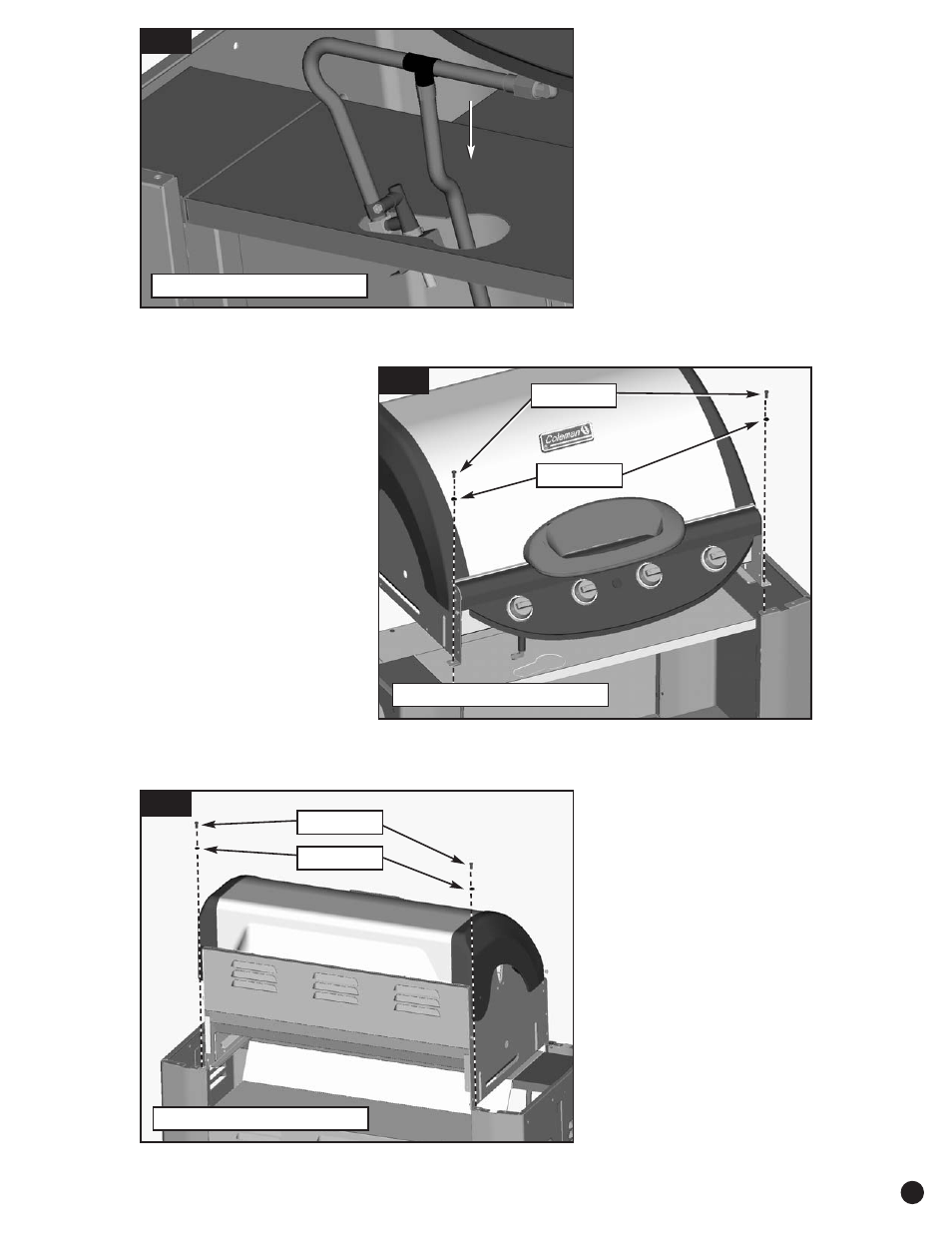

6-B. While lowering the Firebox, route the fuel hoses through

the large hole in the top panel.

6-B

View of Grill from Front

6-C

6-C. Fasten the front side of the Firebox to the Grill Cart with

two Flat Washers (DY) and two Screws (TN).

6-D

6-D. Fasten the back side of the Firebox to the Grill Cart with

two Flat Washers (DY) and two Screws (TN).

DY (x2)

TN (x2)

TN (x2)

DY (x2)

View of Grill from Rear

View of Grill from Front

13
