Install the Side Burner
Valve.

Ц

Ц

NOTE: On some models,
the M4 x 10mm Screws
(WQ) are pre-installed on
the bracket by the factory.

12-B

Side

Burner

Valve

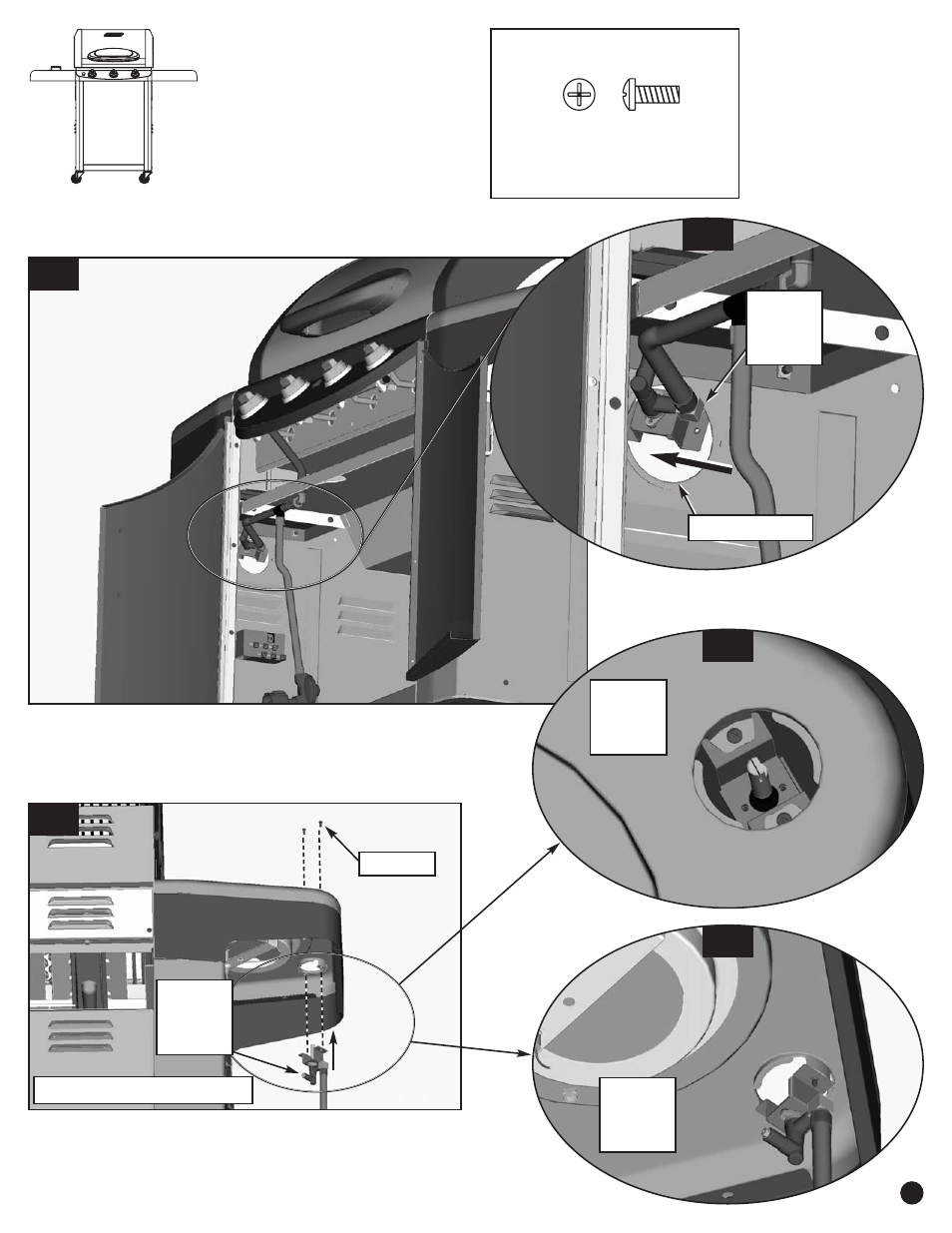

12-A. Route the Side Burner Valve through the Large Hole in

the Left Panel.

Large Hole

12-C

12-E

12-D

12-C. Attach the Side Burner Valve with two Screws (WQ).

WQ (x2)

View
from

Below

View From Back of Grill

View
from

Above

Step

12

Hardware shown actual size

(WQ)

M4 X 10mm Screw

(2) Qty.

Side

Burner

Valve

21
